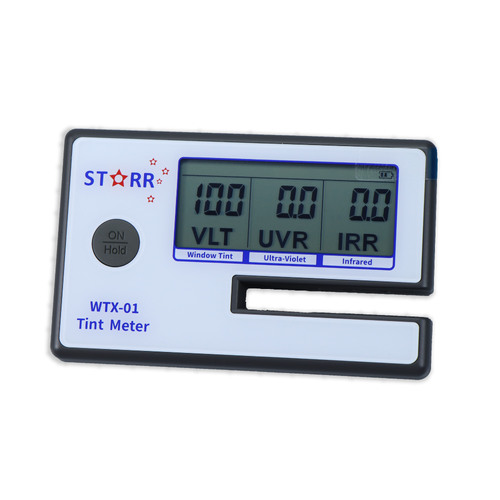

The Starr Instruments WTX-01 is an Accurate and Economical Window Tint Meter.

This Instrument is used to measure the Visable Light Transmittance (VLT), alongside the Ultraviolet and Infrared Blocking Rate. All three of these measurements are taken simultaneously and display instantly.

Often used in the automotive field, the WTX-01 is perfect for checking the legality of window tint on vehicles.

An opening of 8mm gives this gauge the ability to test on almost all films and windows.

Despite being slim and portable, the WTX-01 offers incredibly accurate and repeatable results, thanks to its internal calibration and 0.1% resolution.



FEATURES:

  • Instantaneous Test Results
  • Built-In Self Calibration
  • Simultaneous Testing of Visable Light, Ultraviolet and Infrared Blocking Rates
  • Simple Interface allows for easy use
  • Small portable design ensures ultimate accessability



SPECIFICATIONS:

Measurement Range

0 - 100%

Thickness Range

0 - 8mm

Resolution

0.1%

Accuracy

±2%

VLT Wavelength

380nm - 760nm (Conforms to CIE)

UV Peak Wavelength

365nm

IR Peak Wavelength

940nm / 1400nm

Display

Segment LCD

Power Supply

4 x AAA alkaline battery (Included)

Dimensions

120 x 75 x 25 mm

Weight

165 grams





(WTX-01)

SKU WTX-01
Brand STARR INSTRUMENTS by Test-Equip
