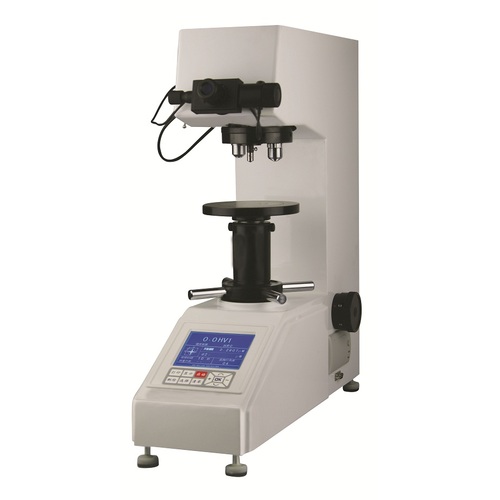

THV Series Vickers scale Hardness Testers is bench mounted for highly accurate, repeatable testing on materials where it is not a preference to make a large indentation.

The THV series can measure in regular Vickers (HV), Micro Vickers (HMV) and Knoop (HK) with direct conversion to a variety of other scales including Rockwell and others1.

All models feature a digital display and user interface with an automatic testing phase - loading/dwell/unloading.

There are options to include an automatic turret features which rotates from indenter to measurement after test phase is complete.

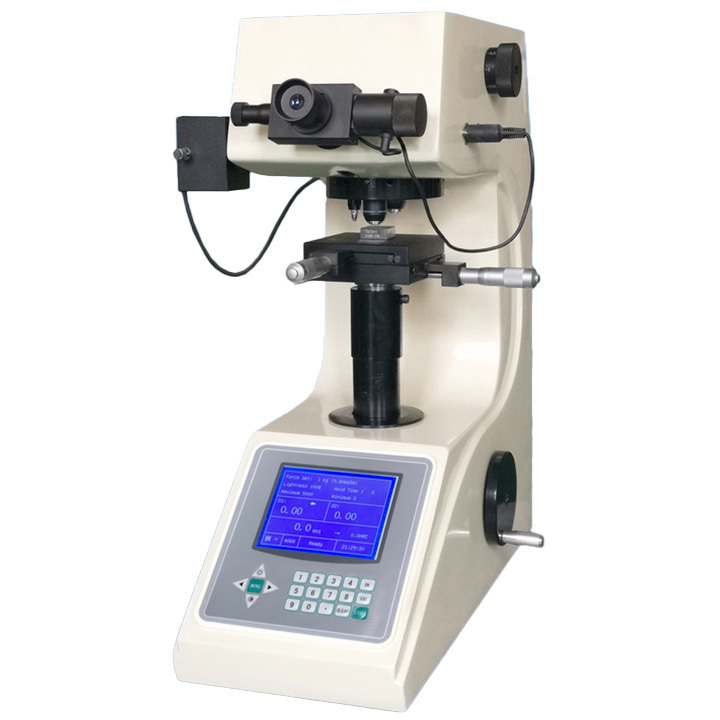

You can also choose models with manual or autoamtic X-Y co-ordinate measurement.

Test load weights from 1Kgf to 50Kgf are possible for Macro Vickers; and down to as little as 10 grams with the Micro Vickers units.


Please contact us to discuss your application and find the best solution for you.



  • Digital LCD screen with keyboard menu operation
  • Conversion between different hardness scales1
  • Vickers and Knoop indenters included as standard
  • Set of test blocks for calibration check & adjustment
  • Automatically save & transfer test data including Average, Min./Max.1
  • Accuracy to ASTM E384, E92, ISO 6507, 9385 and 4546 standard



Model Series THV-1/10/30/50
Test Load Range 0.01Kgf ~ 50Kgf
Auto load & release
Dwell Time 0~60 seconds (adjustable)
Max. Specimen Height 160mm
Max. Specimen Depth 135mm
Hardness Scales HV, HK. Conversion to others
Hardness Measuring Range HV8 ~ 2900
Conversion Scales Rockwell, Brinell, Vickers
Data Output D1/D2/HV and HK hardness value/Test times
Dimensions 520 × 190 × 650mm
Weight 40Kg approx.


1. Applicable to -D and -MD auto versions only.
