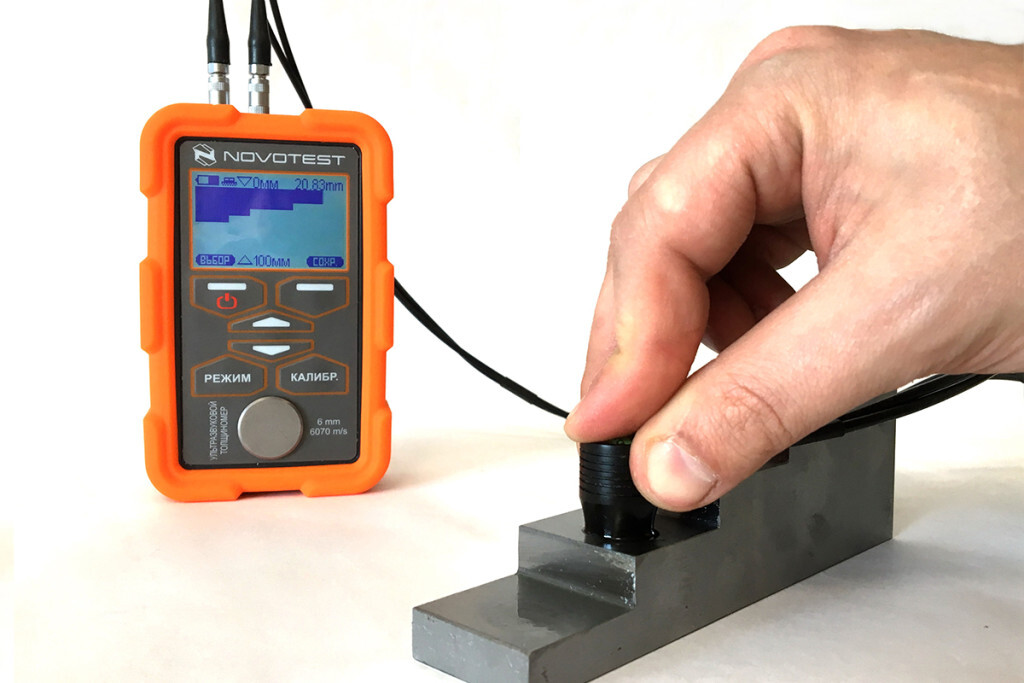

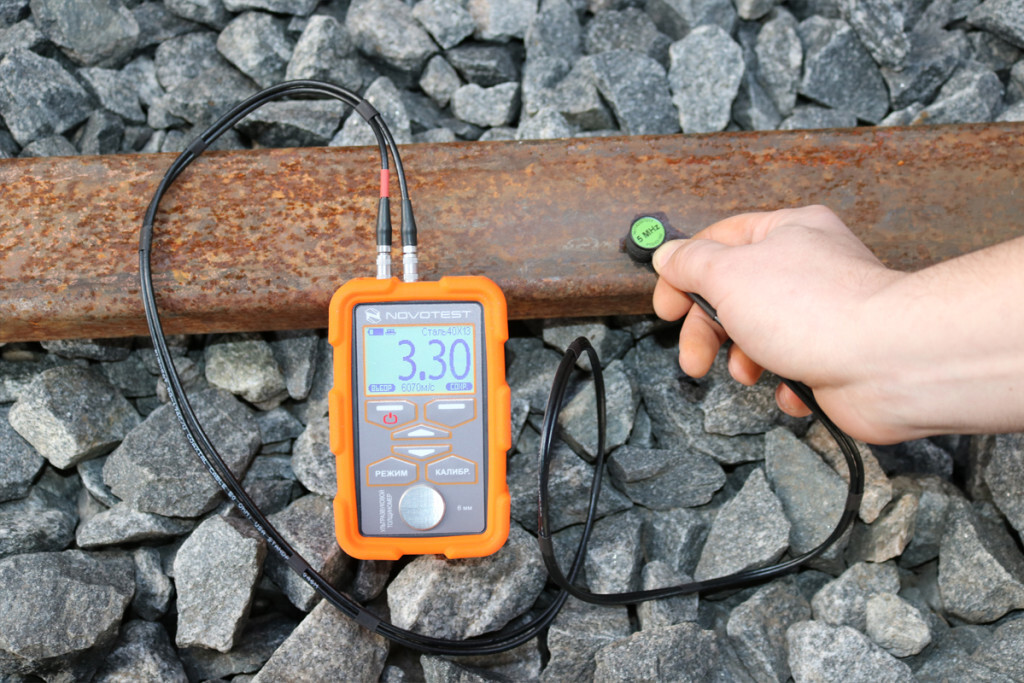

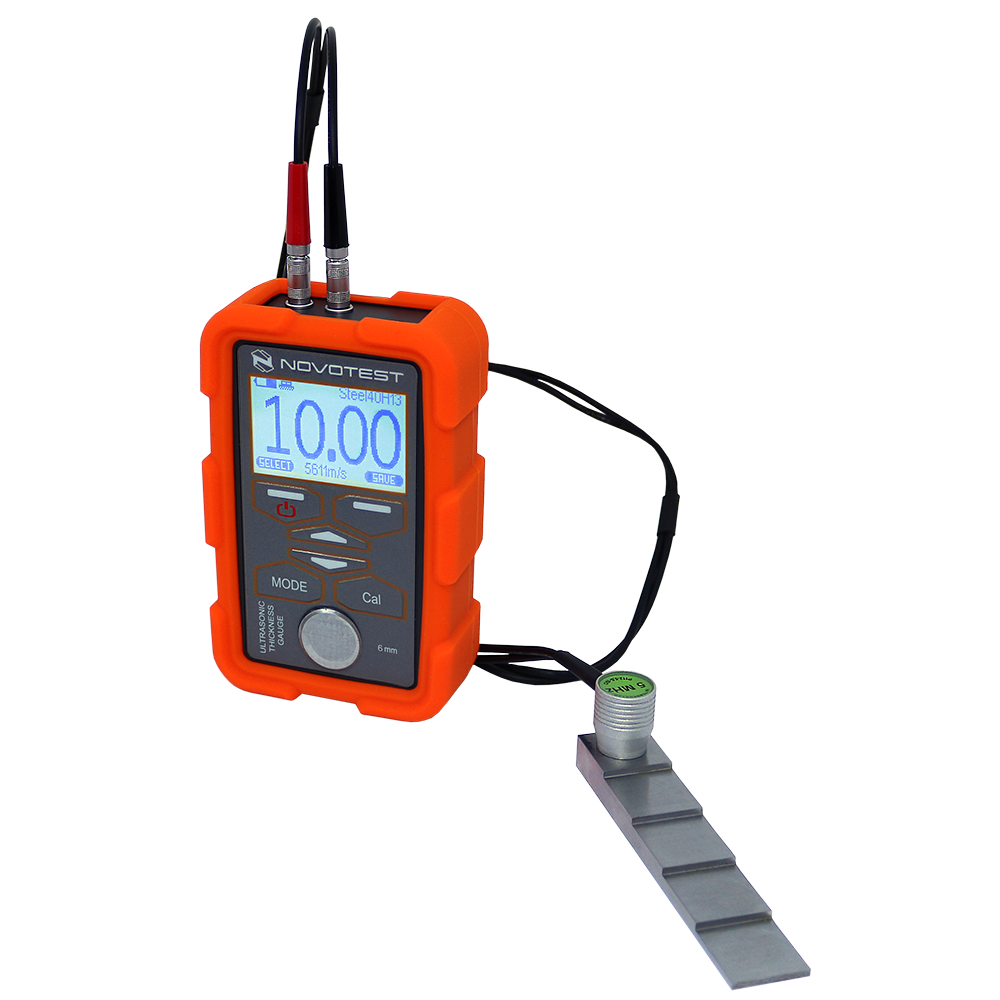

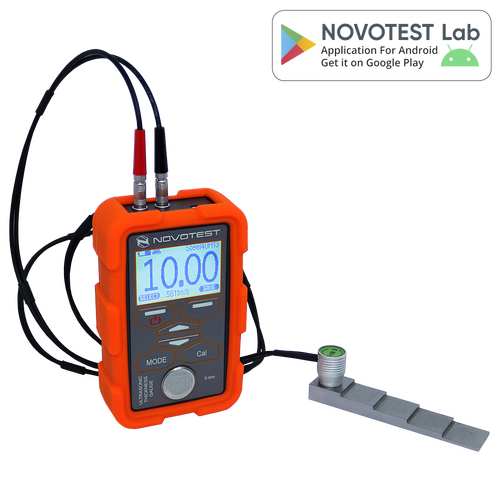

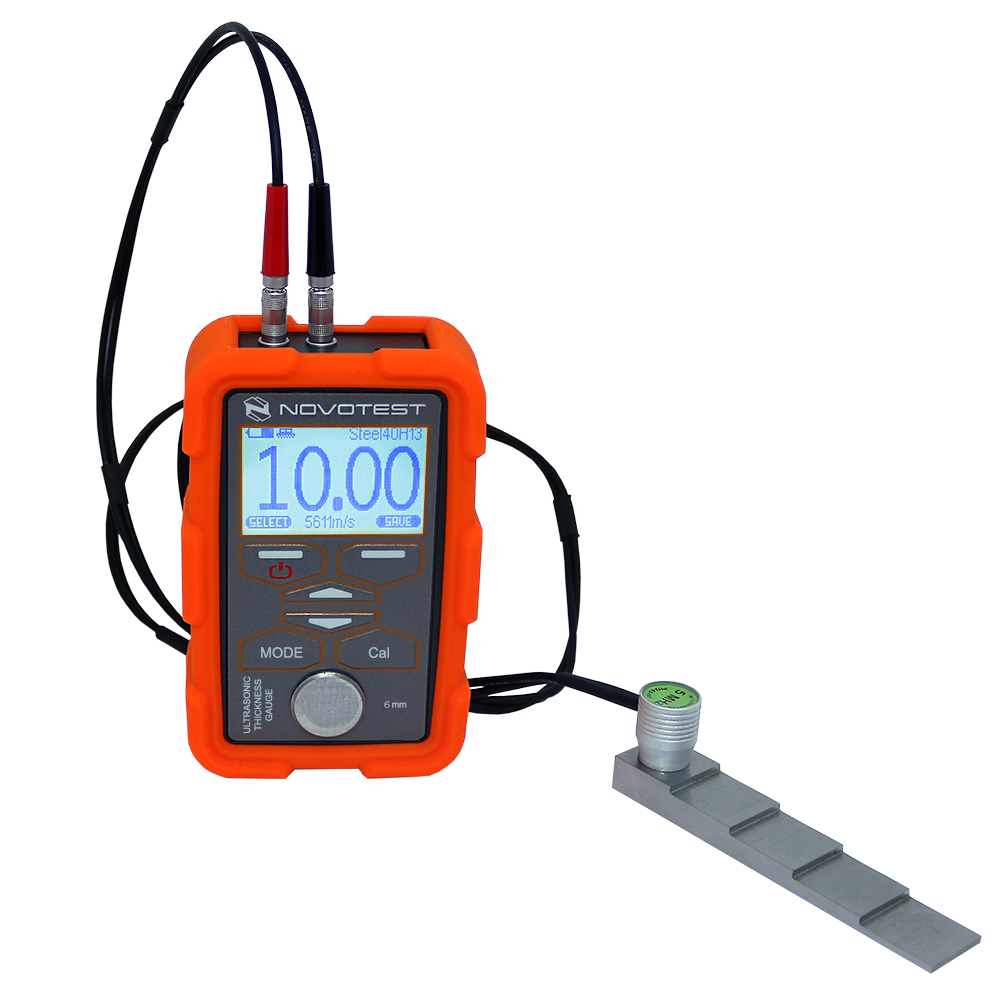

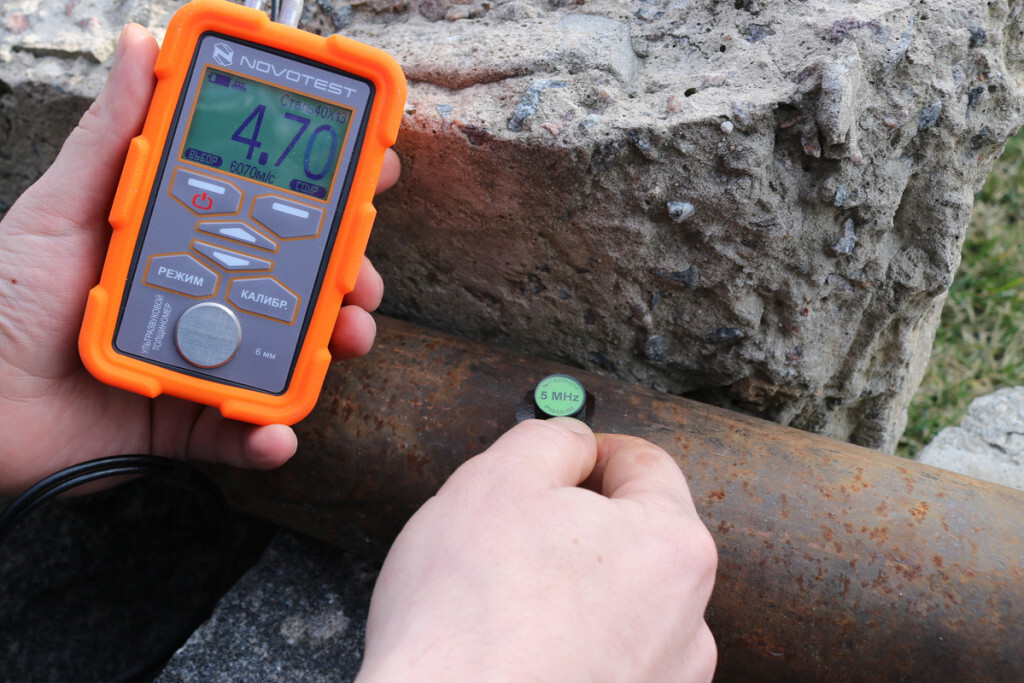

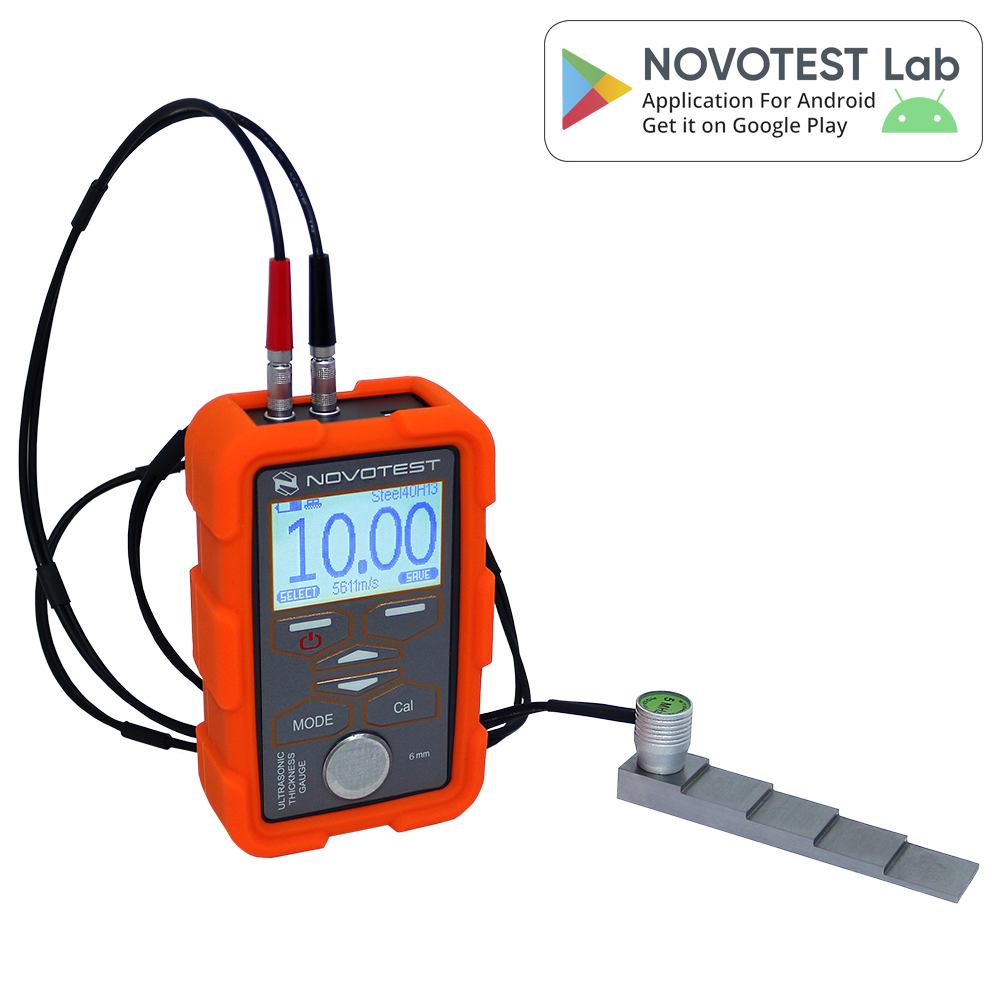

Ultrasonic Thickness Gauge NOVOTEST UT-1M is used for operational non-destructive testing of the thickness of products with one-way access, at the moment this method is the most common in the world for solving such tasks. The device allows user to record the measurement results in the archive of the device, and subsequently transfer them to a PC using special software

To measure products in a wide range with one transducer, unlike most similar devices, the Ultrasonic Thickness Gauge NOVOTEST UT-1M has a gain control function, which allows operator, for example, with a 5 MHz transducer, to measure steel products in the range even from 0.5 and up to 500 mm and more. Using other probes the full measurement range is up to 1500 mm for steel.

To visualize the product profile, if necessary not only point measurement, but also scanning, a B-scan is implemented in the device, which allows the user to visually see thinning and thickening of the wall of the testing object.

Also, for ease of use, the device has an automatic defect alarm function, its meaning is that the operator can select boundary thickness values ​​(minimum and maximum) when crossing the values ​​of which the device will signal through the speaker, and also give a visual signal.

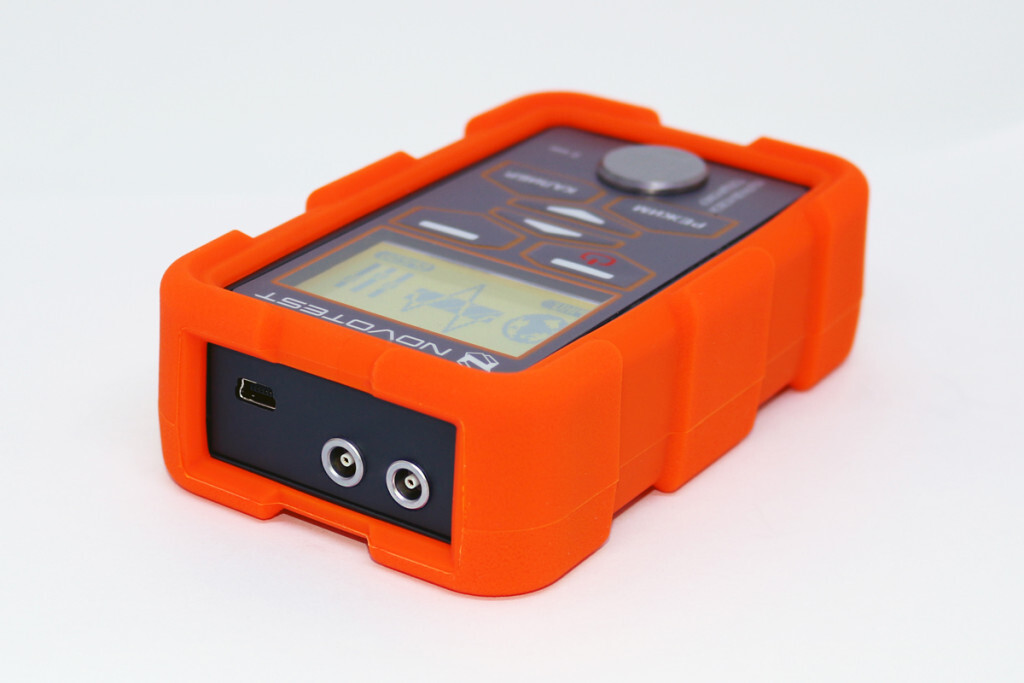

Ultrasonic Thickness Gauge NOVOTEST UT-1M is made in an ergonomic shockproof case, the silicone cover of which prevents the device from malfunctioning in case of a dropped down to floor or ground. Also, the device can be used in extreme climatic conditions, the temperature range of operating conditions is from -20°С to +50°С.


Standard Kit includes:

  • Electronic unit
  • 5MHz transducer probe
  • Calibration block (integrated)
  • USB cable
  • Charger
  • Calibration certificate
  • Operation manual
  • Case
