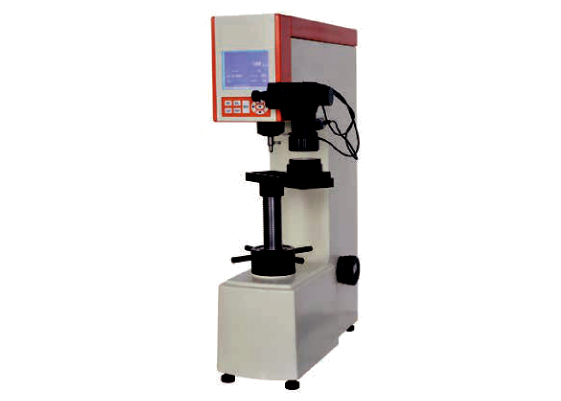

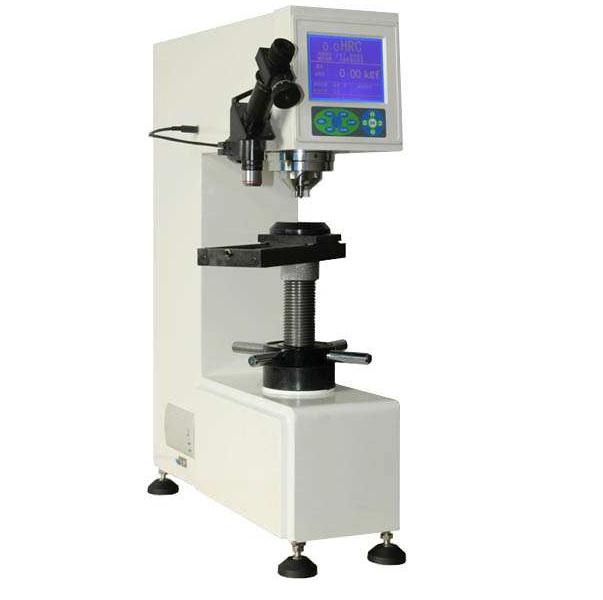

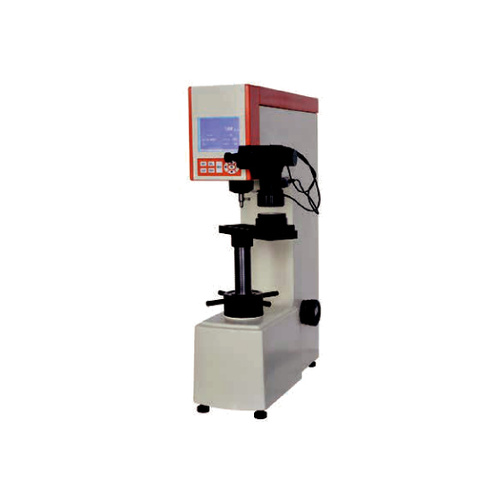

Digital Universal type metal hardness tester for Brinell, Rockwell & Vickers measurement.

With an intuitive user interface, large LCD panel and closed-loop control system, it makes hardness testing simple to set-up and the semi automatic operation makes it a powerful digital hardness testing machine.

It provides reliable Brinell, Rockwell, Vickers testing methods with different testing forces and indenters. Large LCD display shows stable and accurate results. Conversion scales of different kinds of hardness. It is also equipped with an RS232 interface for raw data output and a built-in mini printer.

Conforms to the following test standards: GB/T 230.2, GB/T 231.2, GB/T 4340.2, ISO6508-2, ISO6507-2, ISO6506-2, ASTM E18, ASTM E10 and ASTM E92



  • 0.1HR display resolution
  • Conversion to other hardness scales
  • Adjustable dwell time 1~60 seconds
  • Setting of time and date
  • Data memeory and printing function
  • RS232 interface for optional functions




Brand Time
Shipping Weight 90.0000kg
Shipping Width 0.400m
Shipping Height 0.800m
Shipping Length 0.600m
Shipping Cubic 0.192000000m3
