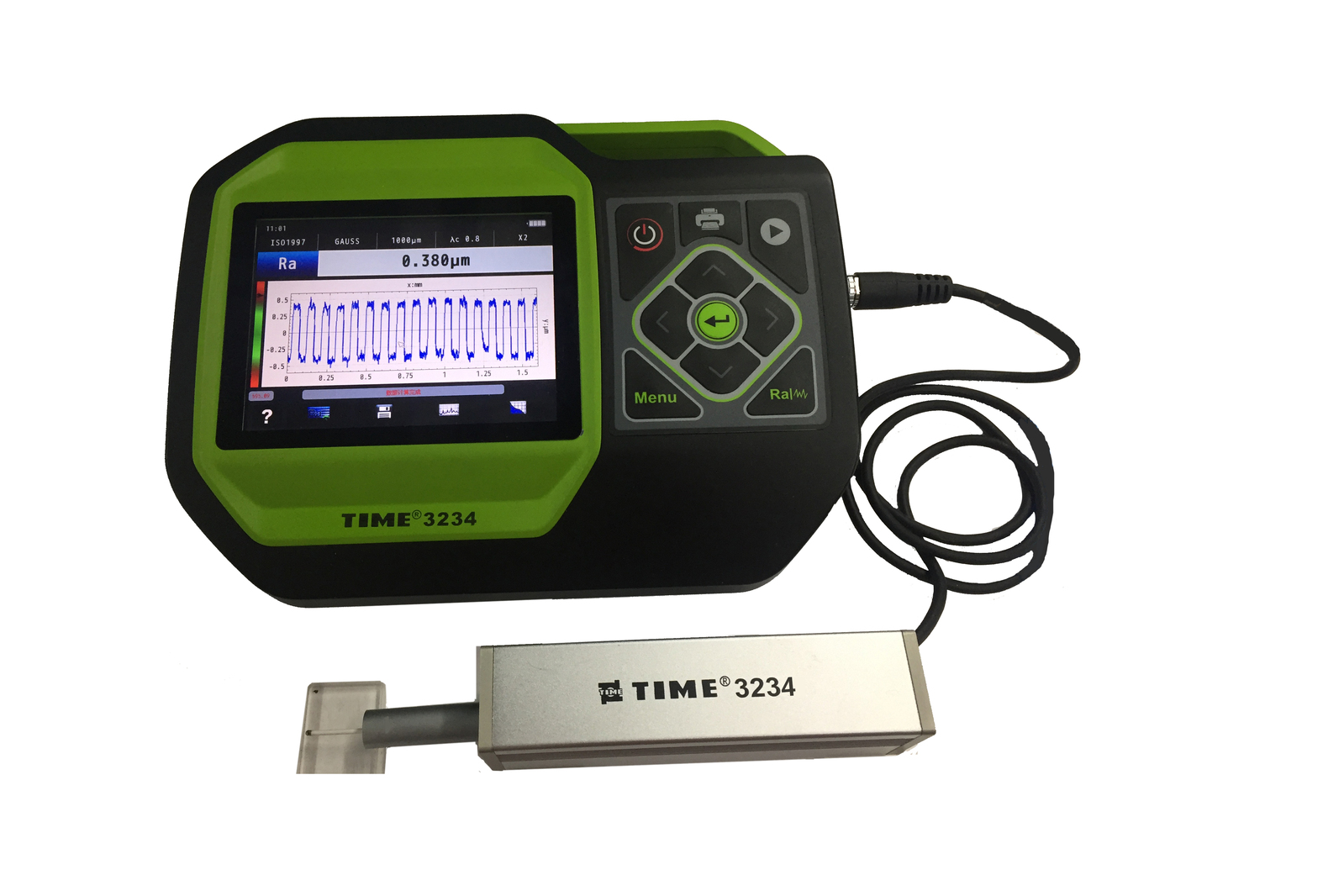

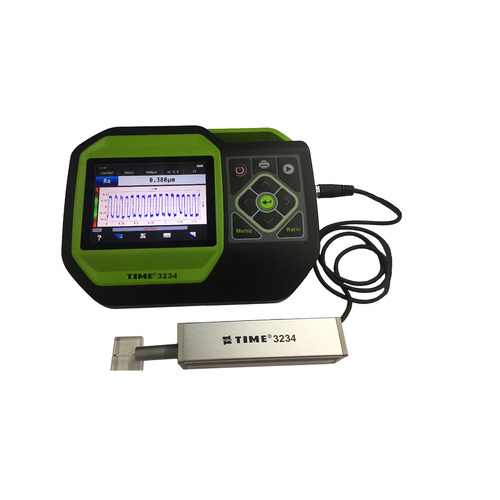

The TIME 3234 is an advanced Surface Waviness and profile measuring gauge that is a comprehensive surface finish testing device.

It can measure roughness, waviness and primary profile. The test results can be displayed digitally and graphically on the LCD screen, or output to a printer. It can also connect to a computer for data analysis via the special software.

Conforms to roughness standards including ISO4287-1997, JIS 0601: 2001; ANSI; SEP1941-2012.



FEATURES:

  • 5.7" Colour TFT LCD with touchscreen
  • USB and RS-232 data
  • Measure surface roughness, waviness and primary profile
  • Wide measuring range 1000µm
  • Maximum tracing length up to 50mm
  • Advanced roughness parameters
  • High accuracy inductance pick up
  • Linux operation system. High calculation accuracy, fast data processing



Standard kit includes:
  • The main display unit

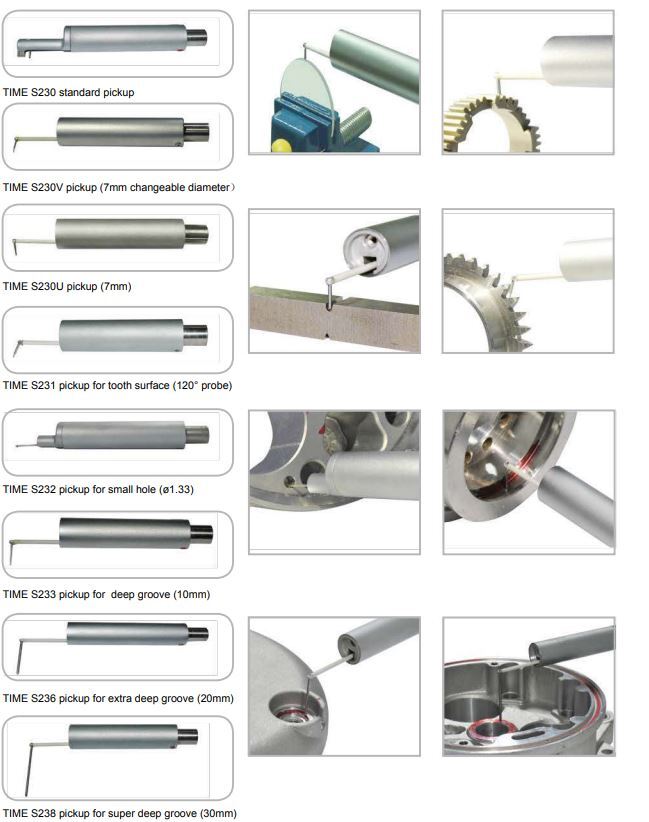

  • Stylus "pick-up" and motor drive unit
  • Portable Stand
  • USB Cabl and Charger
  • Calibration certificate
  • Ra calibration specimen and specimen holder

And for further assistance please contact us.


SPECIFICATIONS:

Maximum Travel 50mm
Measuring Range 1000μm(±500μm)
Max. Resolution 0.0003μm
Indicating Error ±5%(Skid), ±10%(Skidless)
Accuracy 1.5%(Skid),3%(Skidless)
Measured Profile R, W, P, R-Motif, W-Motif
Parameter Ra (0.005µm-16µm) Rz (0.02µm-160µm)
Paramater Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsu, Rsm,Rmr, Rx
Filter Gauss, 2RC
Sampling Length "L" 0.08mm, 0.25mm, 0.8mm, 2.5mm, 5mm, 8mm, 10mm
Evaluation Length (1-5)L
Interface RS232, USB
Power Built in rechargeable battery



(TIME3234)

SKU TIME3234
Brand Time
