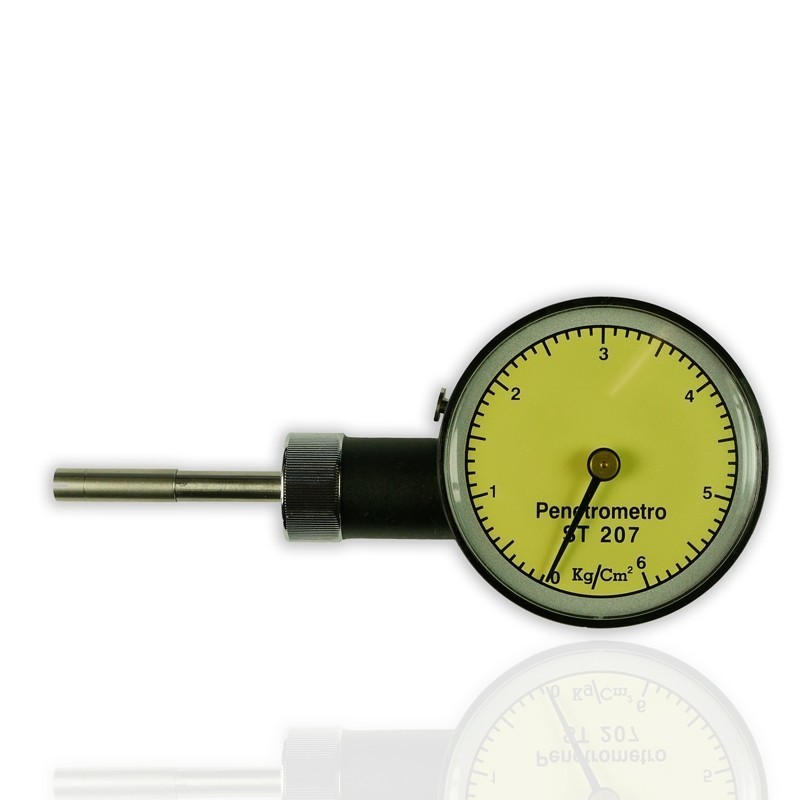

The ST-207 (PP-100) Pocket Soil Penetrometer is designed for users that need to quickly classify the unconfined compressive strength of soil conditions when on site and out in the field.

PP-100 is a mechanical, dial type instrument made in Italy that provides direct value reading in Kgf/cm².

Most commonly used on construction sites, the PP-100 is suitable for cohesive soil, sand and clay and displays the peak result in kg/cm2.

Understanding the type of soil is important as it can indicate suitability for the land for certain purposes such as construction or even the cultivation of vegetation.  Other examples of use are in land care to gauge the effect of livestock on land or assisting to classify a horse racing track.

To use the penetrometer, you push the probe tip into the soil. By using spring-loaded resistance, the penetrometer is able provide the peak reading of the penetration.  Sandy and less cohesive soils will have a lower result and a high reading will indicate a more compact and stable soil.

FEATURES:

• Portable and Lightweight

• 0 ~ 6 Kgf/cm² range

• 1/4" Plunger

• Peak hold

• Push button zero of device

• Accuracy +/-1% of full scale
