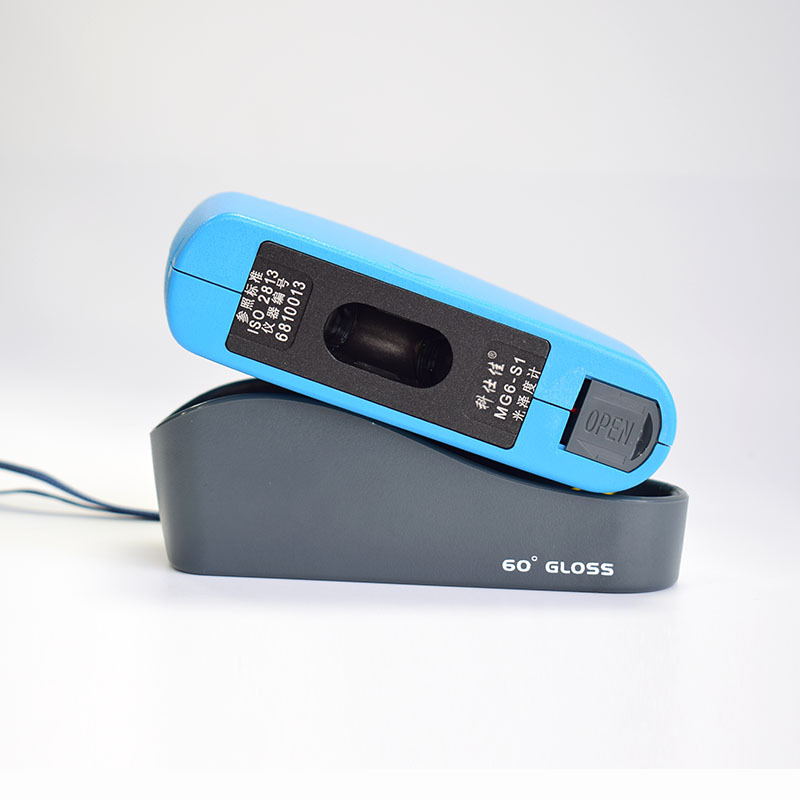

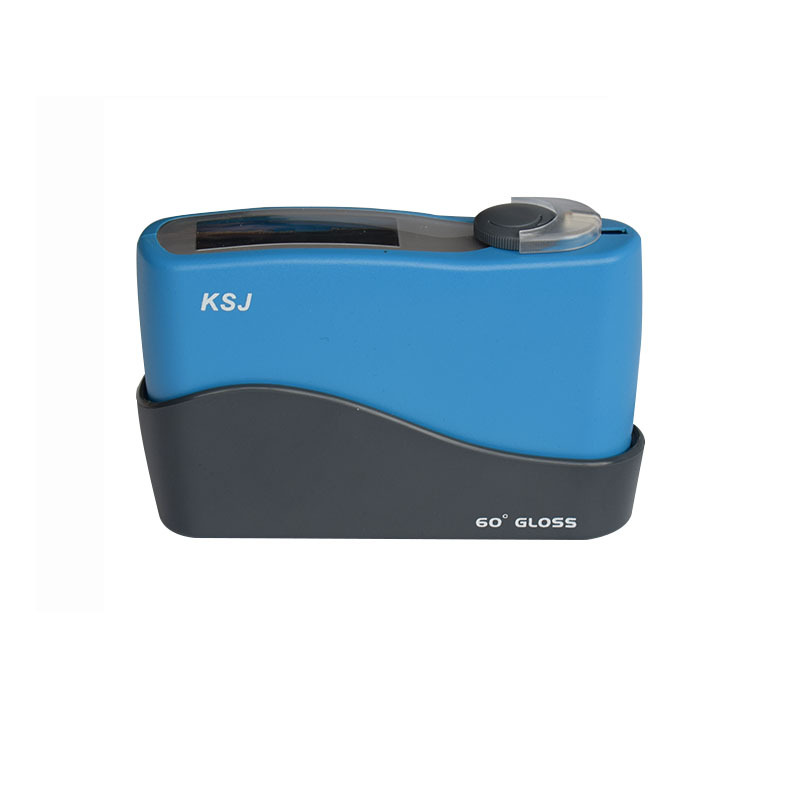

Digital Gloss meter MG6-S1 from KSJ Institute of Photoelectrical Instruments is used to measure specular reflection in Gloss Units (GU) with a single angle of incidence of 60°. It is simple to use with single touch operation and includes a reference plate for self calibration.

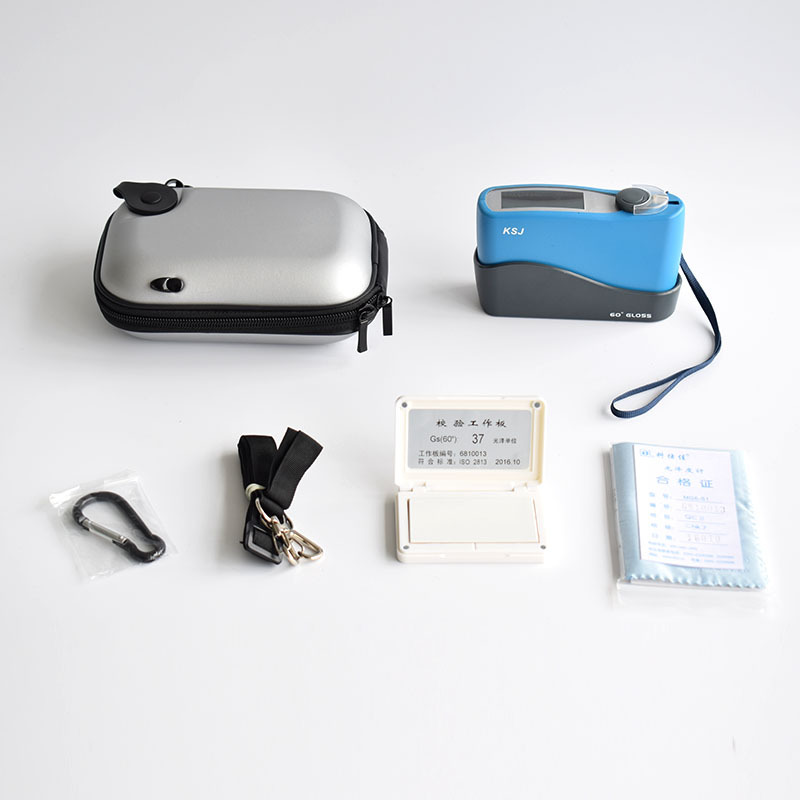

Standard kit includes battery, software dongle, USB cable, user manual and spare calibration chekcing tile in a padded pouch for storage

* Now also featuring Bluetooth® wireless data transmission for online measurement (using dedicated iOS and Android APP's).



  • Small, smart, stable
  • Simple to use
  • Single battery
  • Calibration knob protector



Range 0 ~ 199 GU
Indication Error ± 2
Measuring Area 20 x 10 mm
Incidence Angle 60°
Dimensions 123 x 38 x 65mm
Weight 300g
Power Supply 1 x AA Battery




Brand KSJ
