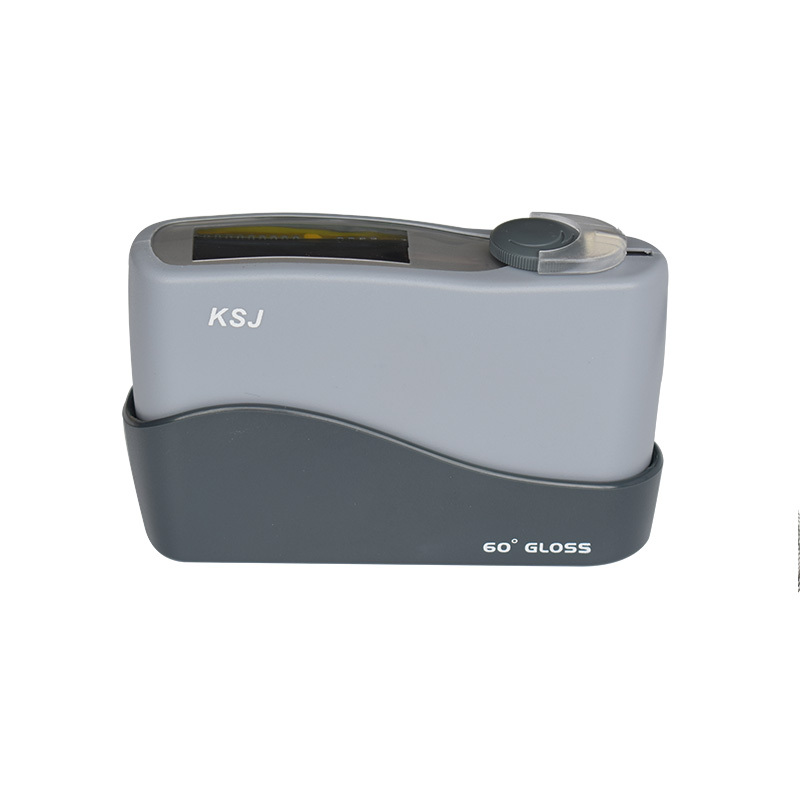

Gloss meter MG6-F1 from KSJ Institute of Photoelectrical Instruments is used to measure gloss of finishing surfaces such as paints, varnishes, inks as well as decorative materials such as marble, granite, polishing brick and tiles etc.  Specular reflection is measured in Gloss Units (GU) with a single angle of incidence of 60°.

One touch operation is simple and the MG6-F1 includes a reference tile for self calibration built into the storage cradle.

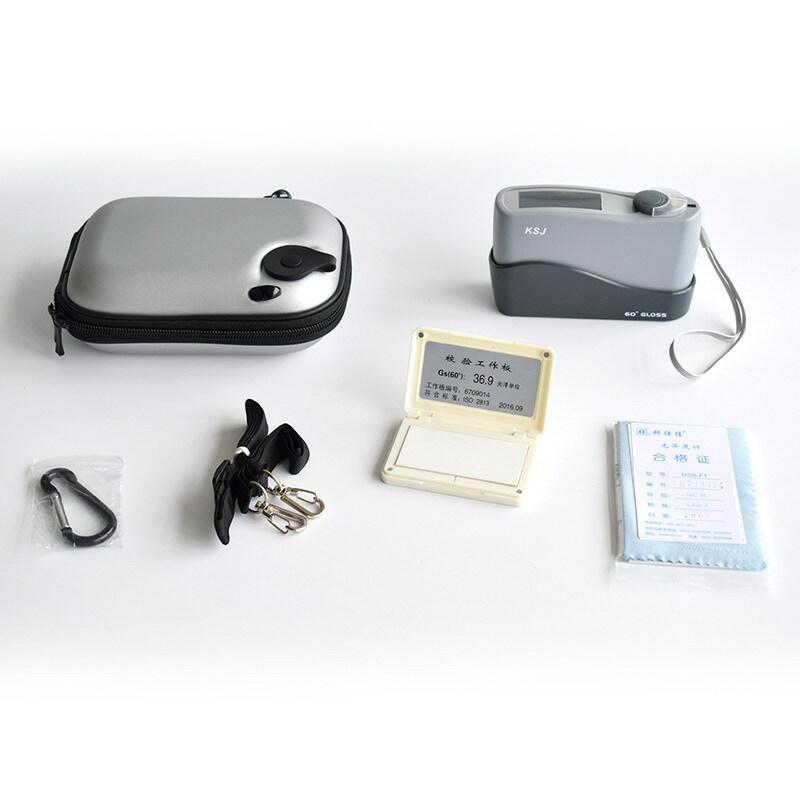

Standard kit includes battery, software dongle, USB cable, user manual and spare calibration chekcing tile in a padded pouch for storage.

* Now also featuring Bluetooth® wireless data transmission for online measurement (using dedicated iOS and Android APP's).



  • Small, smart, stable
  • Simple to use
  • High resolution model
  • Calibration knob protector



Range 0 ~ 199.9 GU
Indication Error ± 1.2
Measuring Area 20 x 10 mm
Incidence Angle 60°
Dimensions 123 x 38 x 65mm
Weight 300g
Power Supply 1 x AA Battery



Brand KSJ
