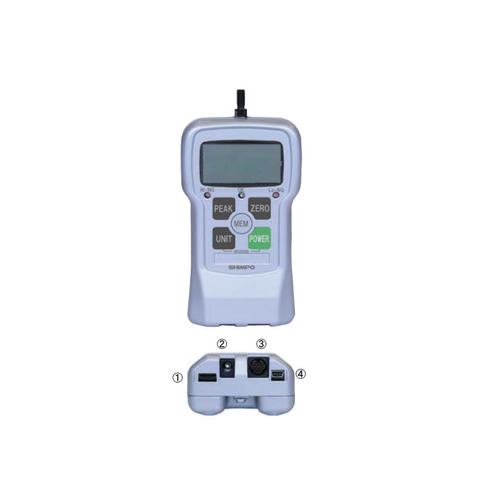

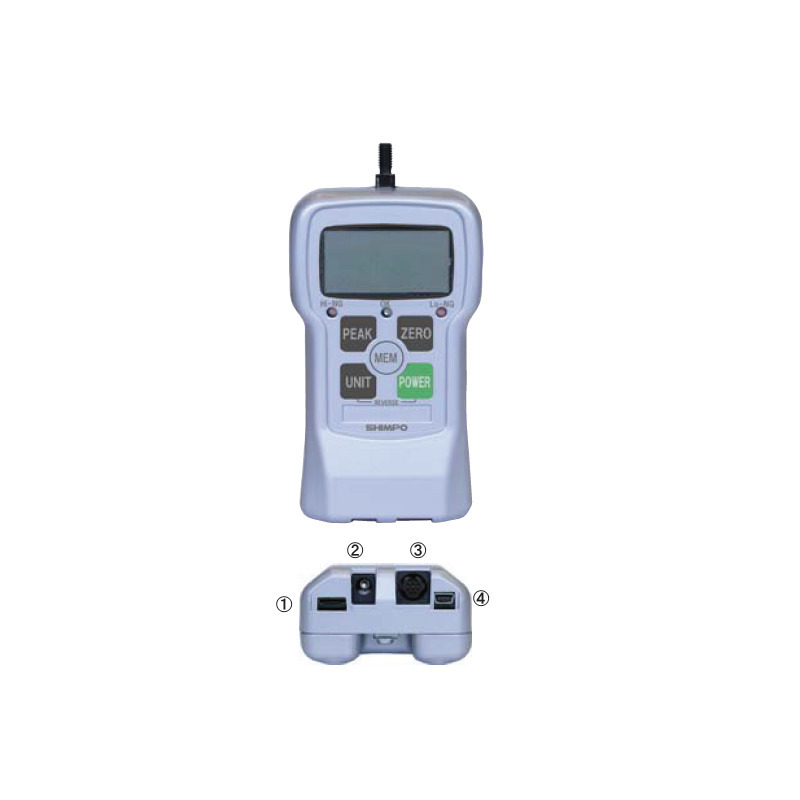

Shimpo Digital Force Gauge. 500.0N (50.00kg) capacity.

The FGV-XY Series Digital Force Gauge from Shimpo is compact and rugged with comprehensive data capabilities.  Featured is on board statistical calculations for fast access to minimum, maximum, average and standard deviation data.

The 1000 record memory and USB connection allows for data exporting after testing is complete or in real time when connected via the included USB cable and using the free "Toriemon" downloadable software, data can be transferred live at up to 100 times per second.

Testing is in both compression and tension and the display is automatically reversible with a dual labelled keypad to use the gauge in any direction.

FEATURES:

  • High/low limit set-point for go/no-go testing
  • 1000 Hz sample rate
  • Reversible display
  • 0.2% F.S. Accuracy
  • Die Cast Aluminium construction
  • USB, RS-232 and Analog outputs

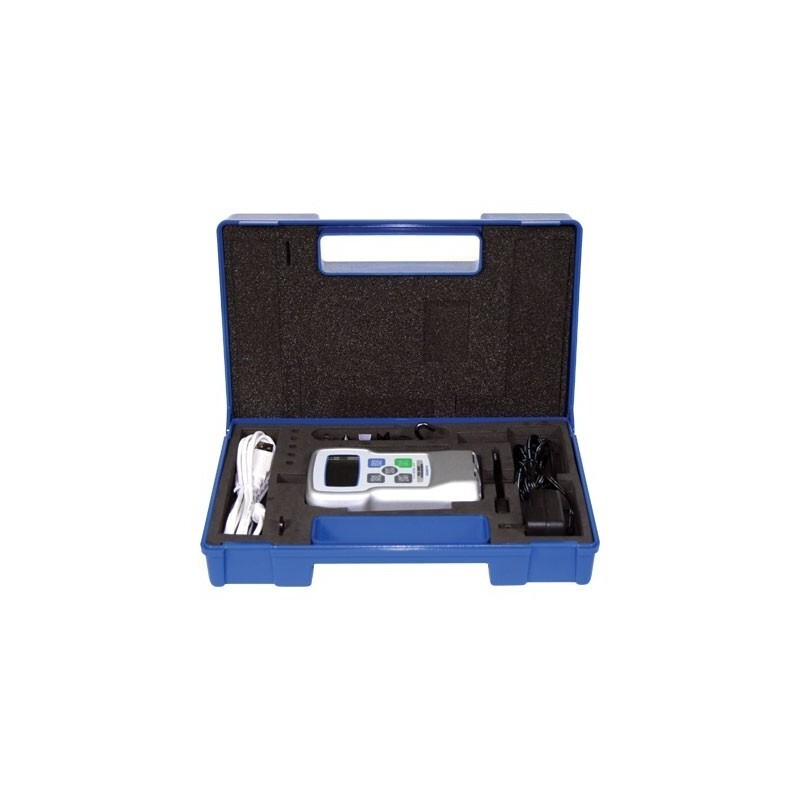

  • Data cable included
  • On board statistics
  • Selectable units: Kg, N, lb and oz
  • 200% overload limit
  • Auto shut off

(FGV-100XY)

SKU FGV-100XY
Brand Shimpo
