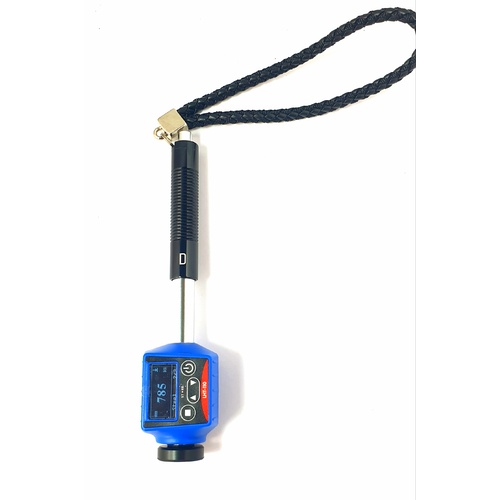

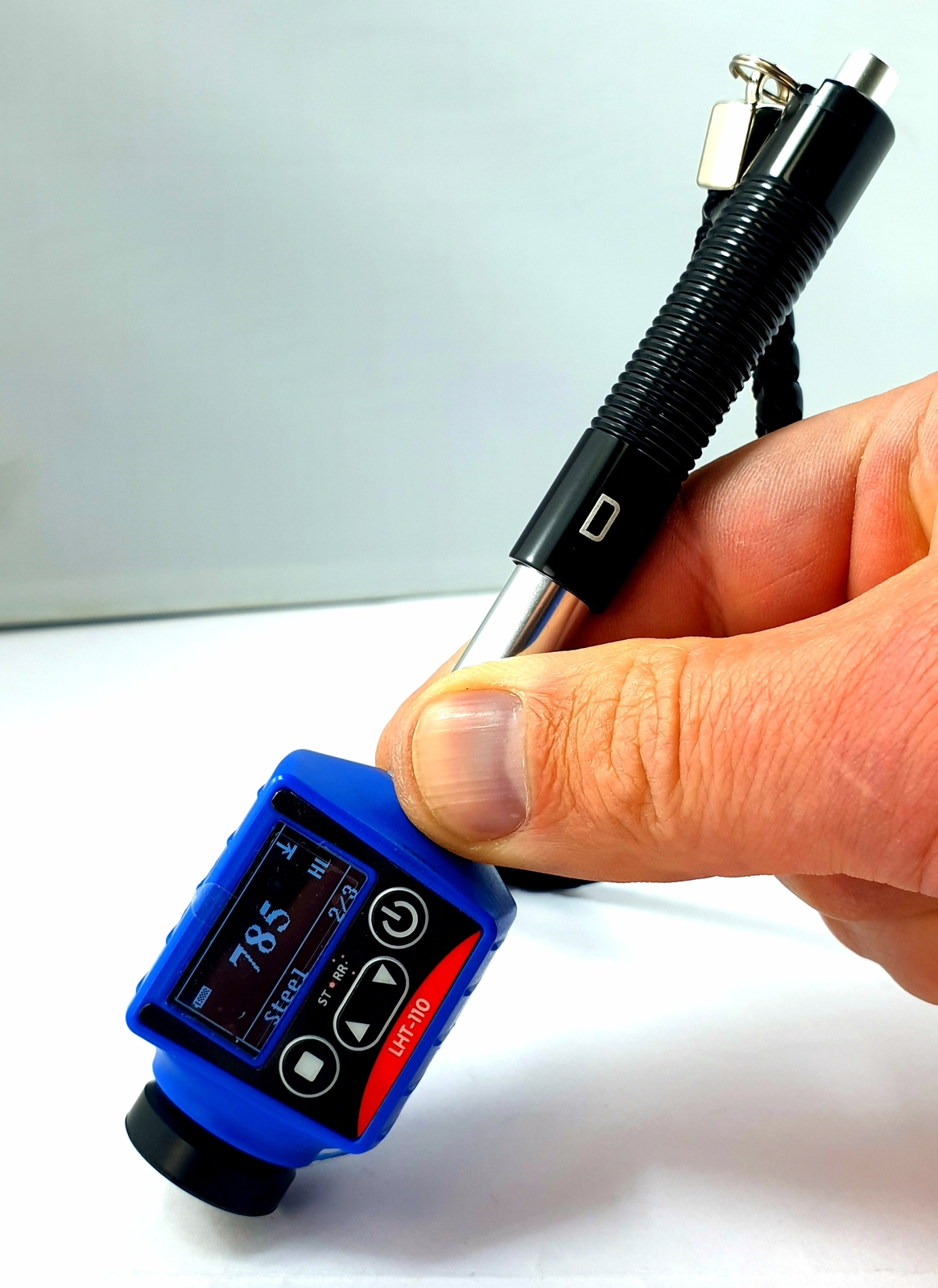

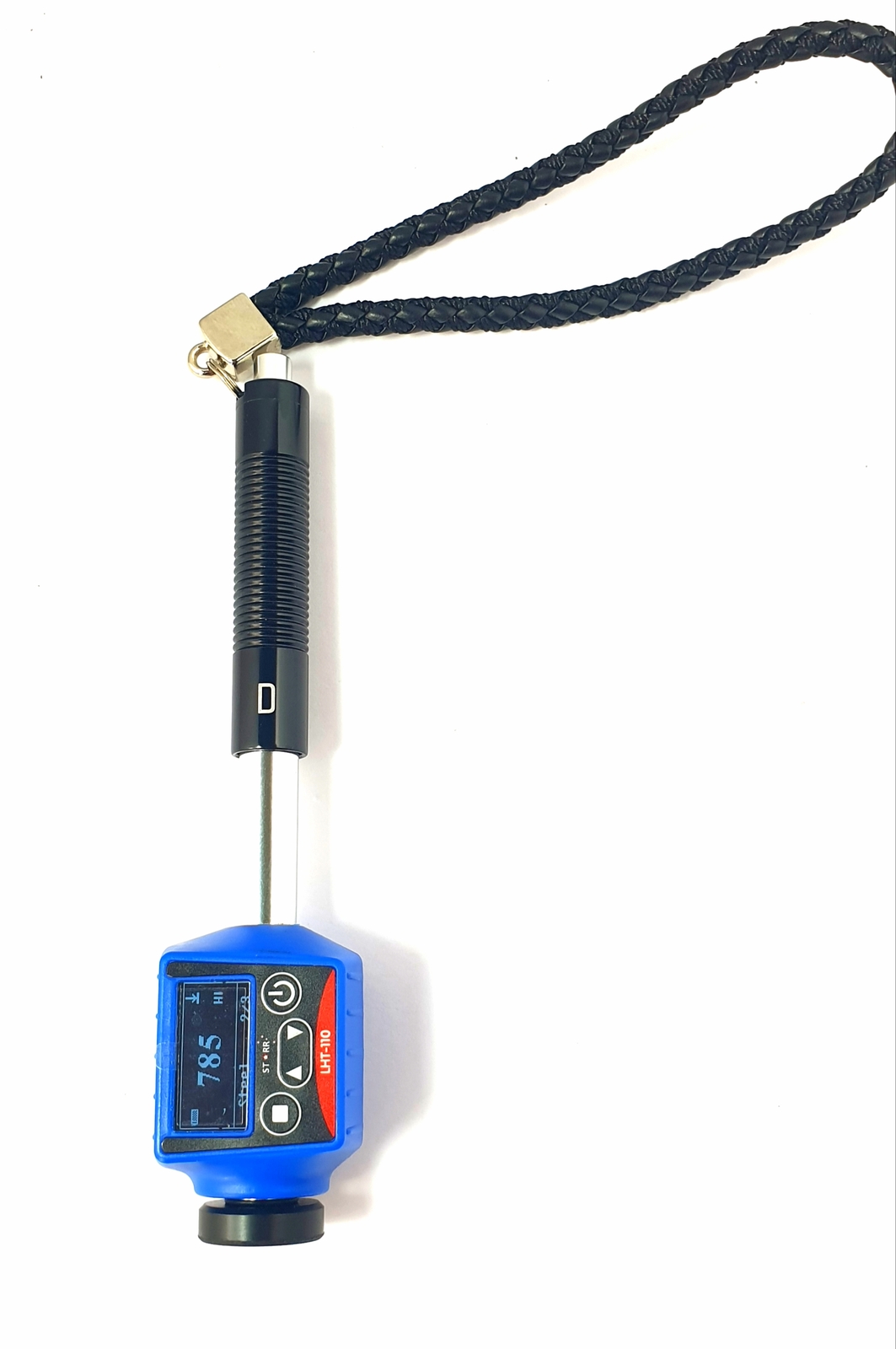

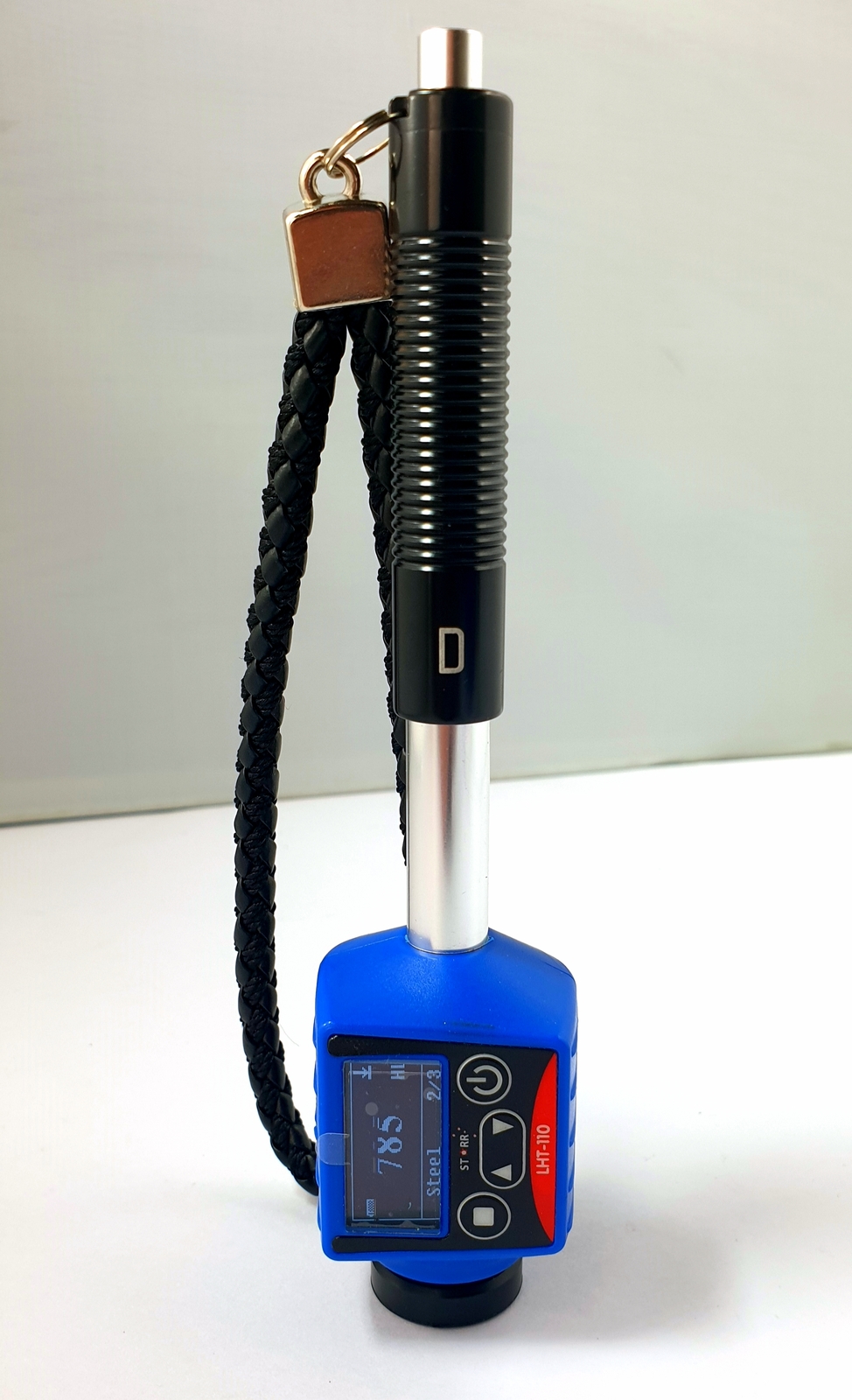

Pen-type Hardness Tester: LHT-110
Micro compact Leeb tester
The Starr LHT-110 is smart and portable.
The pen-type LEEB hardness tester is ultra compact and has been designed with ultimate portability in mind, whilst retaining important functions and features.
Features include automatic detection of test direction, switchable display, 270 record internal memory and bright, clear OLED user interface. The test data can be reviewed through user menu only - no output function.
The hardness value is obtained using the LEEB method which measures the energy loss of a specified impact body after impacting on a test surface. The results are directly converted to common hardness scales such as HRC, HRB, HB, HV and even HS (sclerometer - Shore D).

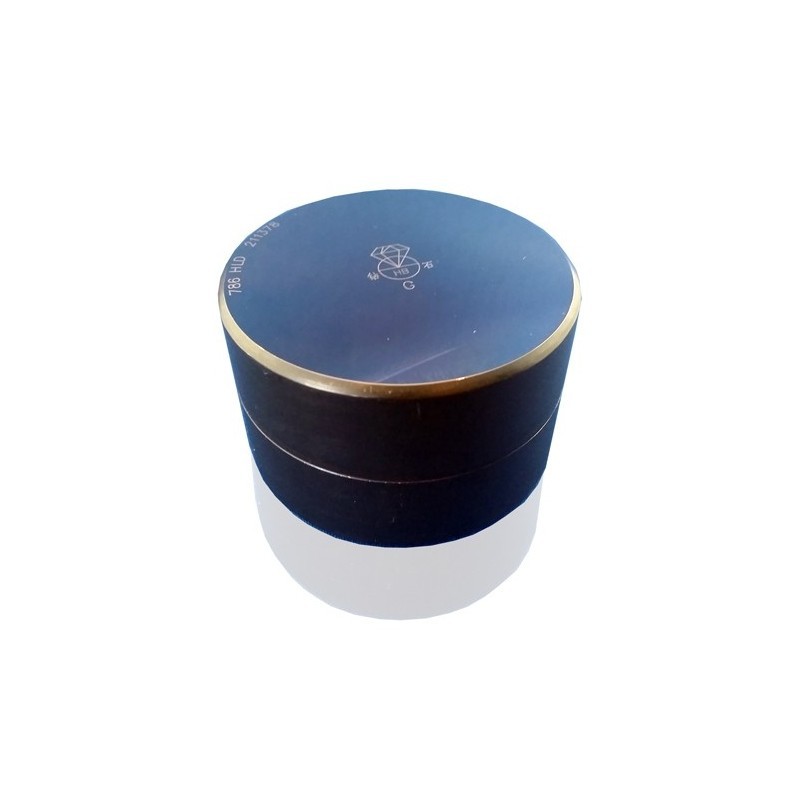

* Standard kit does not include calibration reference test block.
Please add this to your kit when proceeding to checkout for a special price of $200+GST
A saving of $50+GST
FEATURES:
- Ultra compact size
- Fully integrated indenter + impact device
- Auto direction sensor
- Data storage (270 readings)
- Simple operation interface

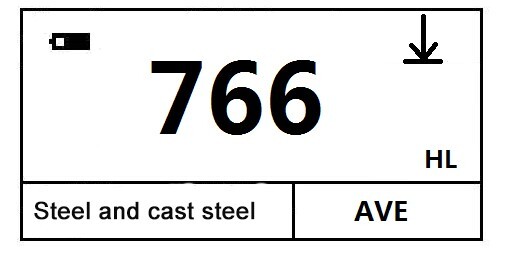

- OLED display
- USB charging and communication

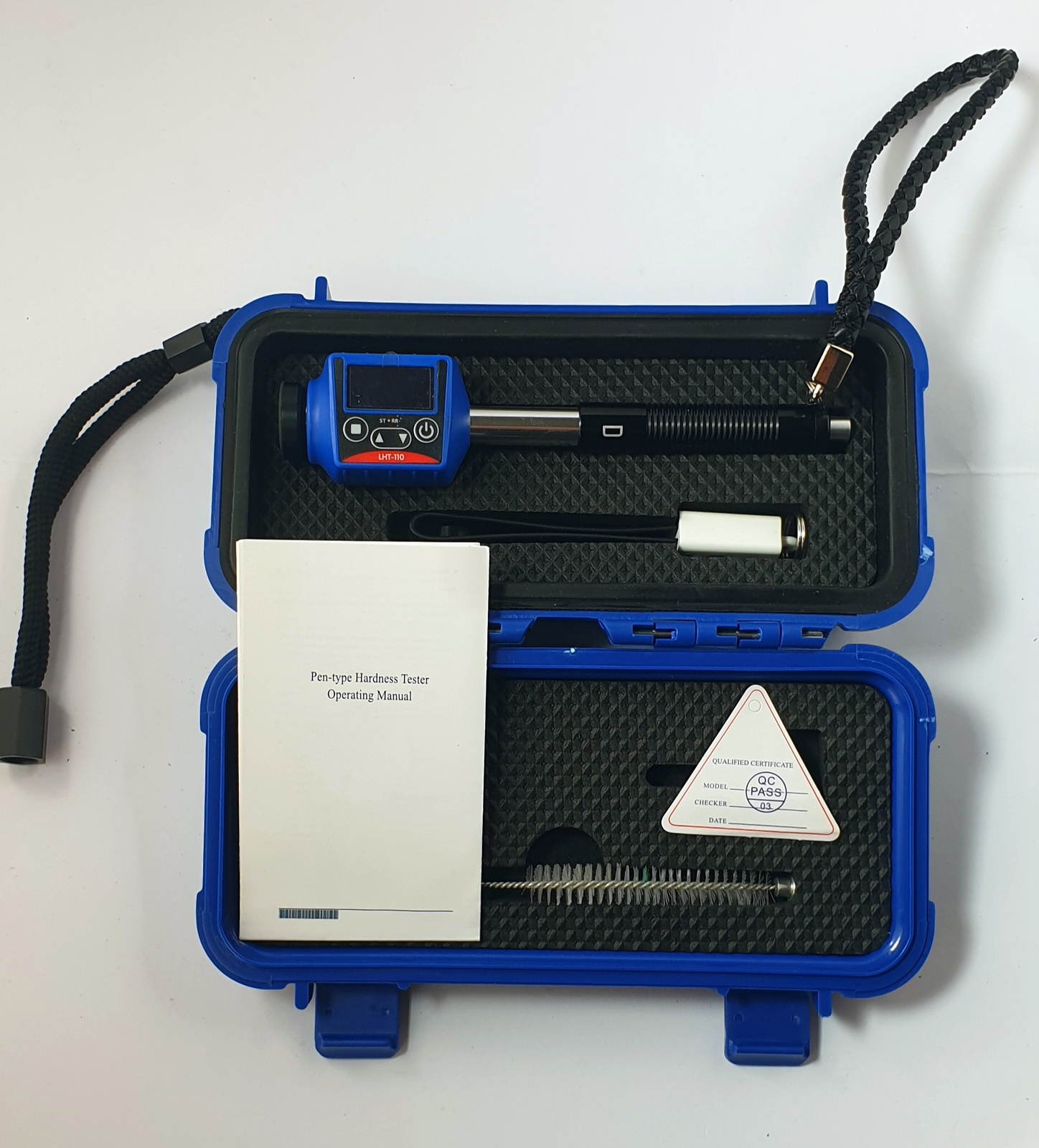

- Padded carry case with handy wrist strap
LHT-100 D-type impact devices to cover a wide range of testing applications.
Used for general purpose testing of Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminium alloy. The D-type impact device suits testing materials with 5mm or more thickness. (possible to test smaller/thinner parts if "coupled" or suitably supported).
LHT-111 DL-type
Long-nose DL-type impact device is used for measuring hardness in narrow grooves or channels such as o-ring seats, gear teeth and other recessed areas. The needle point tip is long and extremely skinny (6mm) to allow comfortable access into most hard-to-reach surfaces. A special extended D-type impact device means testing from 20.6 ~ 68.2 HRC is possible.
SPECIFICATIONS:
MODEL | LHT-110 (D) | LHT-111 (DL) | |
TEST RANGE | LEEB (HLD) | 170 ~ 960 | 560 ~ 950 |
HRC (Rockwell C) | 17.9~ 69.5 | 20.6 ~ 68.2 | |
HRB (Rockwell B) | 13.5 ~ 101.7 | 37.0 ~ 99.9 | |
HB (Brinell) | 19 ~ 683 | 81 ~ 646 | |
HV (Vickers) | 80 ~ 1042 | 80 ~ 950 | |
HSD (Shore D) | 30.6 ~ 102.6 | 30.6 ~ 96.8 | |
Accuracy | ±0.5% (800HLD) | ||
Test Direction | All Directions (Automatic) | ||
Communication | USB with PC | ||
Power | Li-Ion Battery, Rechargeable | ||
Dimensions (mm) | 147x35x22 | 202x35x22 | |
Weight (grams) | 100 | 125 |
(LHT-110)
SKU | LHT-110 |
Model # | Lpad H110 |
Brand | STARR INSTRUMENTS |
Shipping Weight | 1.0000kg |
Shipping Width | 0.190m |
Shipping Height | 0.065m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001235000m3 |
