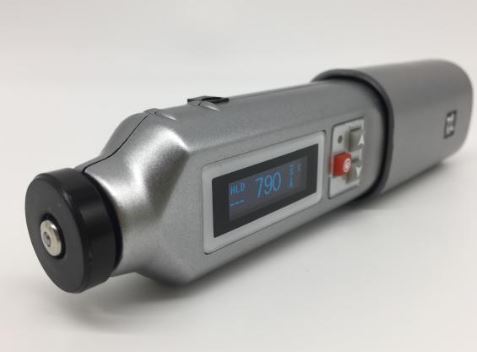

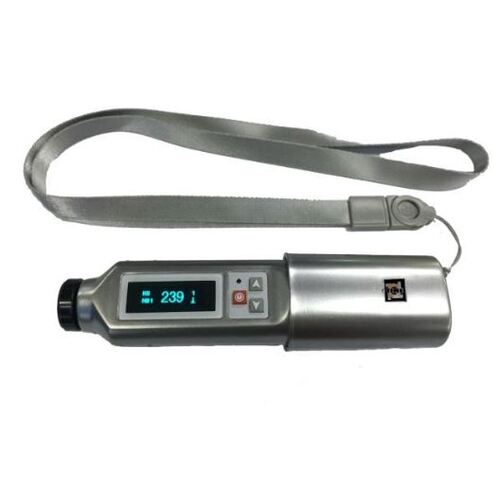

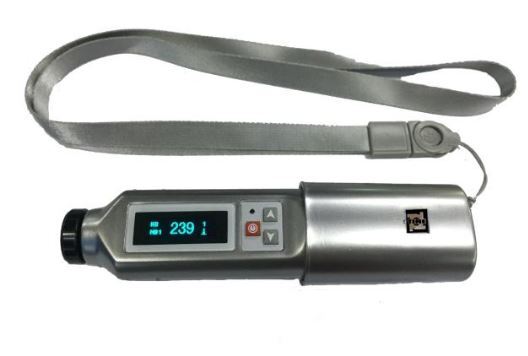

Portable Hardness Tester: TIME 510D
integrated leeb hardness tester
The TIME 510D is portable and integrated with universal LEEB impact device D type.
This hardness tester is an advanced integrated hardness measuring instrument with OLED digital display.
The hardness tester integrates the measuring device and data processing into one compact and ergonomic unit for easy portability and use on site.
Using the LEEB rebound method, the results are measured in the LEEB Scale (HL) and converted and displayed directly in common hardness scales of Rockwell C, Rockwell B, Brinell, Vickers & MpA. Metals that can be tested include Steel, Stainless steel, Aluminium, copper and other variations of suitable thickness and bulk weight1.

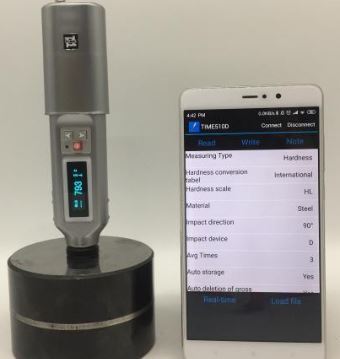

The TIME 510D has Bluetooth installed for communication with optional wireless printer and Android APP for data output and analysis. The user cna also modify tester settings using the APP when connected.
This hardness tester meets the following standards: Enterprise Standard "Leeb Hardness Tester" Q/HD SDF0006-2017.
- Integrated impact device
- Portable and lightweight
- Wireless communication interface standard: Bluetooth 4.1
- Data storage of 100 groups is supported
Basic Kit Supply:
Portable Hardness tester
Factory Calibration Certificate
Additional Support Rings
|Impact Device||D integrated|
|Hardness Scales||HLD, HB, HRC, HRB, HRA, HV, HS|
|Surface of Workpiece||1.6µm (Ra)|
|Max. Hardness||940 HV|
|Min. Thickness1 (coupled)||5mm|
|Min. Weight1 (supported)||2 ~ 5Kg|
|Min. Weight (coupled)||0.05 ~ 2Kg|
|Memory Storage||270 average readings in 9 group files|
|Power||3.6V internal, rechargable|
|Dimensions||145 x 35 x 30mm|
