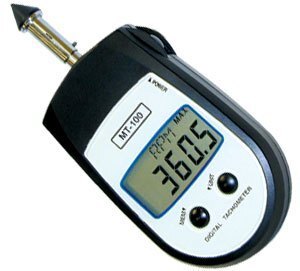

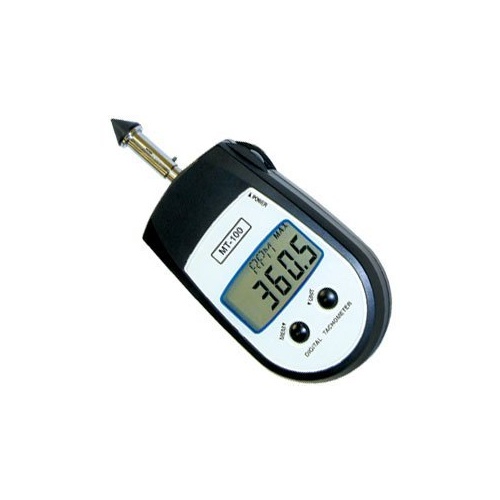

MT-100 (also PH-100A) is a Contact Tachometer from Nidec Shimpo.

The MT-100 provides users with the capabilities of measuring and recording rotational, linear and surface speeds plus total length.

It uses multiple measurement types: total revolutions (rev); revolutions per minute (rpm); surface speed: m/min, y/min, ft/min, in/min; and length: meters, yards, feet and inches.

It is battery powered and pocket sized to be portable and features an auto-off function.

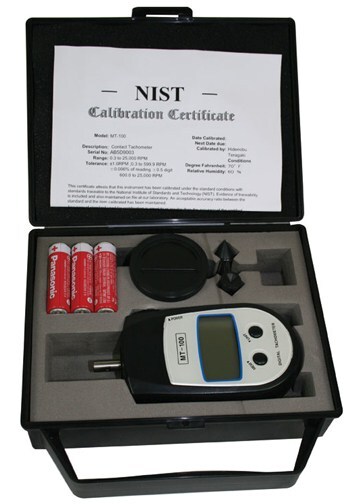

Standard delivery kit includes a protective carrying case which includes a cone adapter, funnel adapter and 6” circumference wheel.


SPECIFICATIONS:

DISPLAY RANGE

Contact: 6.0~25,000 RPM

DISPLAY 5 digit 0.47” (12 mm) high LCD
ACCURACY RPM

Revolution: 6.0 – 599.9 rpm: ±1 rpm600 – 99,999 rpm: ±0.006% ±0.5 digit
Surface Speed, Length: ±0.4% ±1 digit

MEASURING UNITS RPM, surface speed: m/min, y/min, ft/min, in/min; and length: meters, yards, feet and inches
MEMORY Readings are stored in memory and retained for 5 minutes (last, max., min., and 10 user logged measurements)

DIMENSIONS:

(MT-100)

SKU MT-100
Brand Shimpo
