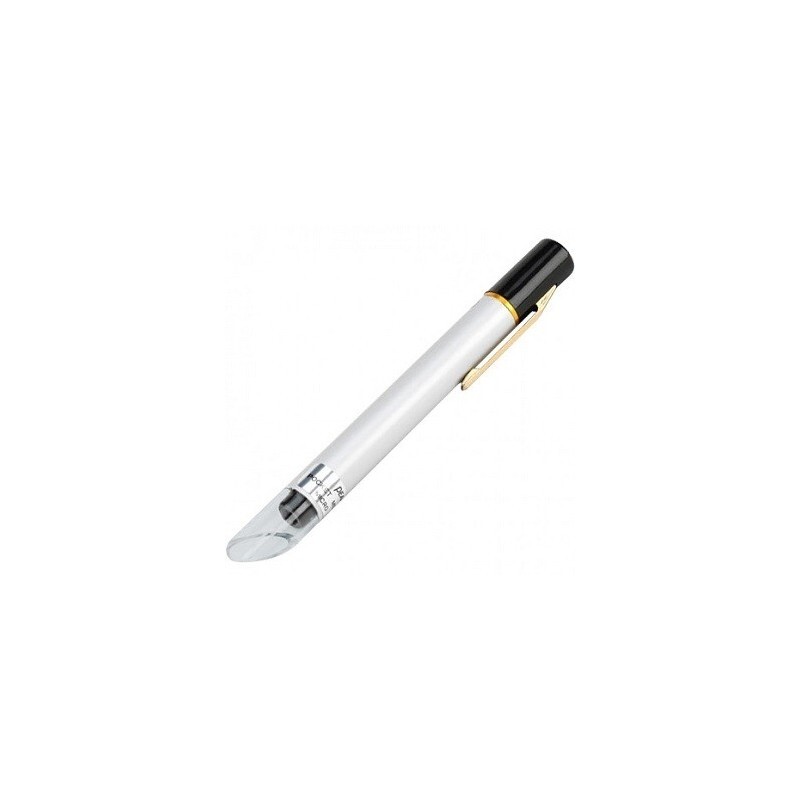

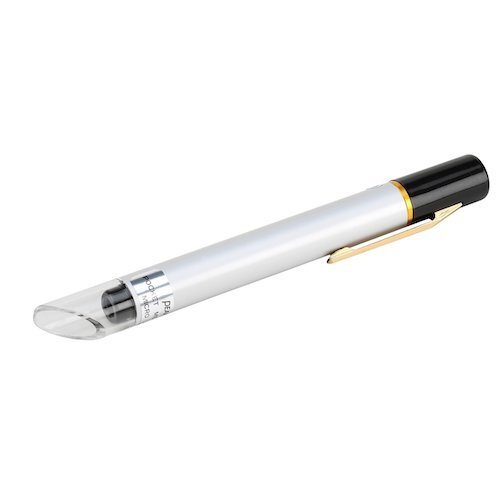

Peak Optics 2001 series Standard Pocket Measuring Microscope.

To focus the microscope, hold it so that the notch at the tip of the acrylic cylinder of the microscope faces towards you. Place the center of the object lens above the specimen and while tilting the cylinder forward and backward with your eye on the eye-piece lens, fix the cylinder and adjust to the best angle which can give the sharpest image.

Magnification: 25x up to 75x*

Part Number 2001-25 2001-50 2001-75*
Magnification 25X 50X 75X
Field of View 3.30 mm 2.00 mm 1.09 mm
Size ø12.4mm x 127mm

* Now Discontinued - run-out stock only

(2001)

SKU 2001
Brand PEAK
