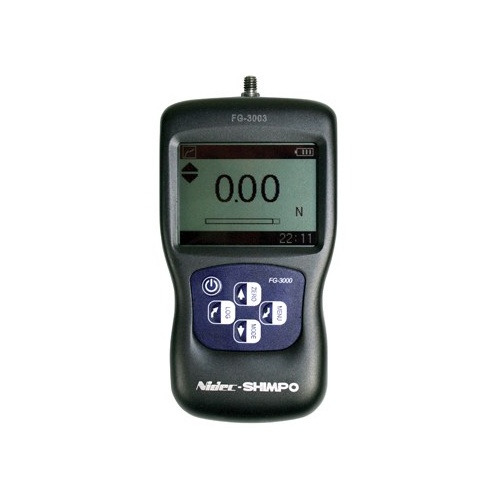

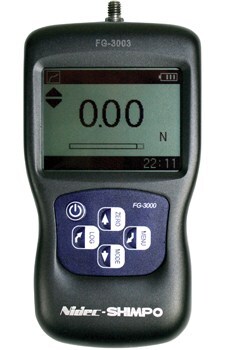

FG-3000 series is a simple and cost-effective digital force gauge from Nidec Shimpo, designed for use in a wide range of industrial tension and compression applications.

Combining one of the most compact housings, yet maintaining a large back-lit LCD; these units are designed to fit perfectly in the hand and are built using quality materials and components.

They feature 3 different test modes:

  • Peak records the maximum reading sensed during the test
  • Tracking - for live readings
  • Preset - which activates user defined high and low limit set points

The FG-3000 uses an integral S-beam load cell to measure the applied force in both tension and compression stroke. It has  buttons for easy operation and is fitted with an overload protection system with an audible warning and visual bar graph alarm to reduce the chance of misuse and damage.

Use for manual handling testing and OH&S, inwards goods QC, finished goods testing, R&D or almost any force testing requirement.


FEATURES:

• Rugged, ergonomic metal body
• 500 reading data logger and EDMS software for output
• Reversible display (switches when gauge is inverted)
• Visual and audible overload
protection alarm
• Programmable Low and high alarm limit setting

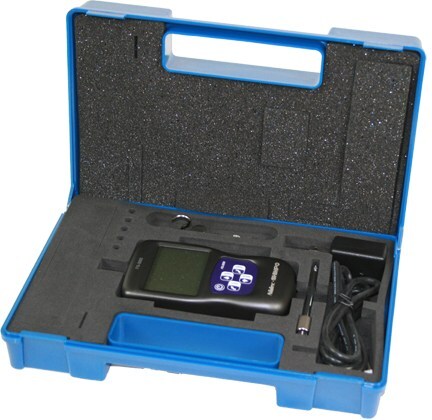

Standard Delivery Kit Includes:

  • Force Gauge
  • 6 standard push/pull attachments (hook, flat, chisel, cone, v-notch anvil and 80mm extension rod)
  • USB charging/data cable
  • Mains AC adapter
  • Factory calibration certificate
  • User manual



SPECIFICATIONS:

 Accuracy

 ± 0.3% F.S.

 Selectable Units

 N, gf, kgf, ozf, and lbf. (Selectable)

 Display

LCD with LED Backlight

 Overload Capacity

 150% F.S.

 Measurement Mode

 Track or Peak

 Sampling Rate

 500 Hz

 Memory

 500 records

 Power

 Ni-MH rechargeable

 Charger/Adaptor

 Universal USB charger

 Dimensions

 150 x 72 x 33mm

 Weight

 0.45 kg





Capacity (Range)  Resolution: (Accuracy: +/- 0.3% F.S.)

MODEL

N

Kgf

Ozf

lbf

FG-3003 Capacity 10.00 1.000 35.00 2.200
  Resolution 0.01 0.001 0.01 0.001
FG-3005 Capacity 50.00 5.000 180.0 11.00
  Resolution 0.01 0.001 0.1 0.01
FG-3006 Capacity 100.0 10.00 350.0 22.00
  Resolution 0.1 0.01 0.1 0.01
FG-3007 Capacity 200.0 20.00 700.0 44.00
  Resolution 0.1 0.01 0.1 0.01

FG-3008

Capacity

500.0

50.00

1800

110.0



Resolution

0.1

0.01

1

0.1

FG-3009 Capacity 1000 100.0 3500 2200
  Resolution 1 0.1 1 0.1





(FG-3000)

SKU FG-3000
Brand Shimpo
Shipping Weight 1.0000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.004500000m3
