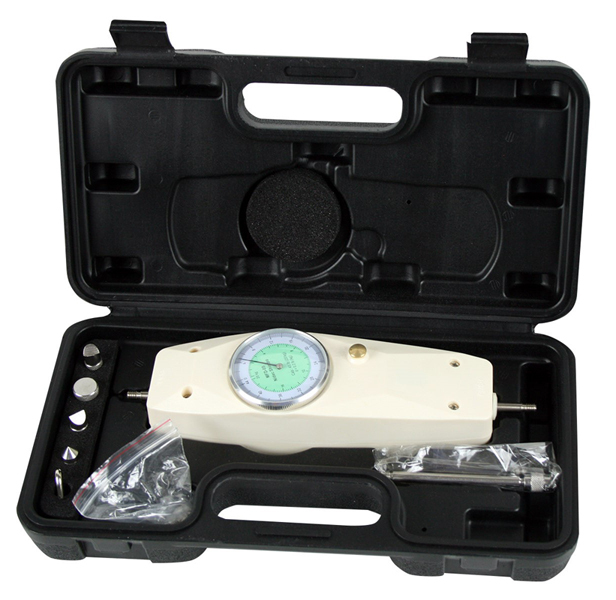

FGA series analogue Force Gauge is simple to use with a compact and ergonomic body and high accuracy. Fully mechanical operation with a smooth, precise action for basic push and pull force testing.


The FGA series has two operation modes:

Peak hold mode is especially useful for repetitive testing in an assembly line or quality control testing.

Real time tracking mode allows users to carefully analyse and see a resistance to a force load as it increases - great for setting machinery.

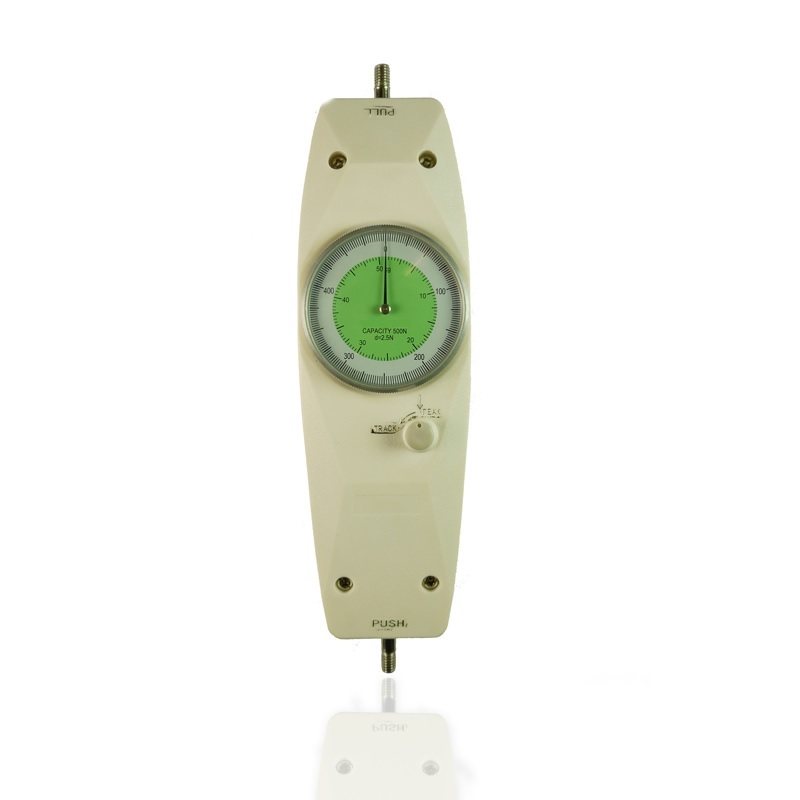

It features a "lazy arm" dial to hold the peak force measurement.  The lazy arm is easily reset with a single click on the button on the front of the gauge.

This mechanical gauge also features dual measurement scales of Newtons and Kilograms/force as standard. Different capacity gauges are available to suit various requirements contact us today to discuss your force gauge needs.


FEATURES:

  • Mechanical operation
  • Accuracy: ±2% of full scale
  • Peak or Real-time Tracking mode
  • Push button zero reset
  • Dual scale N/kgf
  • Compact
  • 10mm stroke


SPECIFICATIONS:

MODEL CAPACITY RESOLUTION
FGA-50 50N 0.25N
FGA-100 100N 0.5N
FGA-200 200N 1N
FGA-500 500N 2.5N

(FGA-Series)

SKU FGA-Series
Brand STARR INSTRUMENTS
