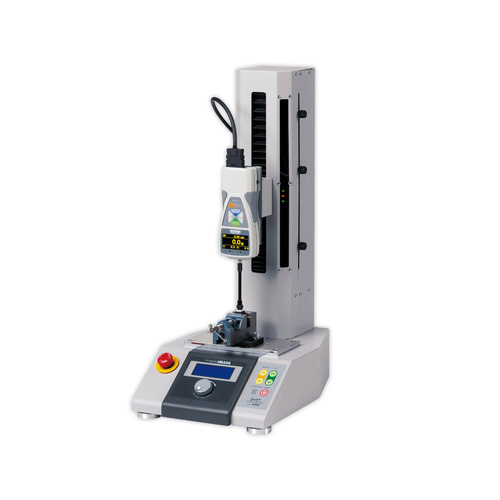

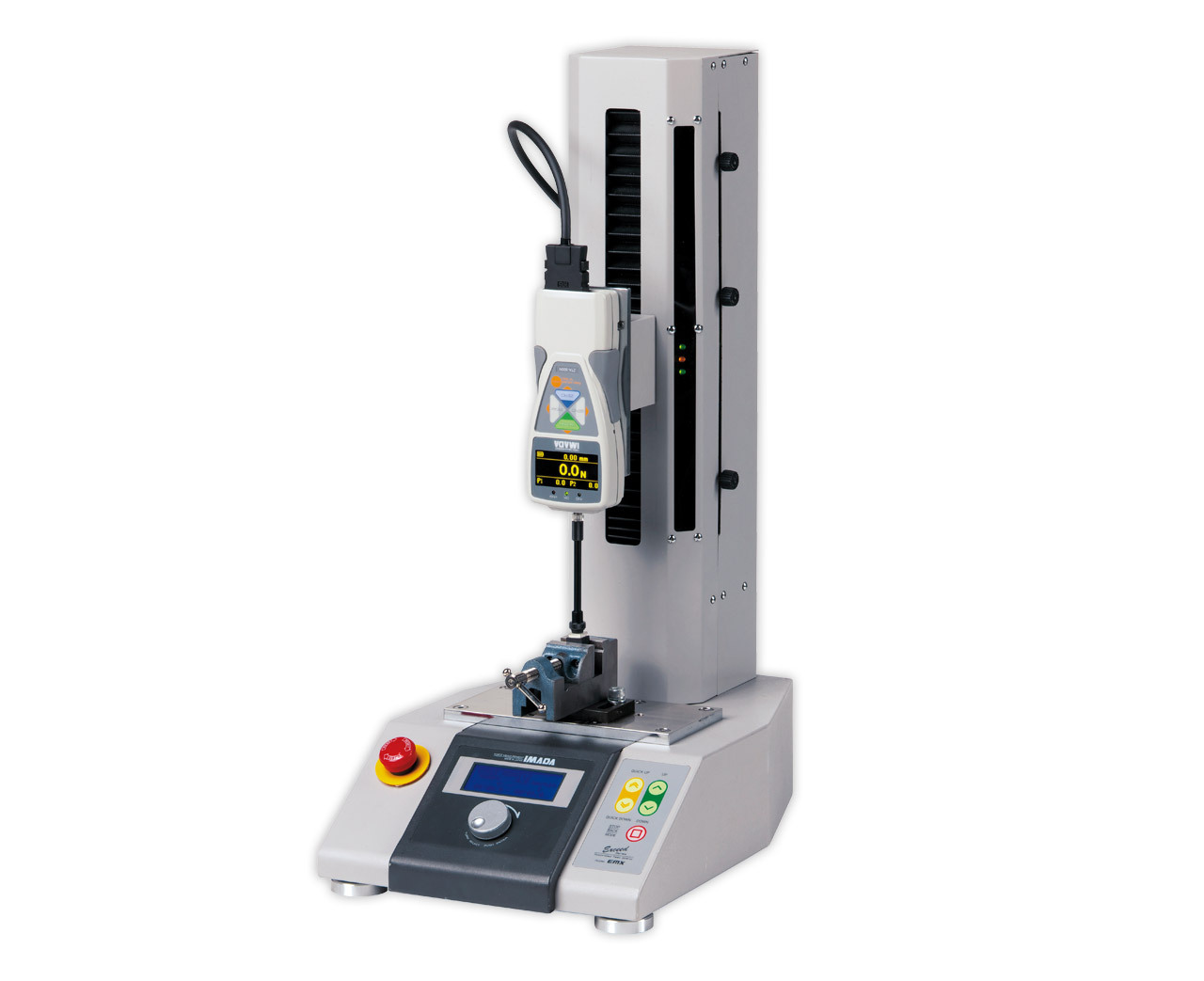

The Imada EMX-1000N advanced motorised test stand from Imada has a maximum capacity of 1000N (100kg) for a wide range of applications.  It has the highest level of functionality and stability in the range with a 290mm stroke and an ultra-wide speed adjustment range of 0.5 to 600mm/min.

Controlled testing is possible with adjustable high and low set points through compatible Imada ZT-series force gauges and external load cells (not included).

Other operation modes include manual, jog and continuous cycle, which is possible through digital set up of speed, travel, timer, counter and automatic gear change at a selected change point.

It is also possible to carry out advanced force versus displacement analysis when combining with a suitable gauge or load cell, "Force-Recorder" professional software and cables (refer to FSA series).

Safety features include stroke limit and an emergency override stop button.

Options available include extended mast for increased stroke, length measurement, speed change and linear scale for displacement.



Please contact us today to discuss your needs.




FEATURES:

  • • 1000N (100Kgf) Capacity
  • • Maximum sample height up to 320mm
  • • 290mm stroke (depending on load cell / force gauge fitted)
  • • 0.5 ~ 600mm/min speed adjustable
  • • High / Low limit force controlled testing with emergency Stop
  • • Manual / Single / Continuous cycle test modes
  • Enables you to draw graphs of force vs. time and force vs. displacement at high sampling rate of 2000Hz. *
  •
  • * When combined with suitable force gauge. Please contact us for more information and pricing on a package to suit your application.

(EMX-1000)

SKU EMX-1000
Brand Imada
