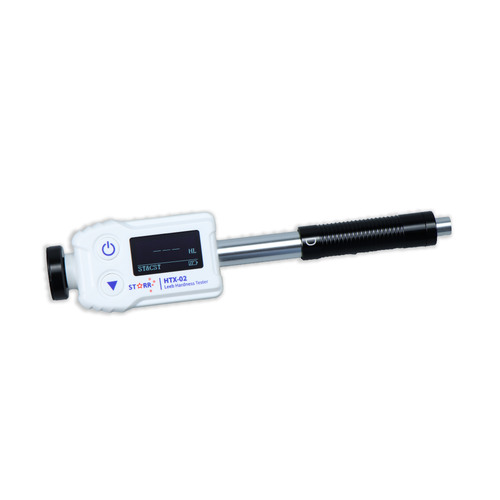

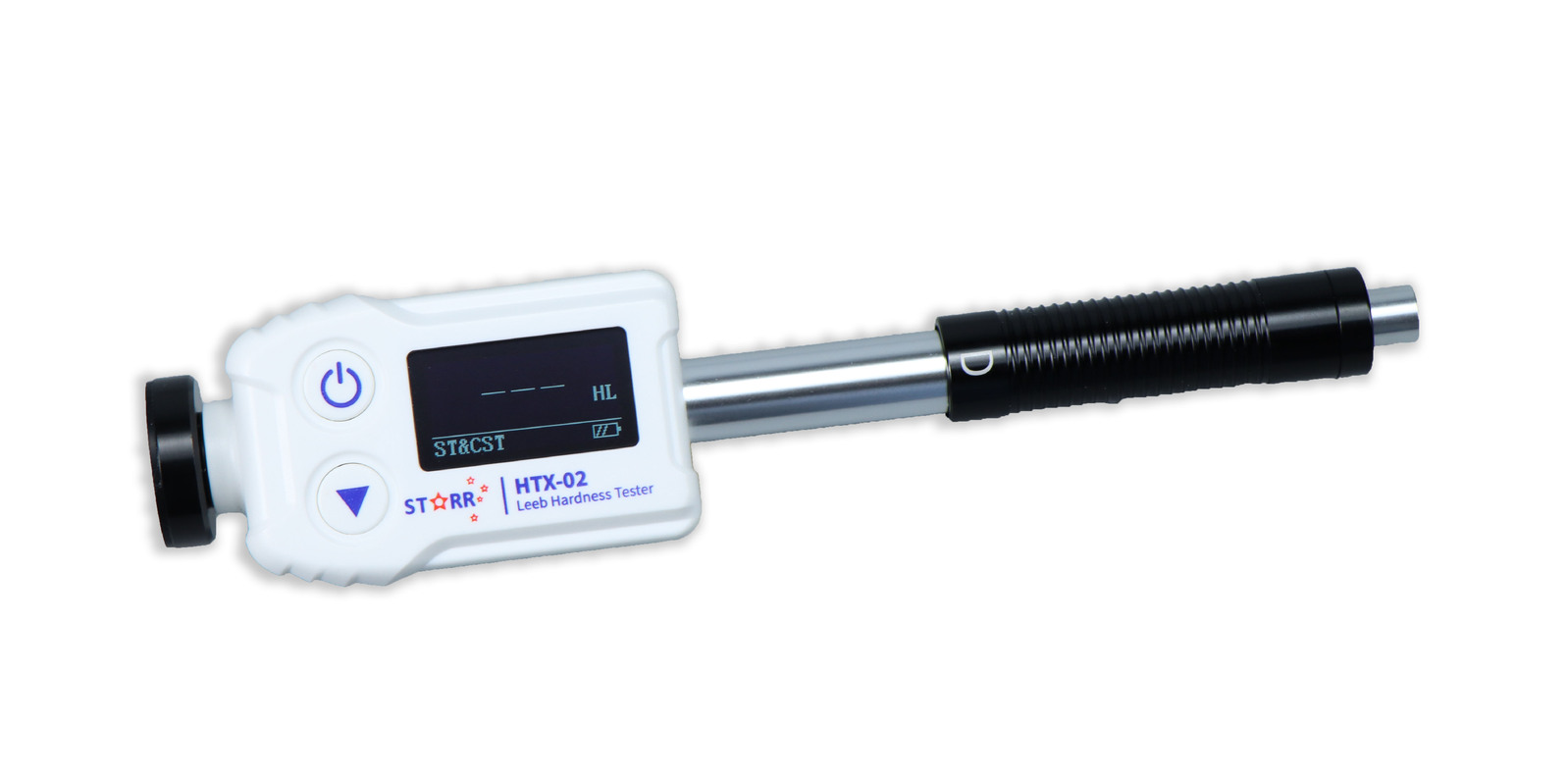

The Starr Instruments' HTX-02 is smart and portable metal hardness tester.

This Pen-Type LEEB hardness tester is ultra compact and has been designed with ultimate portability in mind. Despite its small size, this nifty instrument retains all of the important functions and features.

The hardness value is obtained using the LEEB method which measures the energy loss of a specified impact body after impacting on a test surface. These results can then be directly converted to common hardness scales such as HRC, HRB, HRA, HB, HV and even HS (sclerometer - Shore D).

The HTX-02 uses a D-type impact device which is suitable for general purpose testing of Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron and cast aluminium alloy. The D-type impact device requires the tested material to have a thickness greater than 5mm. (It may be possible to test smaller/thinner parts if "coupled" or suitably supported).

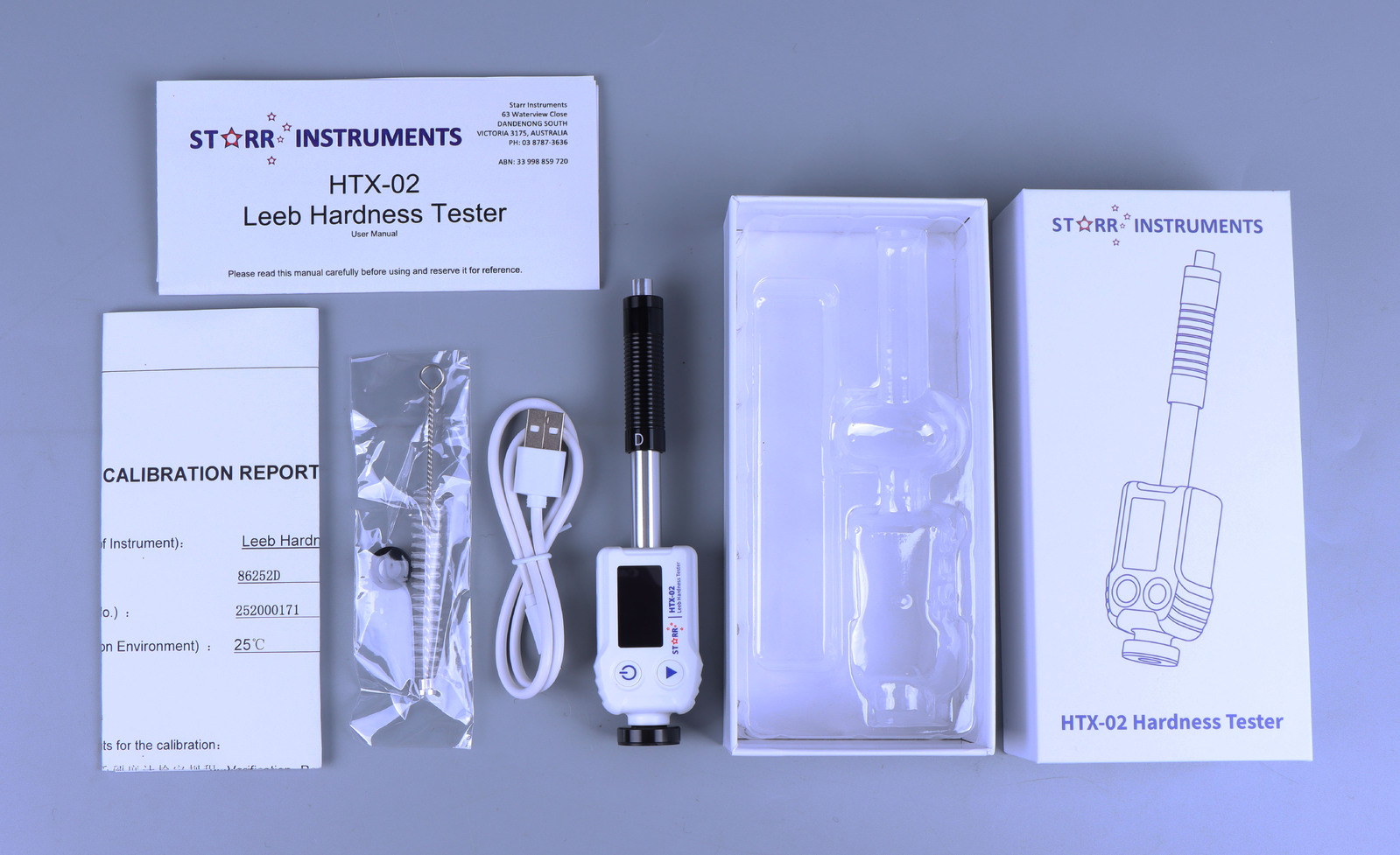

Standard Kit Includes:

  • Hardness Tester
  • Cleaning Brush
  • User Manual
  • Additional Small Support Ring
  • Charging Cable
  • Calibration Certificate



Complete Kit also Includes:



FEATURES:

  • Ultra compact size
  • Fully integrated indenter + impact device
  • Auto direction sensor
  • Simple operation interface
  • OLED display
  • USB charging and communication
  • Incredibly Repetable and Accurate



SPECIFICATIONS:

Probe

Impact device D

Hardness Scales

HL, HV, HB, HS, HRA, HRB, HRC

Measurement Range

HLD: (170-960), HV: (83-976), HB: (30-651), HRC: (17.6-68.5), HS: (26.4-99.5), HRB: (13.5-100), HRA: (60-85.8)

Resolution

1HL

Accuracy

±6 HL

Repeatability

6HL

Display

240 x 16 dot matrix LCD

Power Supply

Rechargeable Lithium Battery

Size

148 x 34 x 24 mm

Weight

68 grams



(HTX-02)

SKU HTX-02
Brand STARR INSTRUMENTS by Test-Equip
Shipping Weight 0.0700kg
Shipping Width 0.175m
Shipping Height 0.045m
Shipping Length 0.085m
Shipping Cubic 0.000669375m3
