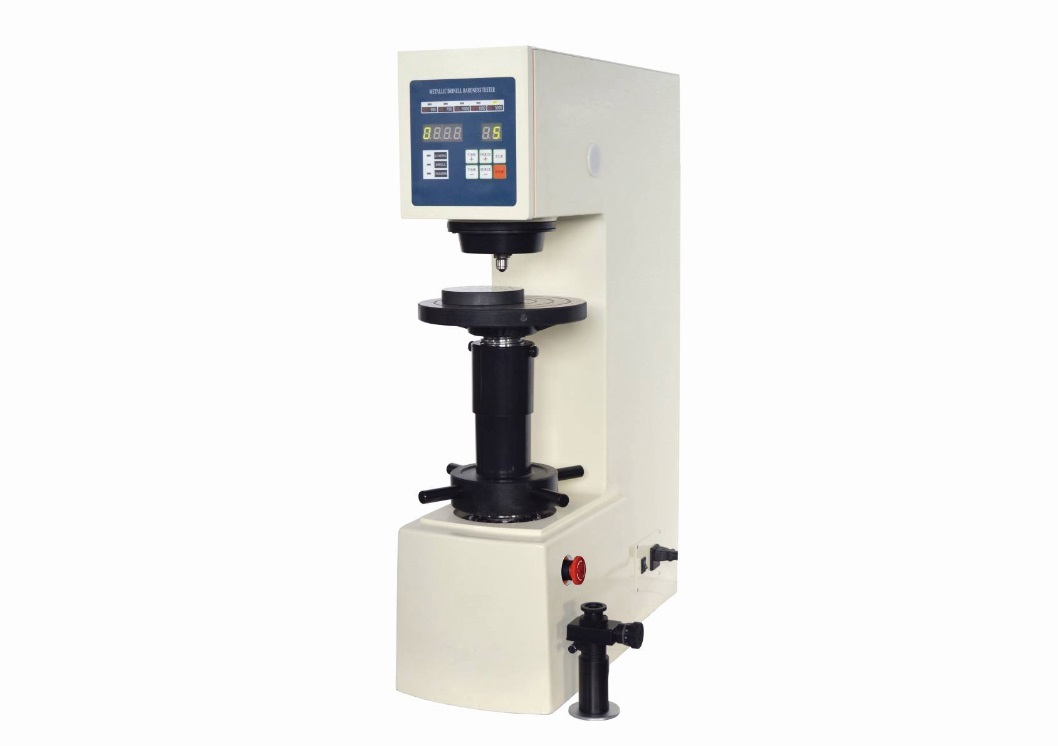

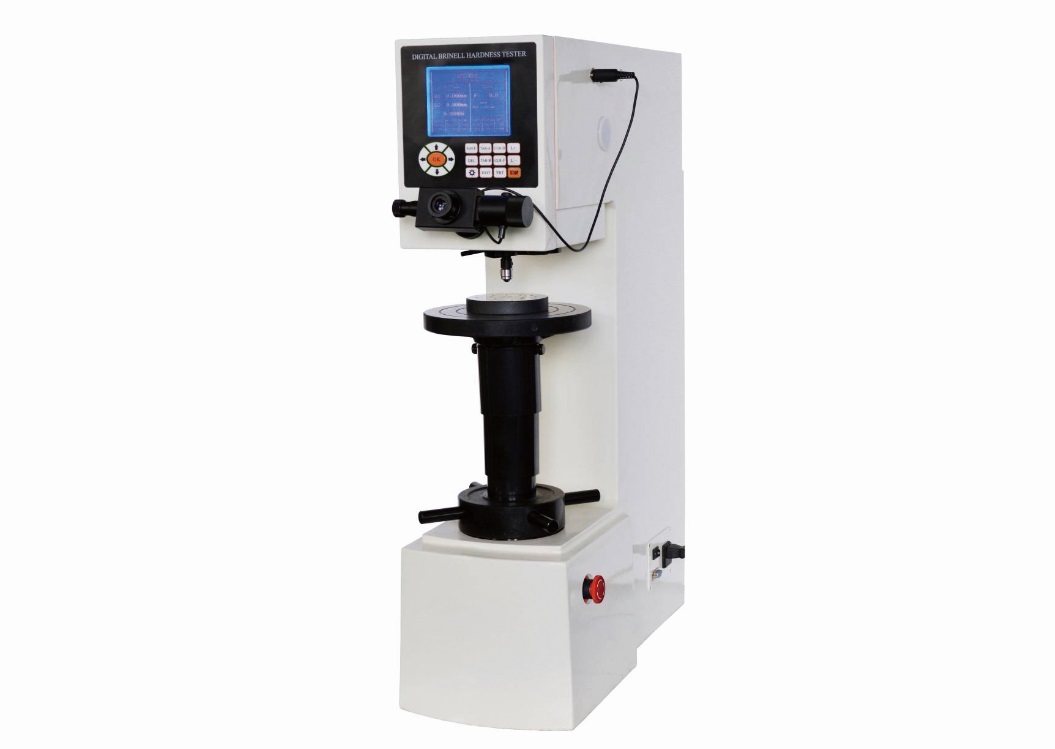

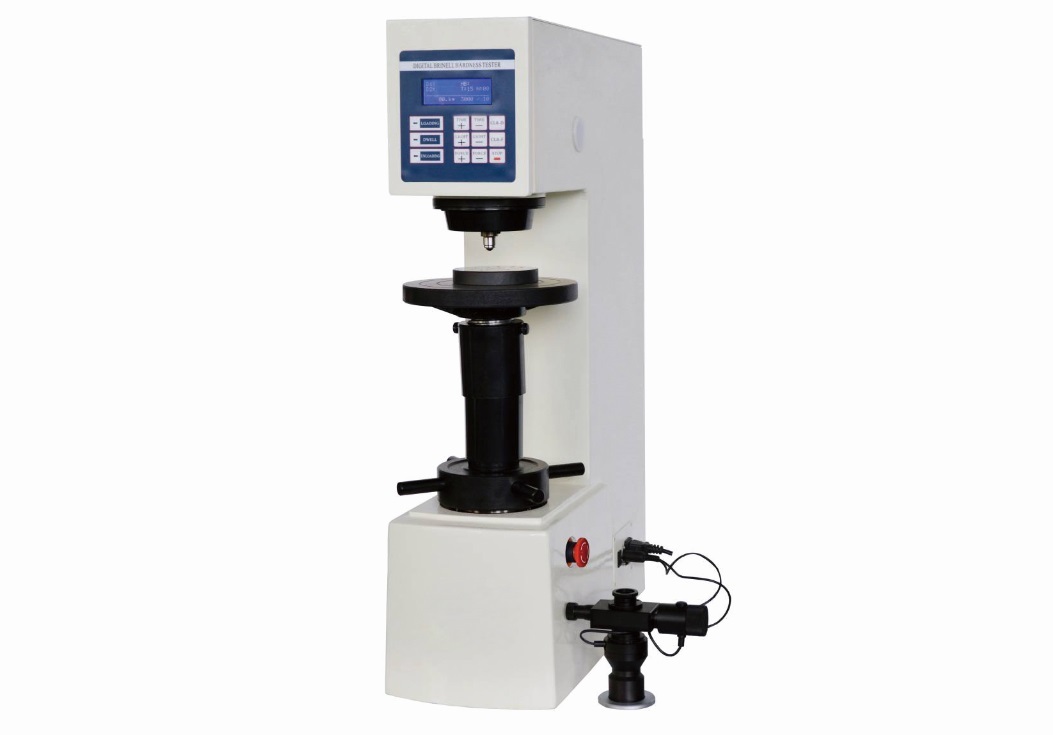

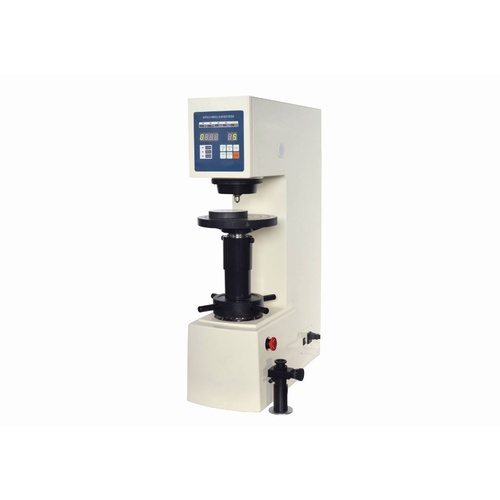

Bench mounted Brinell hardness testers for testing of cast iron, forging steel and raw, unfinished materials.

They feature closed-loop compression sensor loading, electronic control system as standard for high accuracy test force application without weights. The CPU control system automatically compensates the test force lost during the test. The test force and dwell time can be directly set on the touch keyboard with reliable repeatability, precise reading and easy operation.

Model variations include features such as auto-turret and auto focus, automatic loading, dwell and unloading.



  • Closed loop, load cell, force feedback system for reliable load application
  • Adjustable test force range: 62.5kgf to 3000kgf
  • Built in printer (D and MD variants only)
  • HB Value displayed on LCD screen (D and MD variants only)
Please Contact us to discuss your application.




SKU THB-3000
Brand Time
Shipping Weight 90.0000kg
Shipping Width 0.400m
Shipping Height 0.800m
Shipping Length 0.600m
Shipping Cubic 0.192000000m3
