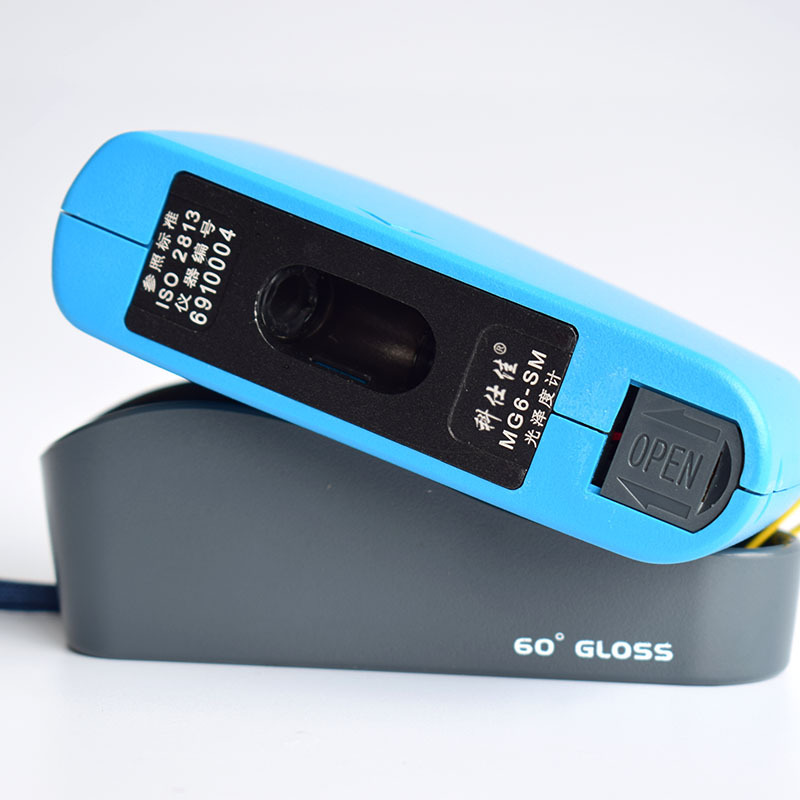

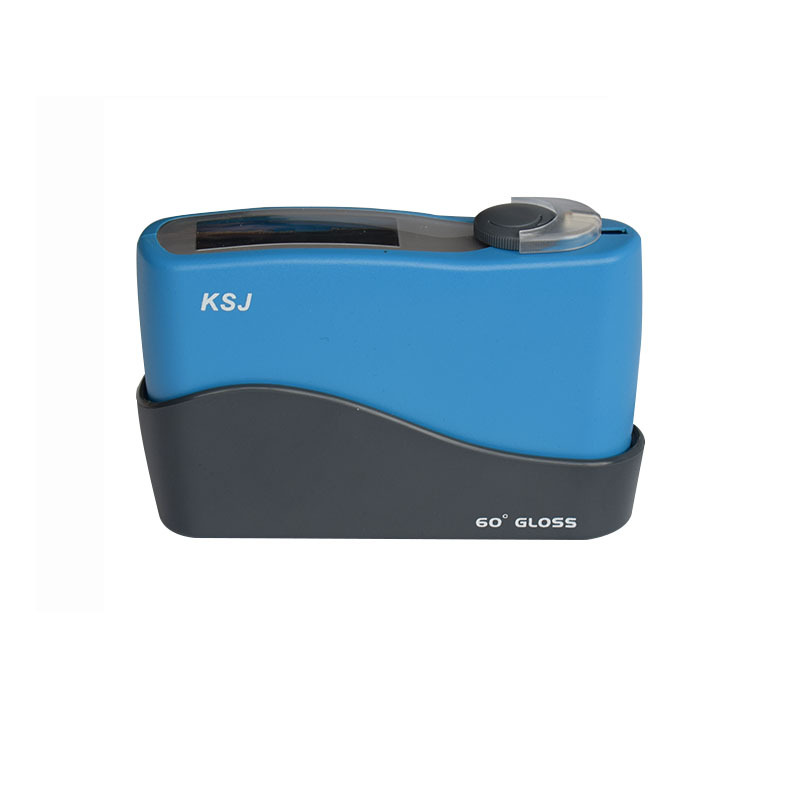

MG6-SM from KSJ Institute of Photoelectrical Instruments is a gloss meter used to measure an extended range of Gloss up to 999 GU. Use for highly refelctive materials. The angle of incidence is 60° and it is used to measure materials such as polished metals, marble, granite, polishing brick and tiles etc.  One touch operation is simple and the MG6-SM includes a reference plate for self calibration.


  • Small, smart, stable
  • Wide range for highly reflective surfaces (metals etc)
  • Single battery
  • Calibration knob protector


Range 0~999 GU
Indication Error ± 2
Measuring Area 20 x 10 mm
Incidence Angle 60°
Dimensions 123 x 38 x 65mm
Weight 300g
Power Supply 1 x AA Battery



Brand KSJ
