The Starr FGD series motorized, digital test stand is designed for users requiring accurate and repeatable force load application; which can be programmed with controlled output.

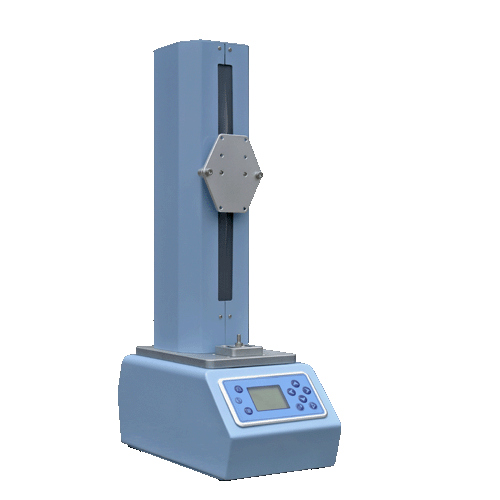

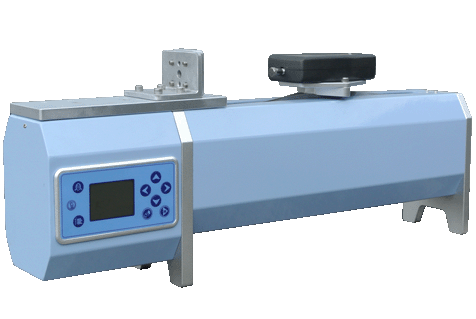

Available in either Vertical (-VTS) or Horizontal (-HTS) orientation to best suit your specifc testing requiement. They both have the same features and technical specification which integrate seamlessly with our Starr FGD-series digital force gauges.

Typical applications include tension and compression testing in a controlled manner. i.e. for production line, laboratory QA analysis and fit-for-purpose sampling.

As this is a digital unit, it is fully programmable for user settings such as:

  • Speed
  • Stroke
  • Load-based limits and more

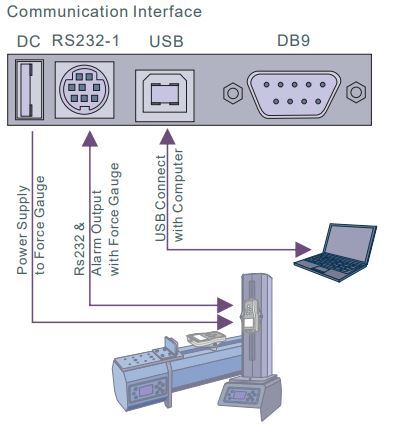

Through connectivity with the FGD force gauge the data can be stored into the force gauge* (sold separately) memory, or shown live on a computer screen, or output directly to a computer via the USB or RS-232C interface.

The Stand is specifically designed and setup for use with our Starr FGD series digial force gauge; however the stud mounting pattern is the same as other major brand force gauges as well.



* Please note, the force gauge is not included and needs to be ordered separately .



If you require further assistance with selecting the best option that suits, then please contact us.



SPECIFICATIONS:

MODEL FGD-VTS FGD-HTS
Capacity 65 Kg (650N, 140lb/f)
Max Stroke 220 mm
Speed 0.6 ~ 12 mm/sec (adjustable)
Resolution 0.1mm
Accuracy ± 0.3mm
Operation Modes Manual, Program, Demo, Locating Move
Protection Position, Force, Locked-Rotor, Power
Program 3-stage, displacement-based, force-based
Outputs USB-B
Inputs Set-point, RS232 (from gauge)
Power 240VAC, 1A

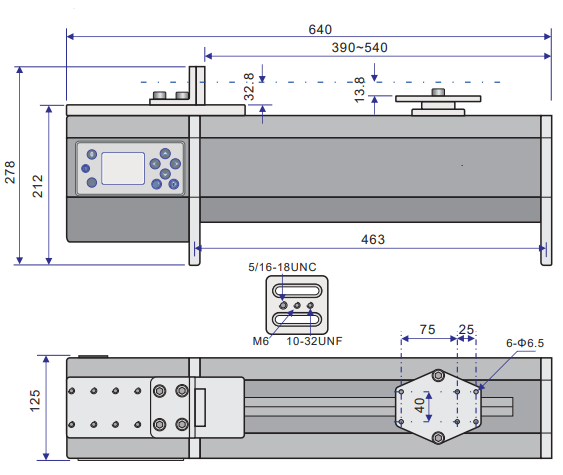

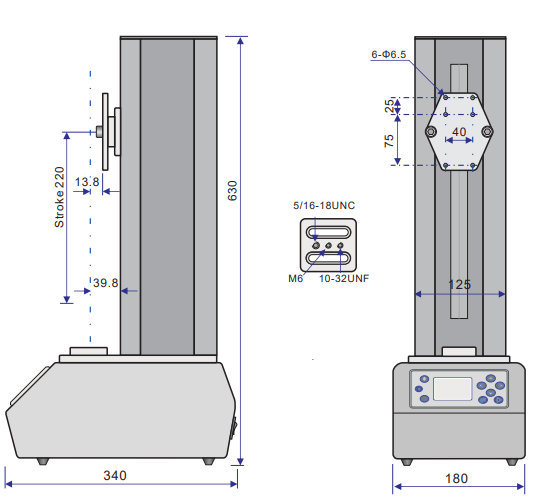

Dimensions (mm) 340L x 180W x 630H 640L x 125W x 278H
Weight 15Kg 13Kg



(FGD-MotorisedStand)

SKU FGD-MotorisedStand
Brand STARR INSTRUMENTS by Test-Equip
Shipping Weight 18.0000kg
Shipping Width 0.450m
Shipping Height 0.750m
Shipping Length 0.300m
Shipping Cubic 0.101250000m3
