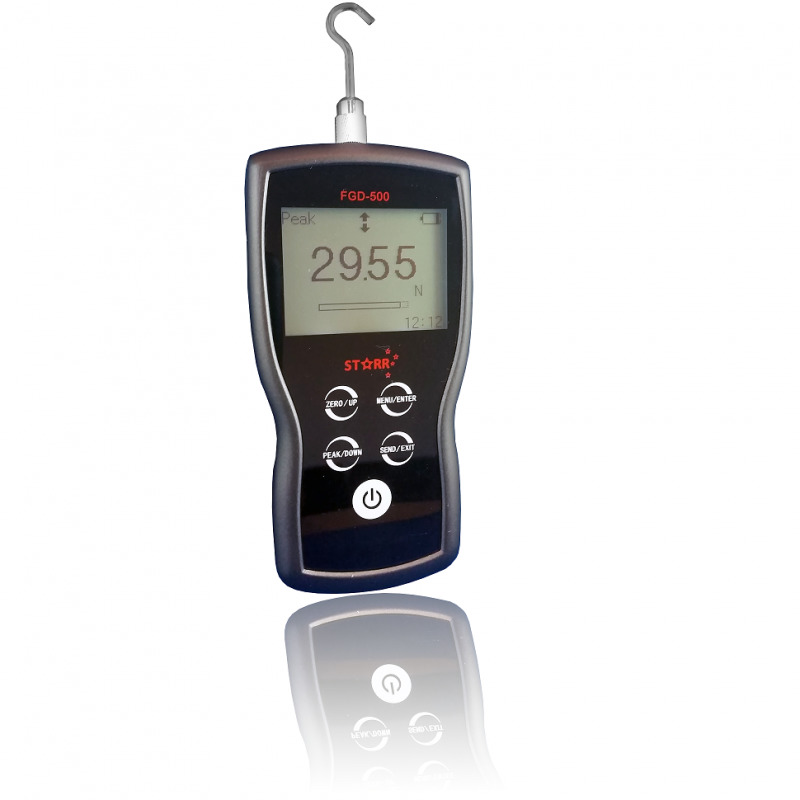

Digital Force Gauge - The FGD series by Starr Instruments is designed to be used for testing tension and compression force in a wide range of industrial applications throughout Australian industry.

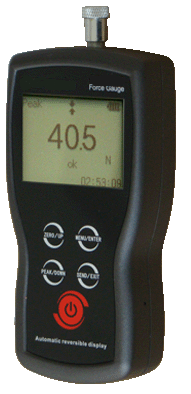

Built with a metal casing for durability and with a large auto-reversible Liquid Crystal display; the FGD series uses an integrated S-beam load cell to measure the applied force in both push and pull directions.
It has touch-sensitive buttons for easy operation and is fitted with an overload protection system consisting of an audible and visual alarm to reduce the chance of misuse and damage to the load cell.
A large internal memory of 1,000 records provides the user with data collection capabilities. The FGD has the ability to connect to your PC directly via USB for live recording or to download the data memory for further reporting.
It can be used for manual handling testing and OH&S; to determine safe work load limits when pushing and or pulling materials handling equipment such as pallet trucks, lift trucks, trolleys, bins, fire doors etc. It is also suitable for production line use for QA go/no-go checking of products.
Other uses include in the design and production testing of window and door fixtures (WSD), latches, levers; etc. Further uses include with FMCG, plus food and beverage packaging manufacture, food and produce firmness, pharmaceutical, automotive OEM and many more.
For further assistance please contact us
FEATURES:
• Compact, ergonomic body with rugged black anodized coating
• 1,000 entry internal data logger and software for output
• Auto-orientation display screen (switches instantly when gauge is inverted)
• Visual and audible overload protection alarm
• User adjustable alarm low/high limit setting
Standard Delivery Kit Includes:
- Force Gauge

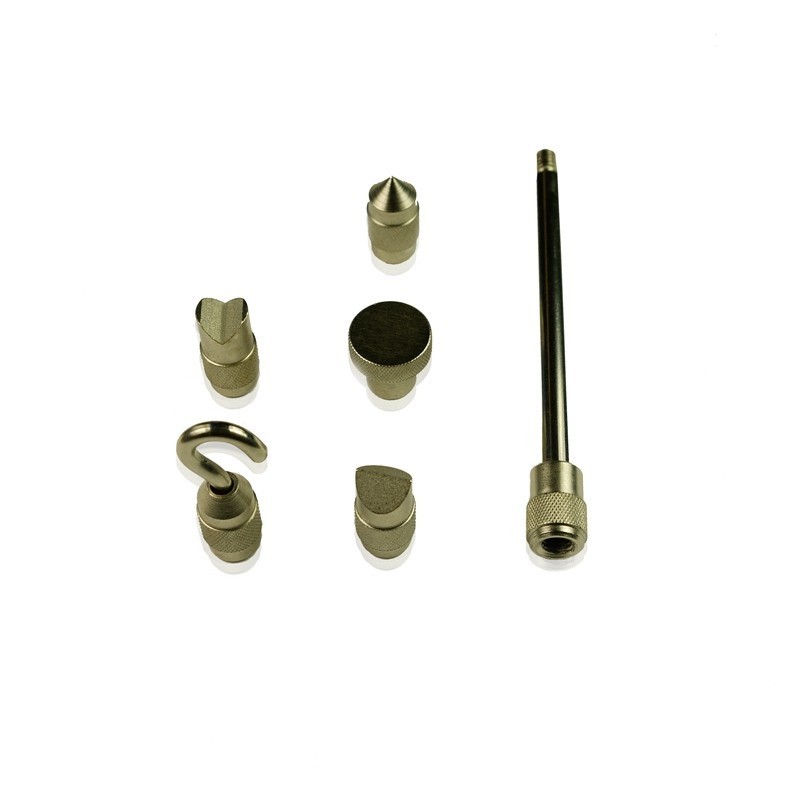

- 6 standard push/pull attachments (hook*, flat, chisel, cone, v-notch anvil and 80mm extension rod)
- USB charging/data cable
- Mains AC adapter
- Factory calibration certificate
- User manual
* FGD-1000N model uses a solid ring (eye bolt) attachment as standard, instead of a hook attachment for tensile testing for user safety at high loads.
Combine with our optional T-bar handle (FGD-Handle) for manual handling and OH&S, or a bench test stand to enable consistent load application for highly repeatable, accurate production line testing.
SPECIFICATIONS:
Accuracy |
± 0.2% F.S. |
Selectable Units |
N, gf, kgf, ozf, and lbf. (Selectable) |
Display |
LCD with LED Backlight |
Overload Capacity |
120% F.S. |
Measurement Mode |
Track, Peak, Auto-Peak |
Sampling Rate |
1000 Hz |
Memory |
1000 data |
Power |
Ni-MH rechargeable batteries |
Battery Life |
Approx. 20 hours per charge |
Charger/Adaptor |
Universal USB charger, Input:110~240VAC |
Outputs |
USB, set point output |
Dimensions |
160 x 73 x 34mm |
Weight |
0.7 kg |
Capacity (Range) Resolution: (Accuracy: +/- 0.2% F.S.)
MODEL |
mN |
N |
gf |
Kgf |
Ozf |
lbf |
|
FGD-50 |
Capacity |
50000 |
50.000 |
5000.0 |
5.0000 |
180.00 |
11.000 |
|
Resolution |
5 |
0.005 |
0.5 |
0.0005 |
0.05 |
0.001 |
FGD-100 |
Capacity |
- |
100.00 |
10000 |
10.000 |
350.0 |
22.000 |
|
Resolution |
- |
0.01 |
1 |
0.001 |
0.1 |
0.005 |
FGD-200 |
Capacity |
- |
200.00 |
20000 |
20.00 |
700.0 |
44.00 |
|
Resolution |
- |
0.05 |
5 |
0.005 |
0.1 |
0.01 |
FGD-500 |
Capacity |
- |
500.00 |
50000 |
50.000 |
1800.0 |
110.00 |
|
Resolution |
- |
0.05 |
5 |
0.005 |
0.5 |
0.01 |
FGD-1000 |
Capacity |
- |
1000.0 |
- |
100.00 |
3500 |
220.00 |
|
Resolution |
- |
0.1 |
- |
0.01 |
1 |
0.05 |
(FGD-Series)
SKU | FGD-Series |
Brand | STARR INSTRUMENTS by Test-Equip |
Shipping Weight | 1.6000kg |
Shipping Width | 0.350m |
Shipping Height | 0.120m |
Shipping Length | 0.150m |
Shipping Cubic | 0.006300000m3 |
