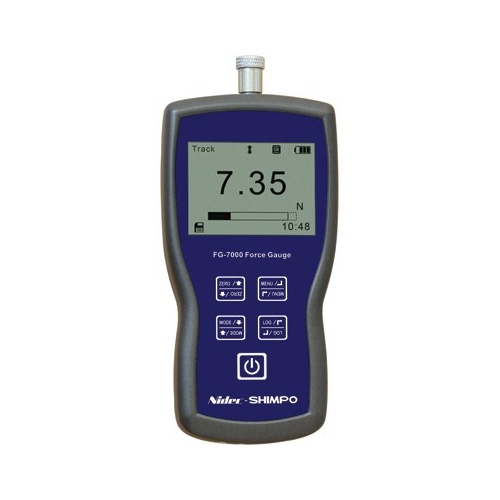

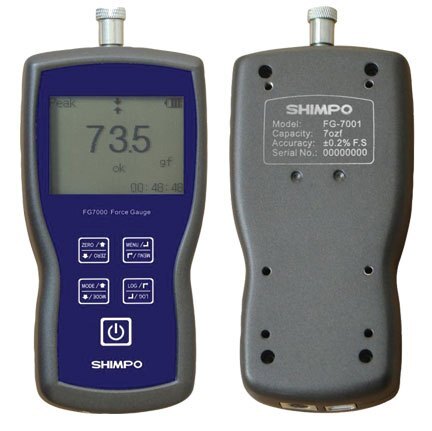

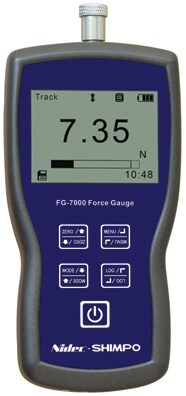

FG-7000 series is a high resolution and high accuracy digital force gauge from Nidec Shimpo, designed for use in a wide range of industrial applications.

The FG-7000 is loaded with user functions, which allows you to program multiple testing set-ups. Including the ability to log, record and output the data to existing equipment systems (through the comparator function), or to the included EDMS software package for detailed analysis and reporting.

Data acquisition can be logged manually by the push of a button, or set to continuous at user defined time intervals. Data can also be viewed on screen in user definable groups making it easy to filter for large test data sets.


They feature 3 main test modes:

  • Peak records the maximum reading sensed during the test
  • Tracking - for live readings
  • Preset - which activates user defined high and low limit set points


Like most of our force gauges, the FG-7000 uses a precision integral S-beam load cell to measure the applied force in both tension and compression stroke. It has a unique touch-sensitive keypad for easy operation and is fitted with an overload protection system with an audible warning and visual bar graph alarm to reduce the chance of misuse and damage.

This powerful, versatile force gauge can be used for OH&S manual handling testing, inwards goods QC, finished goods testing, R&D or almost any force testing requirement you have.


• Rugged, ergonomic body casing
• 1,000 reading data logger and EDMS software for output
• Reversible display (switches when gauge is inverted)
• Comparator output function for system integration
• Programmable Low and high alarm limit setting

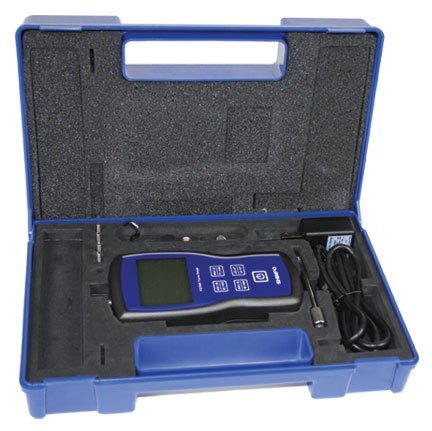

Standard Delivery Kit Includes:

  • Force Gauge
  • 6 standard push/pull attachments (hook, flat, chisel, cone, v-notch anvil and 80mm extension rod)
  • USB charging/data cable
  • Mains AC adapter
  • Factory calibration certificate
  • User manual




 ± 0.2% F.S.

 Selectable Units

 N, gf, kgf, ozf, and lbf. (Selectable)


LCD with LED Backlight

 Overload Capacity

 120% F.S.

 Measurement Mode

 Track or Peak

 Sampling Rate

 2000 Hz


 1,000 records


 Ni-MH rechargeable


 Universal USB charger


 160 x 73 x 34mm


 0.75 kg



Capacity (Range)  Resolution: (Accuracy: +/- 0.2% F.S.)






FG-7003 Capacity 10.000 1.0000 35.00 2.2000
  Resolution 0.001 0.0001 0.01 0.0005
FG-7005 Capacity 50.000 5.0000 180.00 11.000
  Resolution 0.005 0.0005 0.05 0.001
FG-7006 Capacity 100.00 10.000 350.0 22.000
  Resolution 0.01 0.001 0.1 0.005
FG-7007 Capacity 200.00 20.00 700.0 44.00
  Resolution 0.05 0.005 0.1 0.01













FG-7009 Capacity 1000.0 100.00 3500 220.00
  Resolution 0.1 0.01 1 0.05




SKU FG-7000
Brand Shimpo
Shipping Weight 1.3000kg
Shipping Width 0.350m
Shipping Height 0.100m
Shipping Length 0.150m
Shipping Cubic 0.005250000m3
