FGD-S series Digital Force Gauge is designed to be used in a wide range of industrial tension and compression applications throughout Australian industry.

It can be used for manual handling testing and OH&S; to determine safe work load limits when pushing and or pulling materials handling equipment such as pallet trucks, lift trucks, trolleys, bins, fire doors etc. It is also suitable for production line use for QA go/no-go checking of products.

Other uses include in the design and production testing of window and door fixtures (WSD), latches, levers; etc.  Further uses include with FMCG, plus food and beverage packaging manufacture, food and produce firmness, pharmaceutical, automotive OEM and many more.

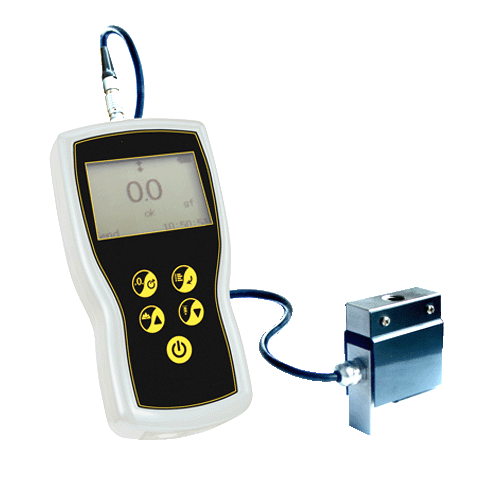

Built in a metal casing for durability and with a large auto-reversible Liquid Crystal display; the FGD series uses an integral load cell to measure the applied force in both push and pull directions. It has touch-sensitive buttons for easy operation and is fitted with an overload protection system consisting of an audible and visual alarm to reduce the chance of misuse and damage. A large internal memory of 1000 entries offers users the ultimate in recording capabilities with the ability to connect to your PC directly via USB for live recording or to download the data memory.

For further assistance please contact us



FEATURES:

  • Remote external load cell
  • Compact, ergonomic body with rugged anodized coating and touch sensitive keypad
  • Data logger and free software for output
  • Auto-orientation display screen (switches when gauge is inverted)
  • Visual and audible overload protection alarm
  • User adjustable alarm limit setting



Standard Delivery Kit Includes:

  • Force Gauge
  • Load cell sensor
  • USB charging/data cable with mains AC adapter
  • Factory calibration certificate
  • User manual



SPECIFICATIONS:

 Accuracy

 ± 0.2% F.S.

 Selectable Units

 N, gf, kgf, ozf, and lbf. (Selectable)

 Display

LCD with LED Backlight

 Overload Capacity

 120% F.S.

 Measurement Mode

 Track, Peak, Auto-Peak

 Sampling Rate

 1000 Hz

 Power

 Ni-MH rechargeable

 Outputs

 USB, set point output

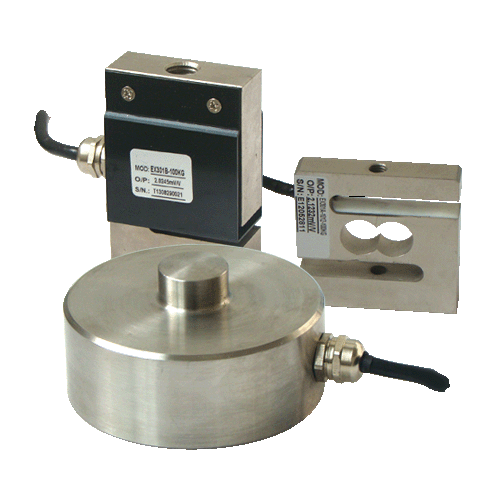

Load Sensor Capacity (Range) Resolution: (Accuracy: +/- 0.2% F.S.)

MODEL

N

Kgf

lbf

Load Cell Type

FGD-1K-S

Capacity

1000

100

220

S-beam



Resolution

0.1

0.01 0.05



FGD-2K-S

Capacity

2000

200 450 S-beam



Resolution

0.5

0.05 0.1

FGD-5K-S

Capacity

5000

500 1100 S-beam



Resolution

1

0.1 0.1

FGD-10K-S

Capacity

10000

1000 2250 S-beam



Resolution

1

0.1 0.5

FGD-10K-R

Capacity

10000

1000 2250 Ring



Resolution

1

0.1 0.5
FGD-20K-R Capacity - 2000 4500 Ring
  Resolution - 0.5 1
FGD-50K-R Capacity -   11k Ring
  Resolution -   0.001k
FGD-100K-R Capacity - - 22k Ring
  Resolution - - 0.005k
FGD-200K-R Capacity - - 44k Ring
  Resolution - - 0.01k







(FGDS-Series)

SKU FGDS-Series
Brand STARR INSTRUMENTS by Test-Equip
Shipping Weight 101.0000kg
