*** Lead time 3~4 weeks from Japan

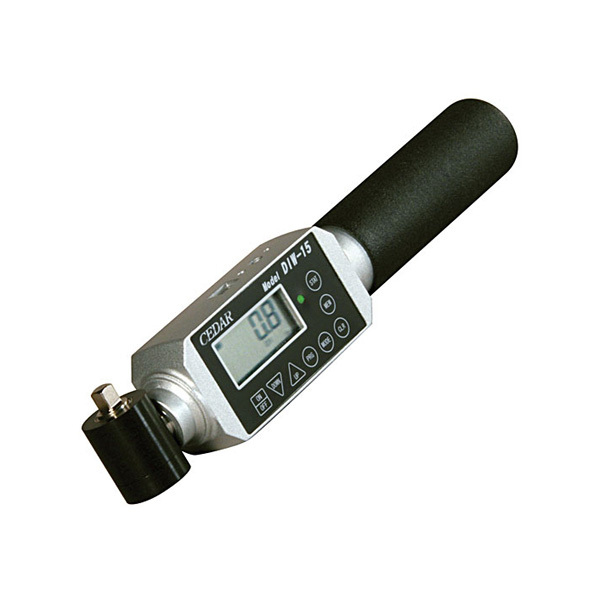

CEDAR DIW series Digital Torque Wrench. A precision digital torque measurent tool is available in four different load cell capacities of either: 15 N-m, 20 N-m, 75 N-m or 120 N-m, to best suit your specific application.

Used for verifying removal and application torque of various types of fasteners including nuts, bolts and screws. The DIW series provides consistent readings by the sensor being centered on the drive and not up the handle.

Also featured is Go / No-Go testing for easy pass/fail inspection and up to 800 records of peak data, which can be downloaded via the USB port.



FEATURES:

  • Ergonomic, light weight, rugged metal construction

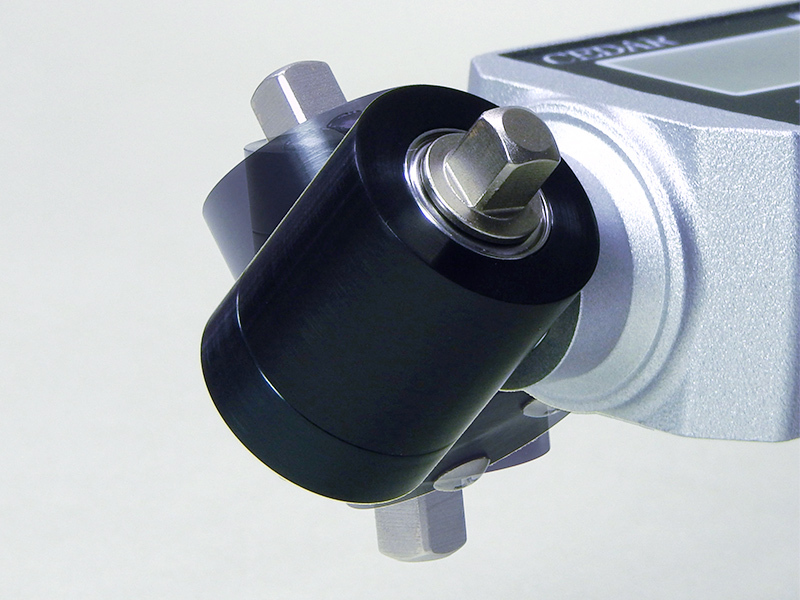

  • Wrench head swivels 300°
  • Selectable units: N-m, kgf-cm, lbf-in
  • 4 separate measurement modes (peak-peak, tracking, peak-down, real-time output)
  • High and  Low set points (for go/no-go testing)
  • Clockwise and anti-clockwise operation
  • Made in Japan


SPECIFICATIONS:

  • Accuracy ± 0.5% F.S. ±1
  • Sampling Frequency 100Hz
  • Display Frequency 5Hz
  • USB output 180 data / sec
  • Memory 800 data recall.

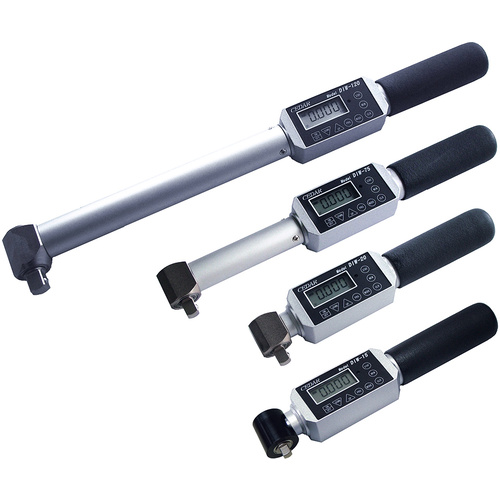

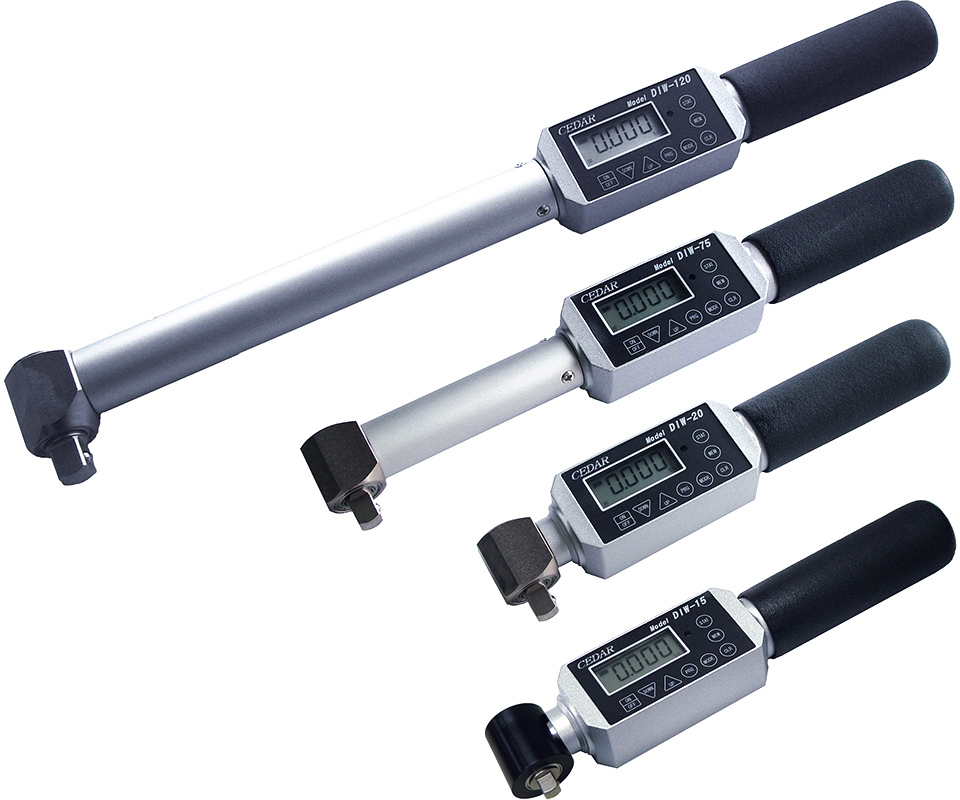

TORQUE RANGES:

Model Capacity Drive Size
DIW-15
  • 0.20 - 15 N-m
  • 2.0 - 150 kgf-cm
  • 2.0 - 130 lbf-in
 1/4"
DIW-20
  • 2.0 - 174 lbf-in
  • 0.20 - 20 N-m
  • 2.0 - 200 kgf-cm
 3/8"
DIW-75
  • 2.0 - 660 lbf-in
  • 0.20 - 75 N-m
  • 2.0 - 750 kgf-cm
 3/8"
DIW-120
  • 20 - 1040 lbf-in
  • 2.0 - 120 N-m
  • 20 - 1200 kgf-cm
 1/2"





(DIW)

SKU DIW
Brand CEDAR
