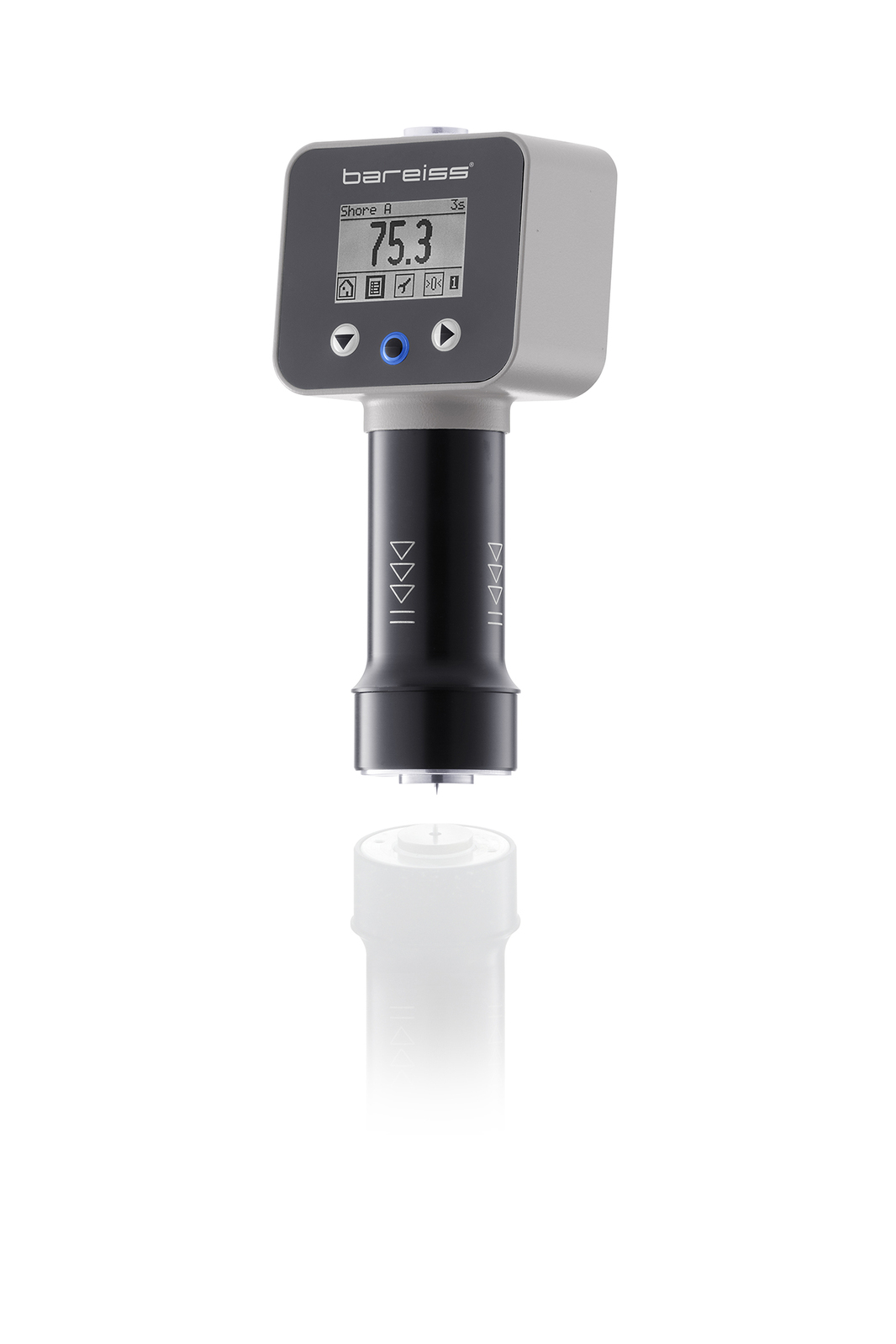

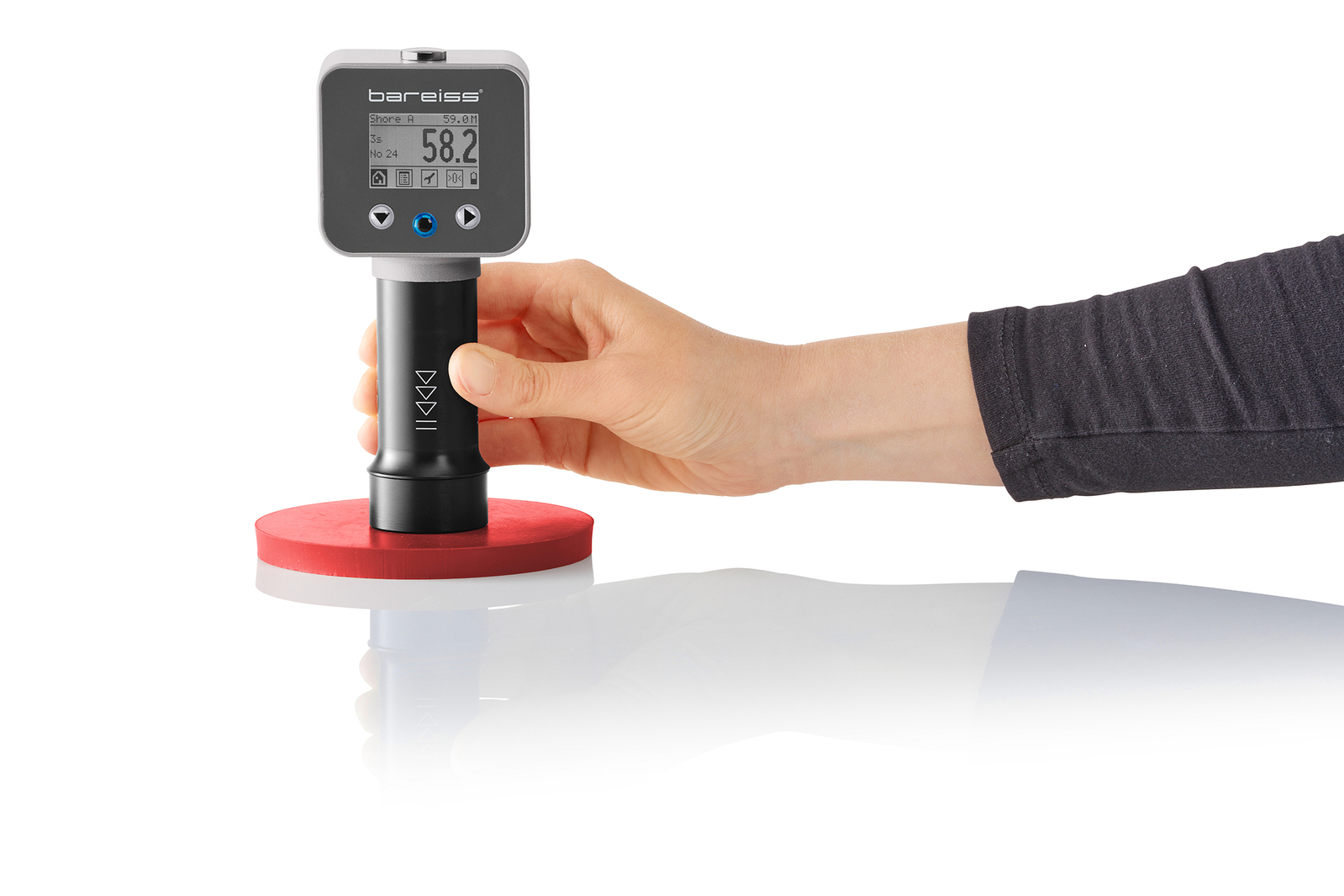

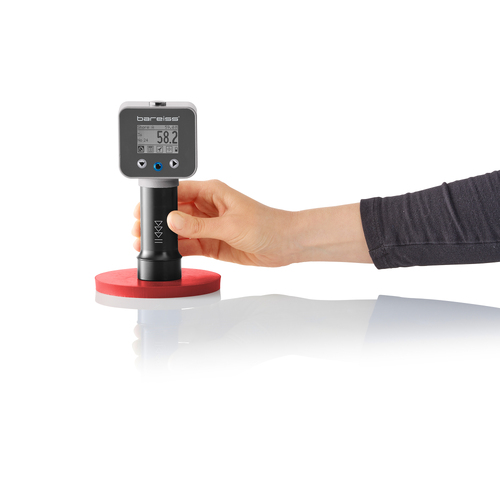

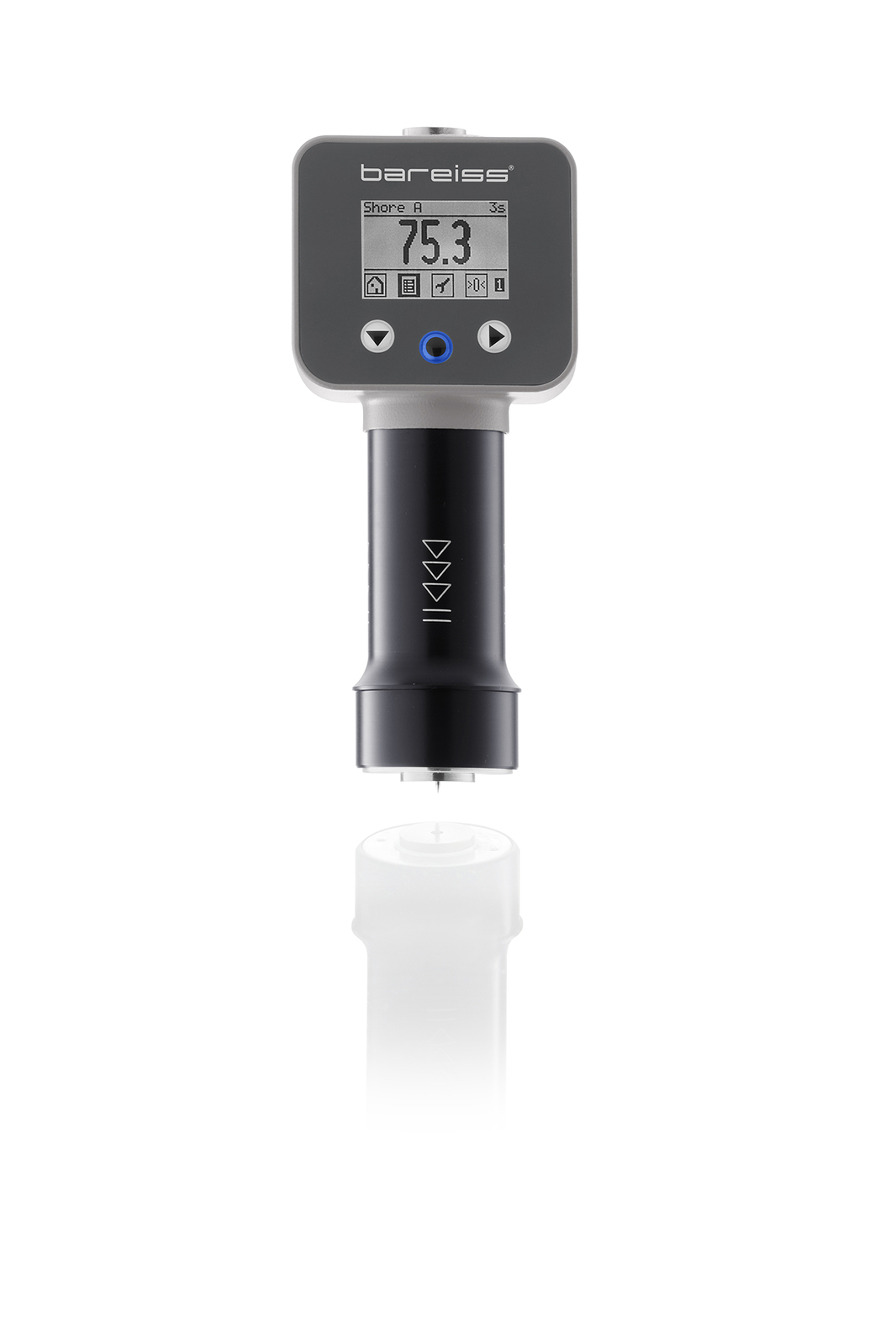

Bareiss HPE III series precision Digital handheld hardness tester for the measuring of Shore hardness, with illuminated display and integrated compression sleeve for vertical support and standard contact pressure.

These are laboratory quality instruments and are available in many different Shore scales for the testing of soft to medium hard rubber and elastomers, foam and more.

The HPE was designed for testing on flat surfaced samples with thickness of ≥ 6 mm, according to DIN ISO 48-2. This HPE III supersedes the popular HPE-II model which is now discontinued.

Strong, lightweight aluminium body casing provides user with ergonomic, stable and accurate measurement with a constant contact pressure for the highest accuracy results to 0.1 Shore.

Internal memory data storage of up to 300 results, including date and time, is stored automatically.  The saved results can be transferred via USB to your PC.



The HPE III is availalbe in two verions; Basic and Pro.

The Basic provides all features listed below, including data memory.

The Pro version also adds the following parameters:

  • temperature measurement on sample
  • measurement of ambient temperature
  • measurement of humidity



FEATURES:

  • Large backlit display
  • Time/date
  • Auto power-off
  • Constant contact pressure
  • Peak value hold
  • USB interface



Shore Scales available:

  • Shore A, A0, D, O, OO, OOO, OOO-S, E, B, C, DO, Asker C

Standards:

  • DIN ISO 48-4 / 7619, ASTM D 2240





(HPE-III)

SKU HPE-III
Brand Bareiss
Shipping Weight 0.5000kg
Shipping Width 0.160m
Shipping Height 0.040m
Shipping Length 0.070m
