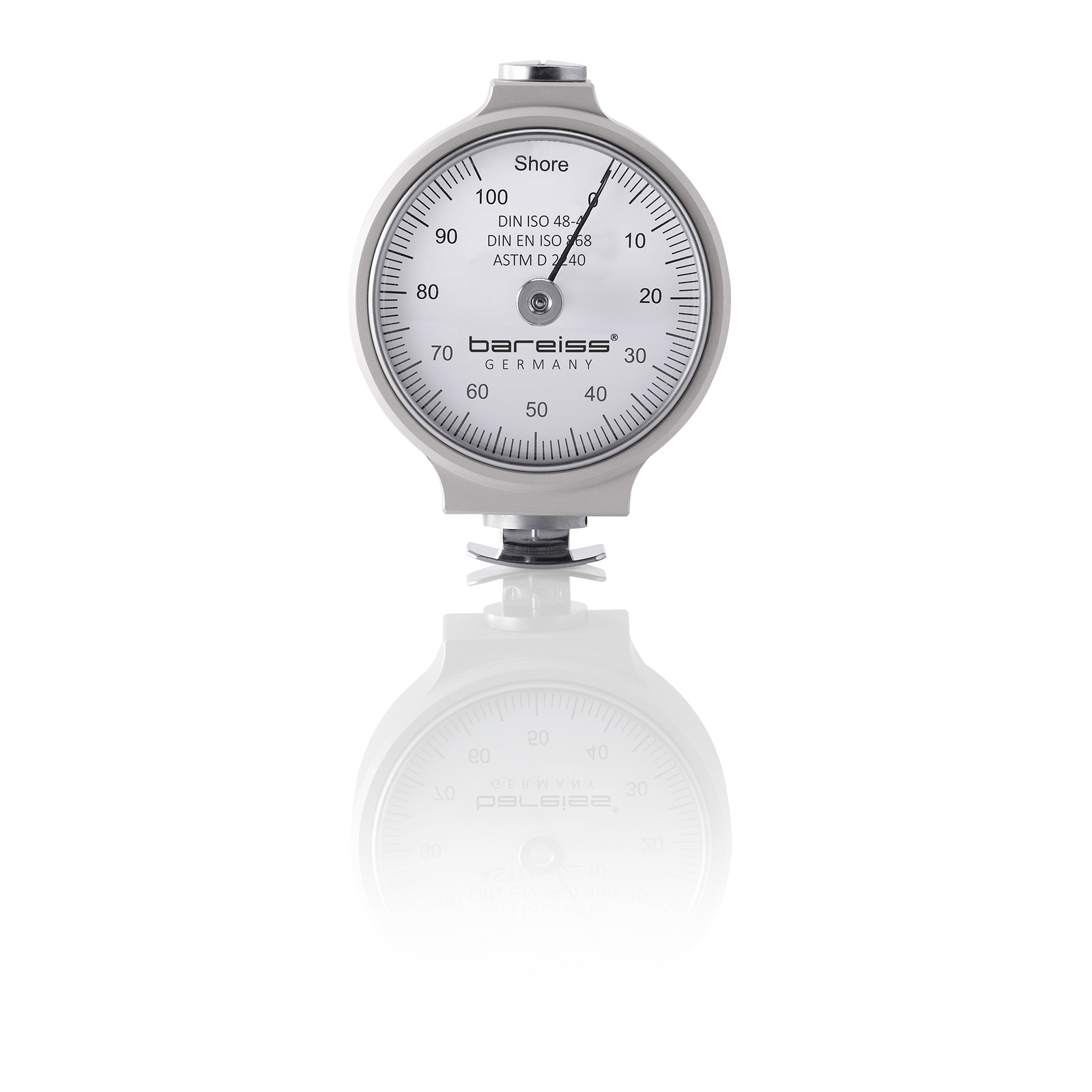

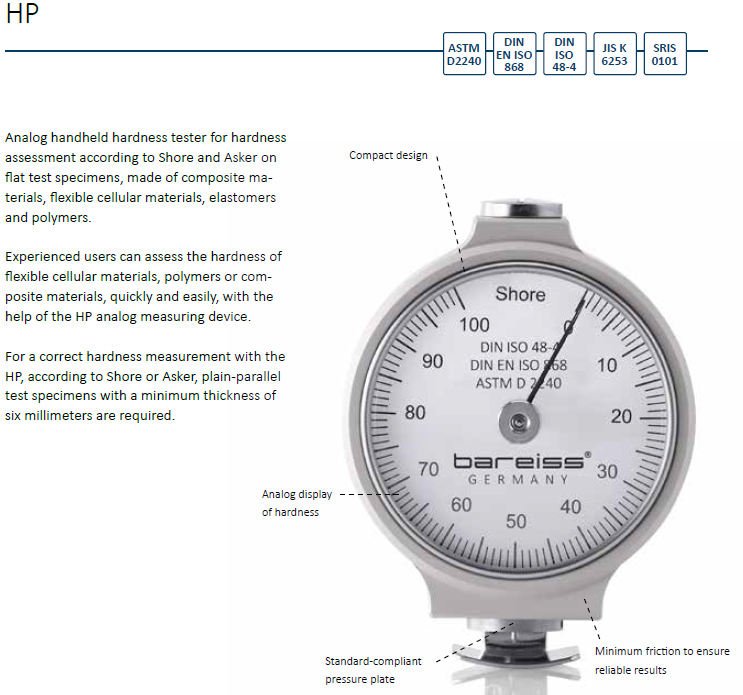

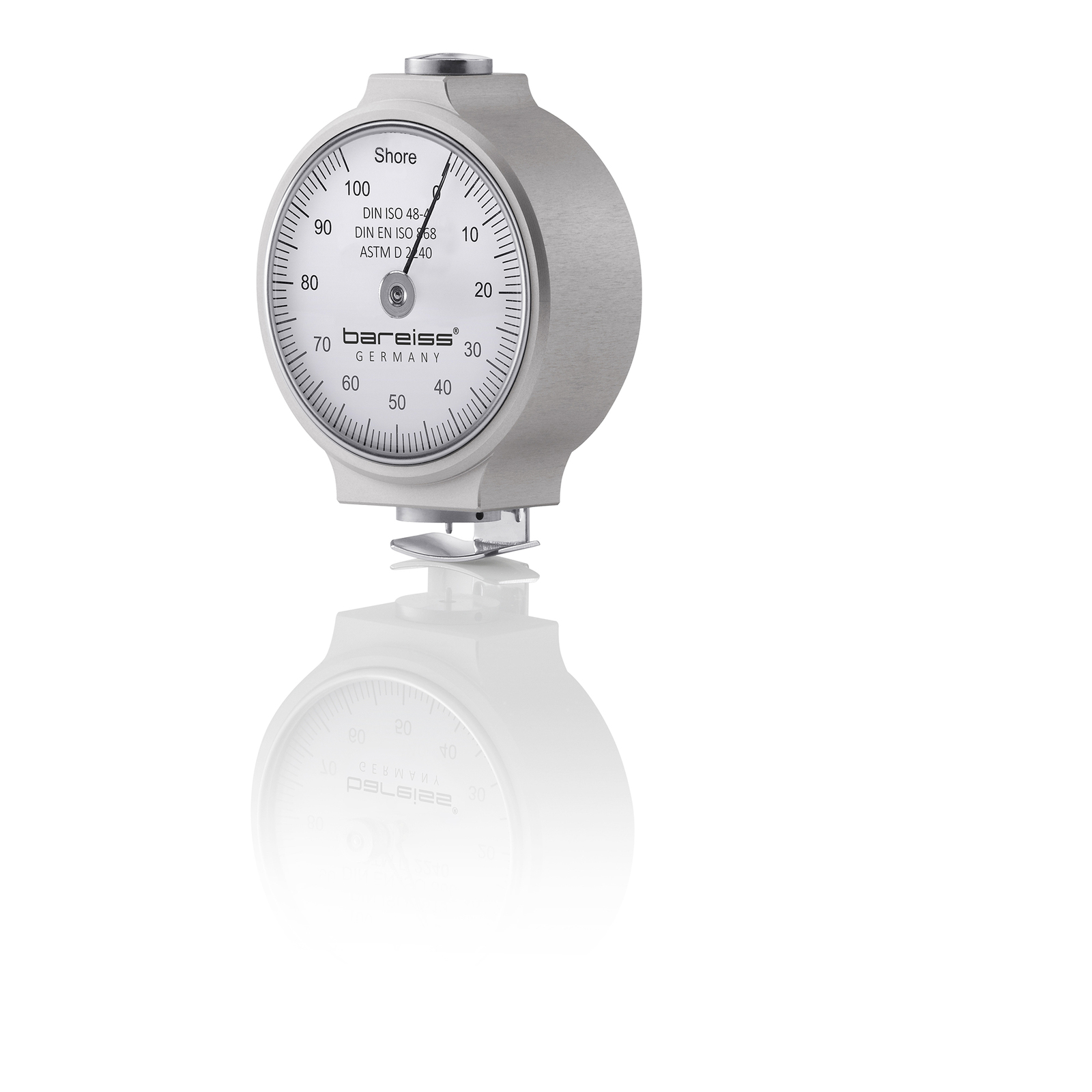

The Bareiss HP series is a precision, mechanical dial type Shore Durometer that is German made to the highest of standards since 1954.

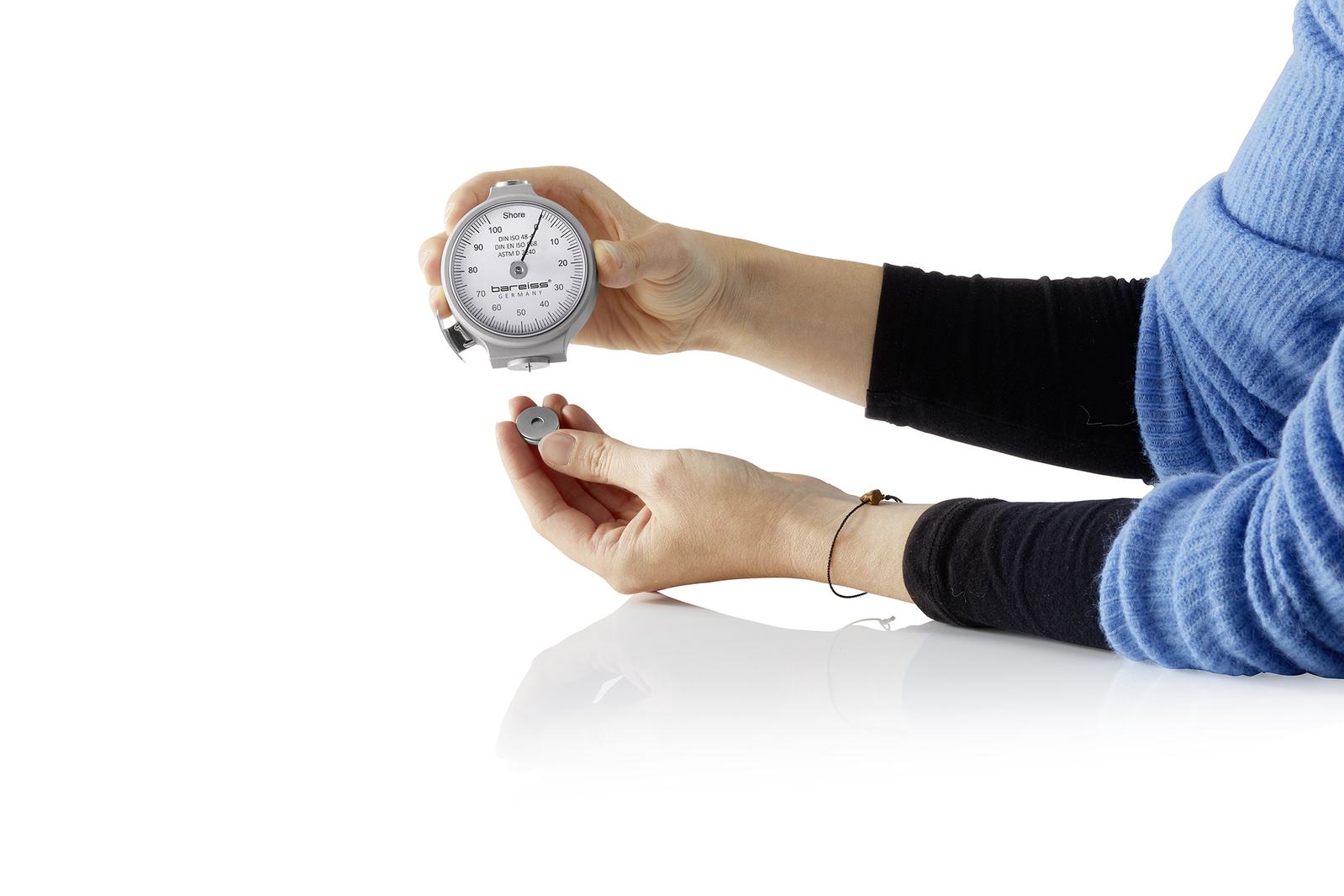

The chassis is made from aluminium and the internal workings use graphite to reduce friction.  The scales are anti-glare.  Also featured is a peak hold and a protector that slides into place to protect the foot.

Shore A scale for soft rubber, elastomers, DIN EN ISO 868 4 natural rubber products, neoprene, casting resin, polyester, soft PVC, leather, pressure rollers, etc.

The scale graduation is 0 to 100 Shore, divided in to 100 units.


Optional DkD Certification (NATA equivalent) is available on request.  *note - must be requested at time of order. Lead time 2~3 weeks.



  • Shore A
  • Scale 0 to 100
  • DIN 53505, DIN EN ISO 868
  • NF T 51-174
  • ASTM D 2240
  • ISO 7619
  • BS 903 part A 26



Model # fe00079
Brand Bareiss
