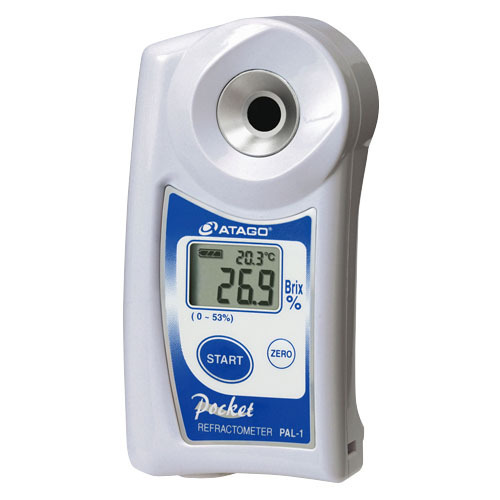

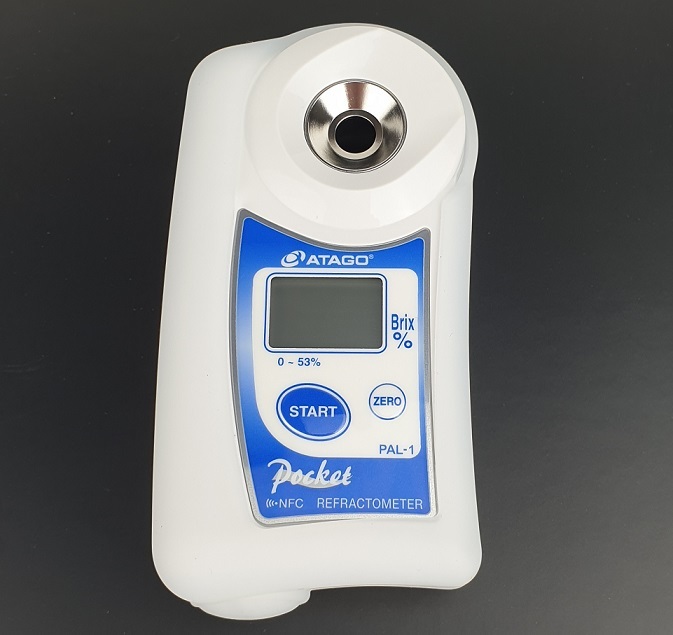

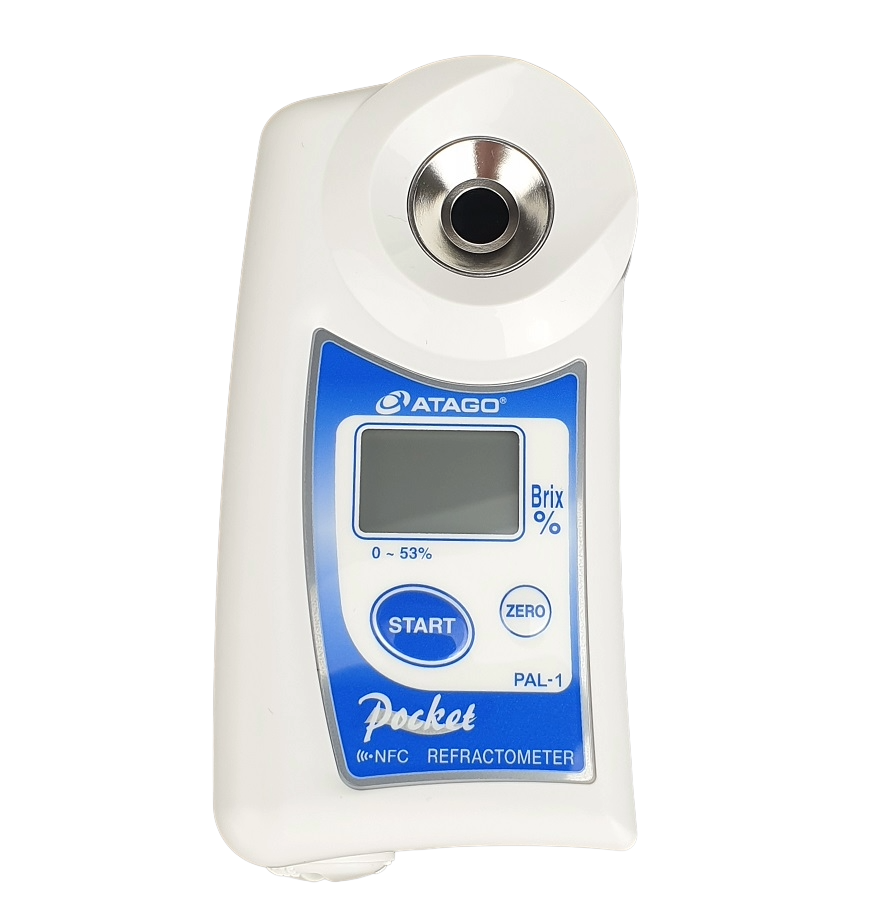

The PAL-1 Digital Refractometer from Atago Japan uses the Brix % scale to measure sugar, total soluble (dissolved) solids or TDS in aqueous solutions.


The Atago PAL-1 has a wide measuring range from 0.0% to 53.0% Brix with 0.1% resolution.


Widely used for quality control monitoring within the manufacturing process and also finished goods. The most common example of use is the determination of sugar content in fresh fruit, vegetables and juices at primary producer, market and retail levels.

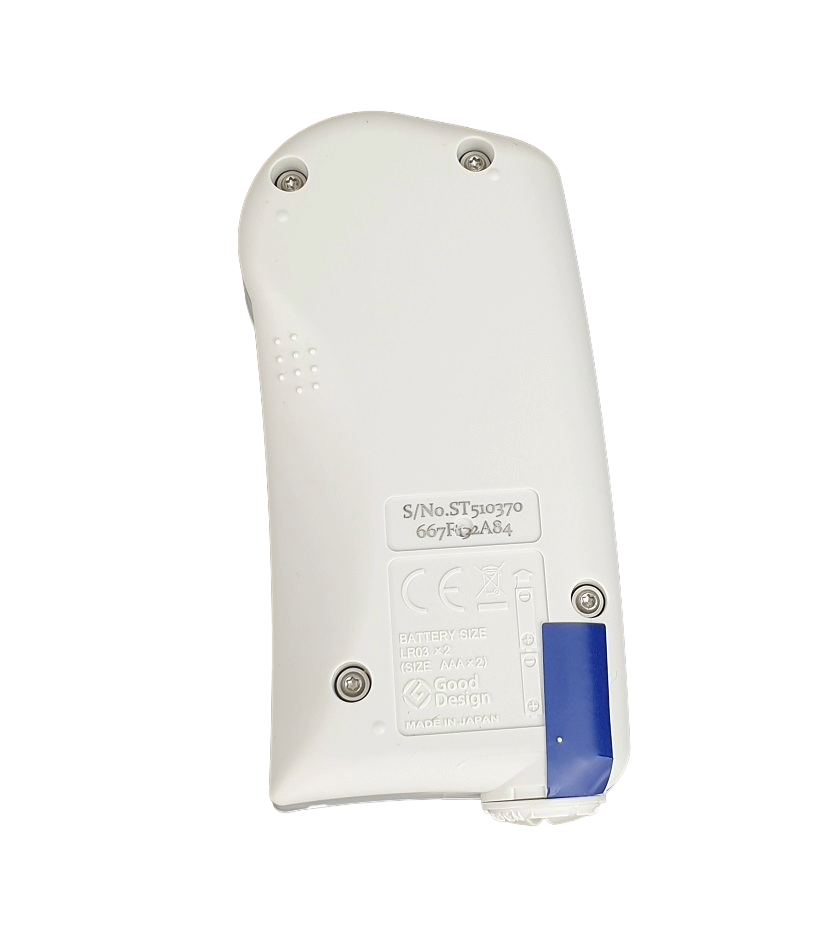

The PAL-1 "pocket" Refractometer is ultra compact and lightweight for total portability. It is IP65 rated for protection against dust and water jets, making it easy to clean up after use under running water.  It runs on 2 x AAA batteries (up to 11,000 measurements) and features Automatic Temperature Compensation "ATC" for samples of all temperatures through the use of advanced algorithms.

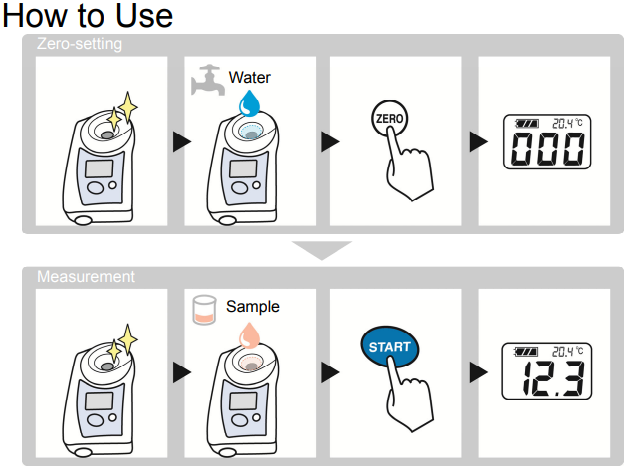

Using the PAL-1 is extremely simple with one-touch measurement.  As little as 0.3 ml (2-3 drops) sample is required for testing and results are determined quickly within 3 seconds.  Zero calibration can be completed with water.

Top quality, made in Japan to the highest standards by the leaders in refractometry with over 76 years experience.


The Atago PAL™ Series  now comes standard with Data Transmission Function using NFC(Near Field Communication) technology.

Data history can be accessed by adding PAL-NFC App to any Android devices or PC-linked USB NFC Reader.

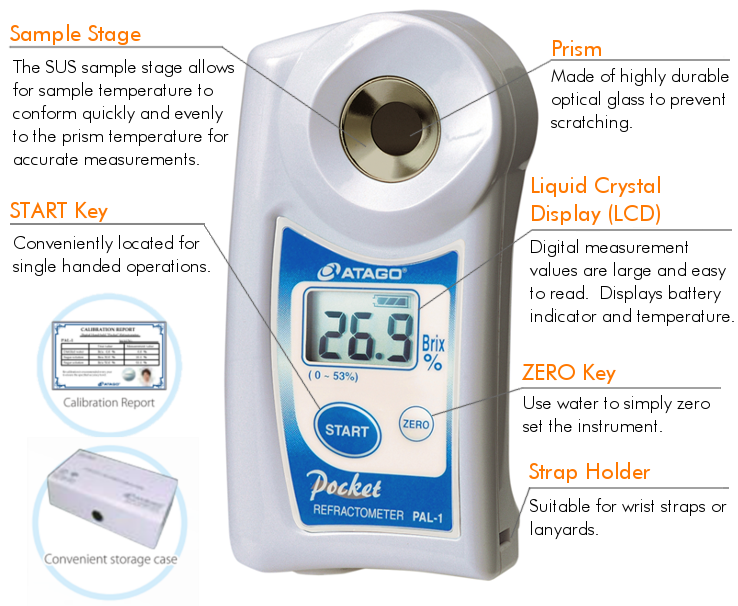

  • SUS 316L Wetted Surfaces
  • Polybutylene Terephthalate (PBT) housing
  • Backlit LCD
  • One touch operation
  • Fast measurement within 3 seconds
  • Temperature Compensation
  • IP65 water resistant
  • Ultra compact

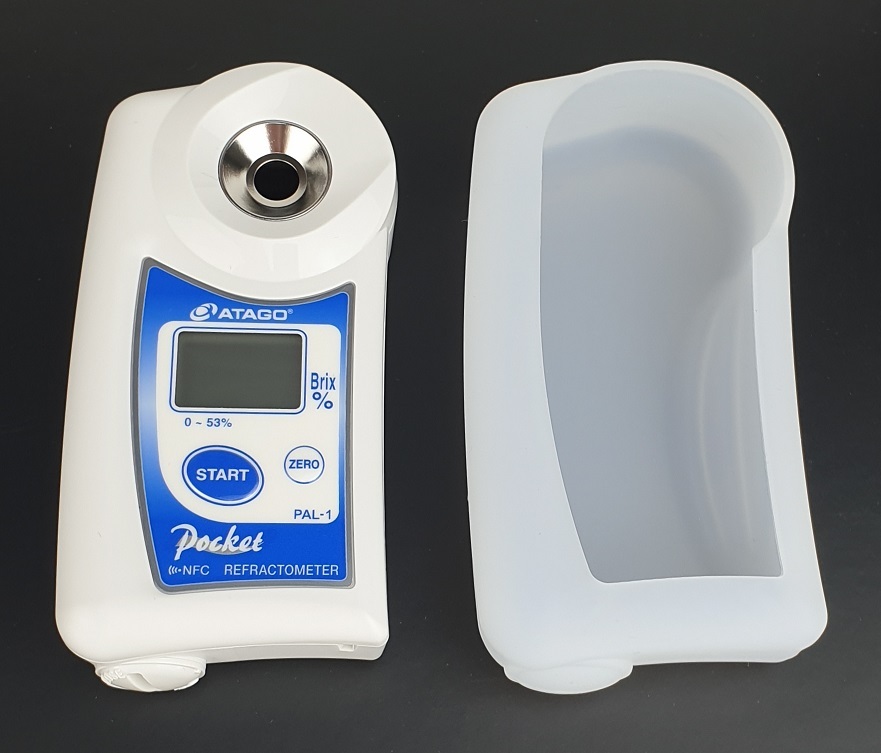

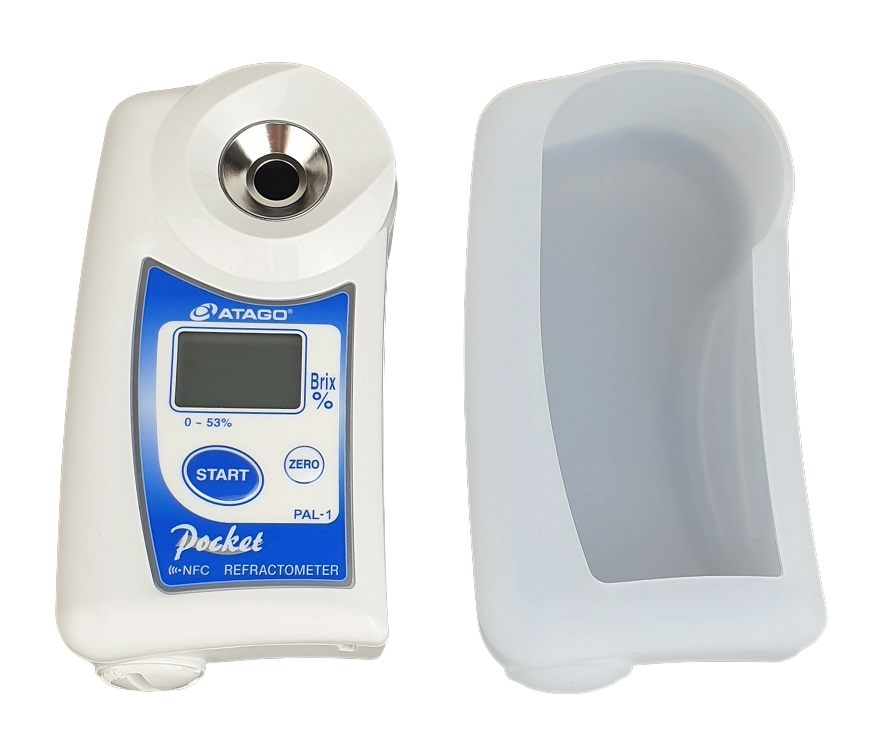

  • Optional Silicone cover (PAL-Jordan)

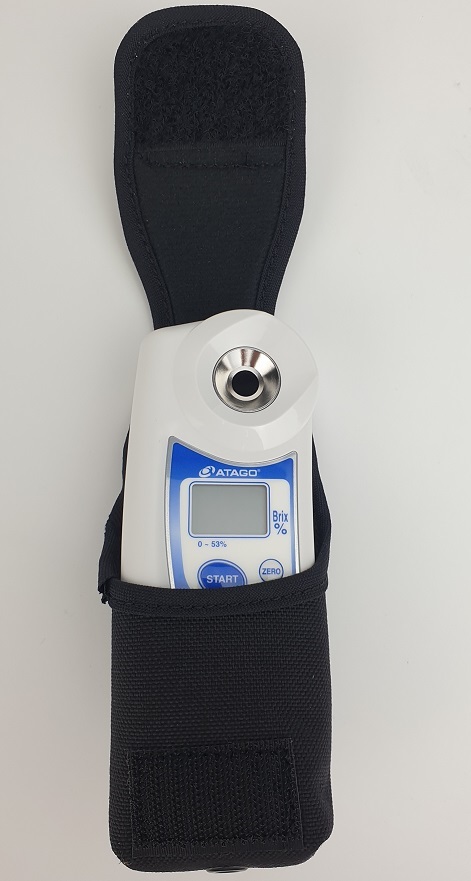

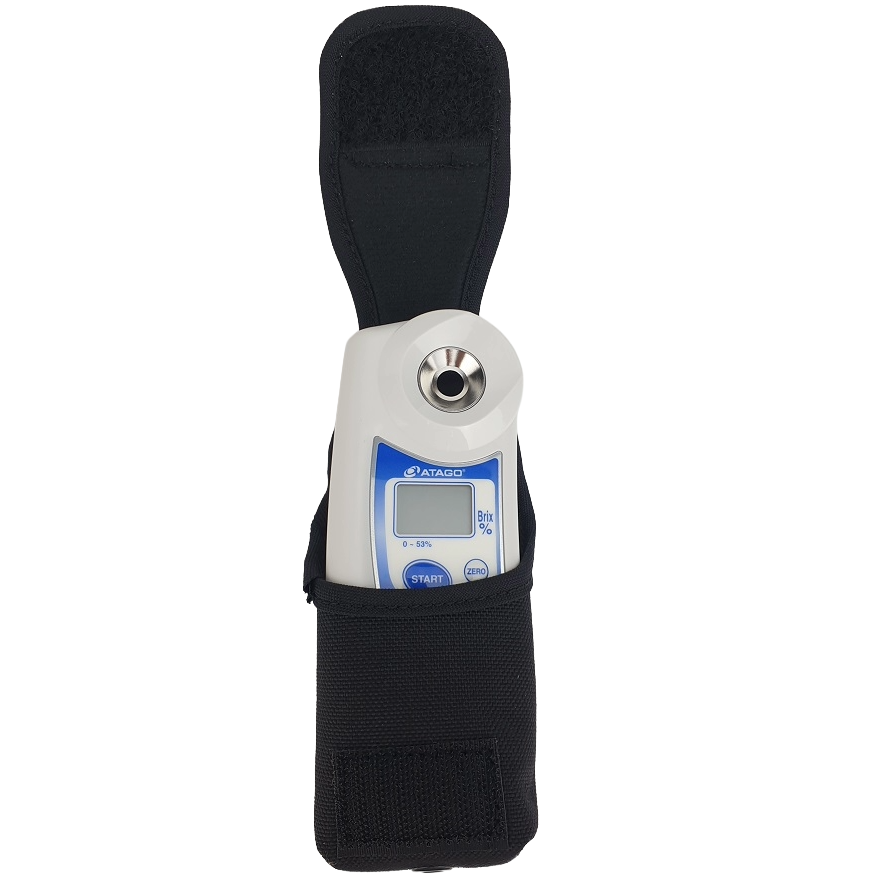

  • Optional Carry pouch (PAL-Case)


Technical Specification:

Range 0.0% to 53.0% Brix
Resolution 0.1% Brix
Accuracy ±0.2% Brix
Sample Size 0.3ml
 Size 55 x 31 x 109 mm
Weight 100 grams


24 months, when registered with Atago online

• Measures 0.0 to 53.0% Brix
• Accuracy ±0.2% Brix
• Data Transmission Function with NFC

Model # 3810
Barcode # 0700220578210
Brand Atago
Shipping Weight 0.1000kg
Shipping Width 0.055m
Shipping Height 0.109m
Shipping Length 0.031m
Shipping Cubic 0.000185845m3
Unit Of Measure ea
