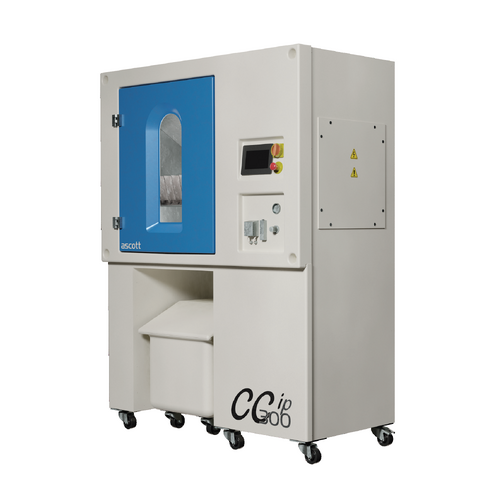

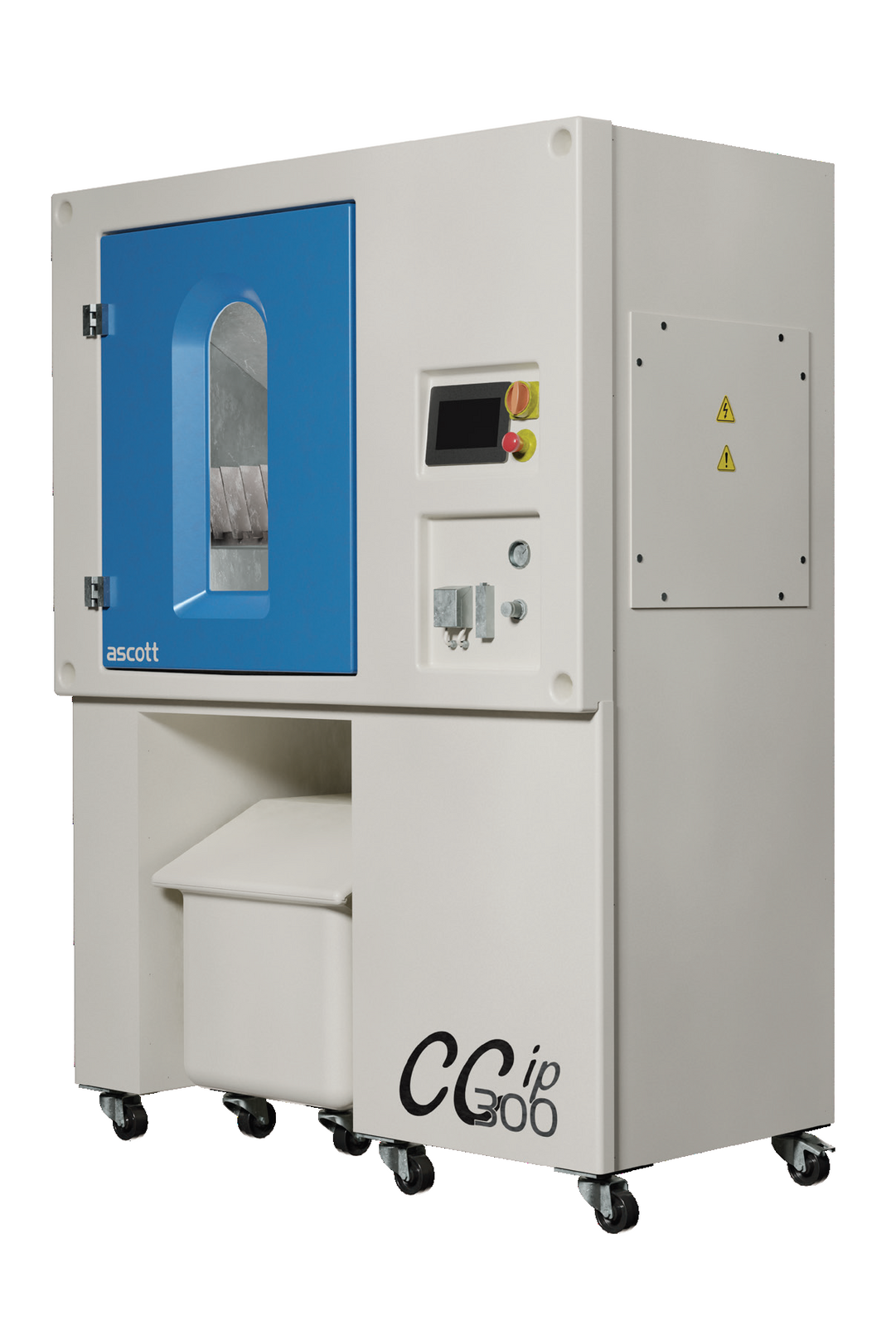

Ascott Ultra Compact Front Loading Test Chambers - Maximum Performance, Minimal Footprint.

The Ultra Compact front loading chamber range from Ascott is the perfect choice for customers who have limited floor area, and who only wish to test small or few components, in full compliance with many international test standards.

The Ultra Compact CCT Chamber complies with the following test standards:

• IEC 60068-2-52

• CCT-1, CCT-2, CCT-4

• ASTM B117

• ISO 11997-1, 6270-2, 14993, 9227

• JIS Z2371, H8502, C60068-2-11

• JASO M 609

• DIN 50 017

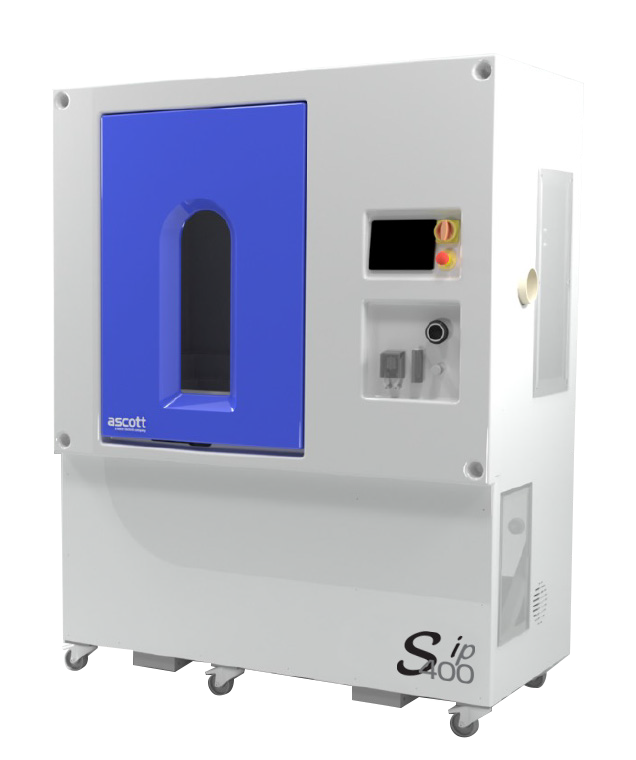

Designed for small samples low volumes, or where floorspace is at a premium, our 300 Litre and 400 Litre chambers deliver Ascott innovation in a compact footprint, with a range of additional accessories available to suit your application.

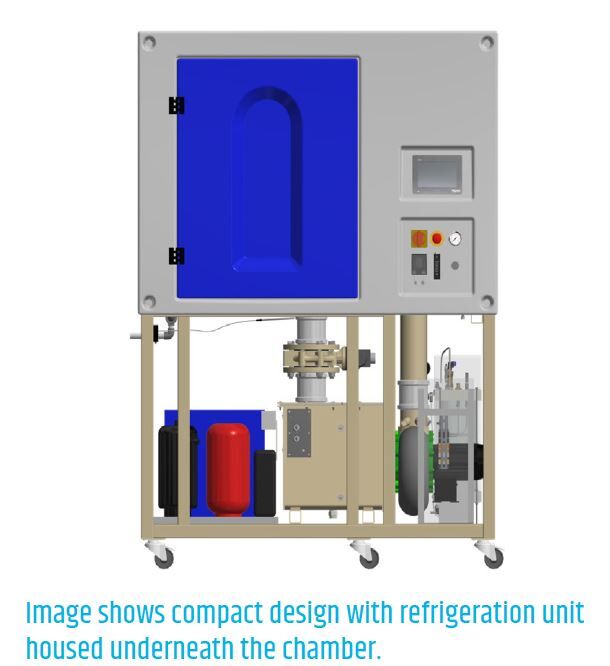

These innovative front loading chambers have an angled interior roof to prevent condensation droplets falling onto samples, giving reliable, reproducible results in testing and also offer optional cooling to -20°C (with additional refrigeration unit contained within footprint)

Available in the following models:

iS - Basic for NSS testing. Set & forget

iP - Premium for modified, 2-step (dual climate) tests, SWAAT etc.

CCiP - Cyclic testing, fully adjustable temperature & humidity etc.

Key Features:

• Front loading system for ease of loading test samples in a wide range of shapes and sizes
• Chamber designed with angled interior roof to avoid condensation droplets falling onto samples below
• Pneumatically operated door for ease of opening and closing
• High strength GRP front door with windows for viewing samples during testing
• 115Lt portable salt solution tank with wheels and an integral drain for ease of cleaning

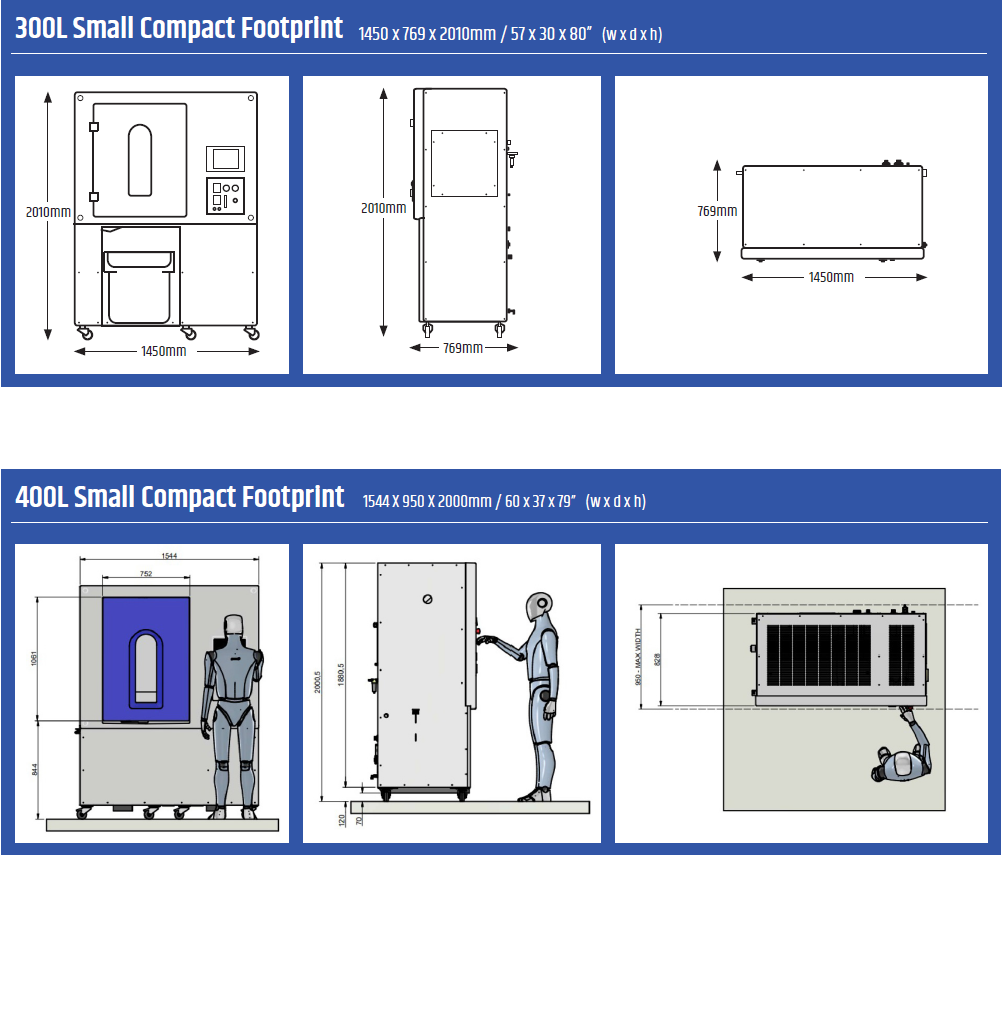

• Compact design which will pass through an 850mm wide door aperture for ease of installation

Optional Accessories:

• Data Logging Software
• Various sample racks available
• Sub-Cooling system within the chamber footprint
• SO2 Gas Dosing
• Access port(s) for external monitors

For more information, or to request a quote, please contact us
