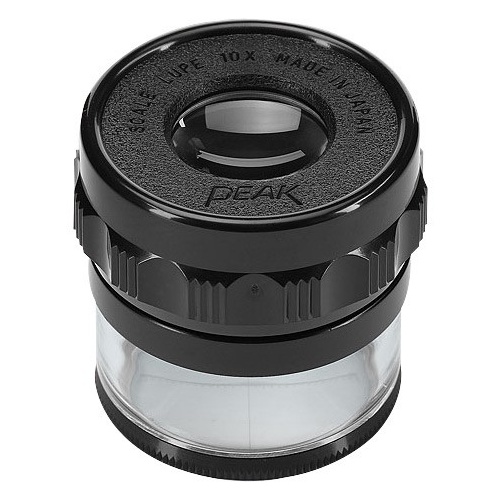

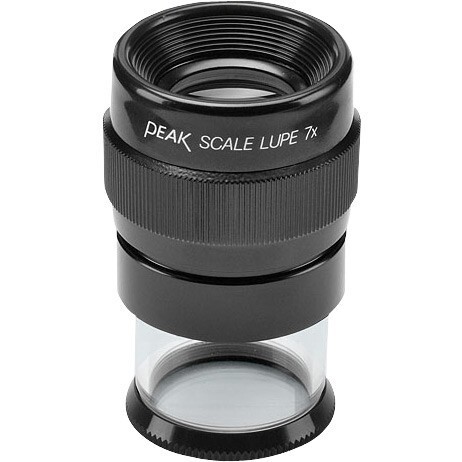

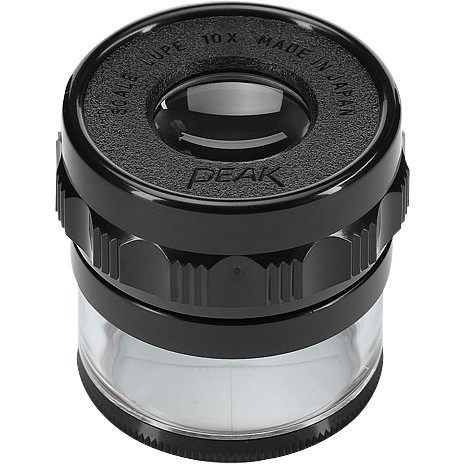

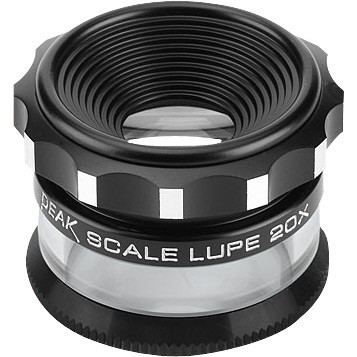

Magnifiying Scale Loupe from Peak Optics, Japan.

A range of handheld, pocket scale loupes with various magnifications available to choose from.

Each scale loupe has precision-constructed achromatic lenses (coated 4 elements, 2 groups), a photo-printed scale and focusing ring.

Also available with a wide rane of different reticles to suit almost any application

Contact us to discuss your requirements.



MODEL 1975 1983 2016 2055
MAGNIFICATION 7x 10x 15x 20x
FIELD OF VIEW 24mm 32mm 20mm 12mm
EFFECTIVE APPERTURE 19mm 20mm 13mm 12mm
DIMENSIONS 36mm x 62mm 46mm x44mm 35mm 33mm 35mm x 23mm
WEIGHT 56gm 74gm 40gm 35gm
SCALE LENGTH 20mm 30mm 14mm 8mm



Black standard White standard




SKU Scale-Loupe
Brand PEAK
